Radiator Grille Emblem/Nameplate Replacement

Radiator Grille Emblem/Nameplate Replacement

Removal Procedure

1. Remove the grille. Refer to Grille Replacement (Service and Repair) .
2. Place the grille on a clean, prepared surface.

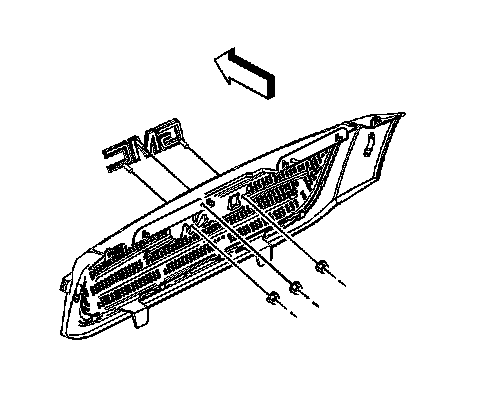

3. Remove the emblem retaining nuts.
4. Remove the emblem from the grille.

Installation Procedure




1. Install the emblem to the grille.

Notice: Refer to Fastener Notice.

2. Install the nuts that retain the emblem to the grille.

Tighten the nuts to 3 N.m (27 lb in).

3. Install the grille. Refer to Grille Replacement (Service and Repair) .
