Power Distribution Schematics

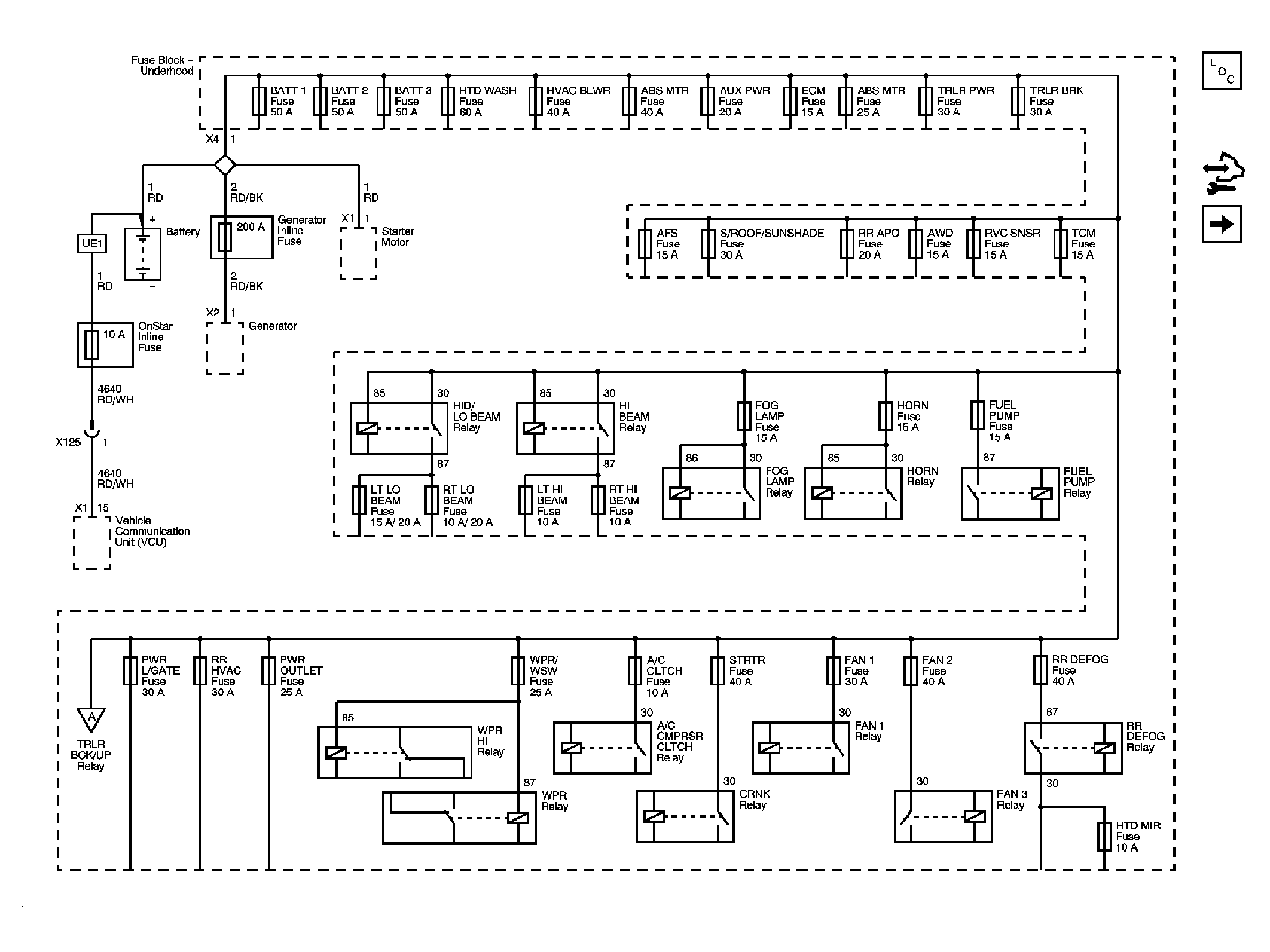

Fig 1: B+ Bus 1 of 2

Courtesy of GENERAL MOTORS CORP.

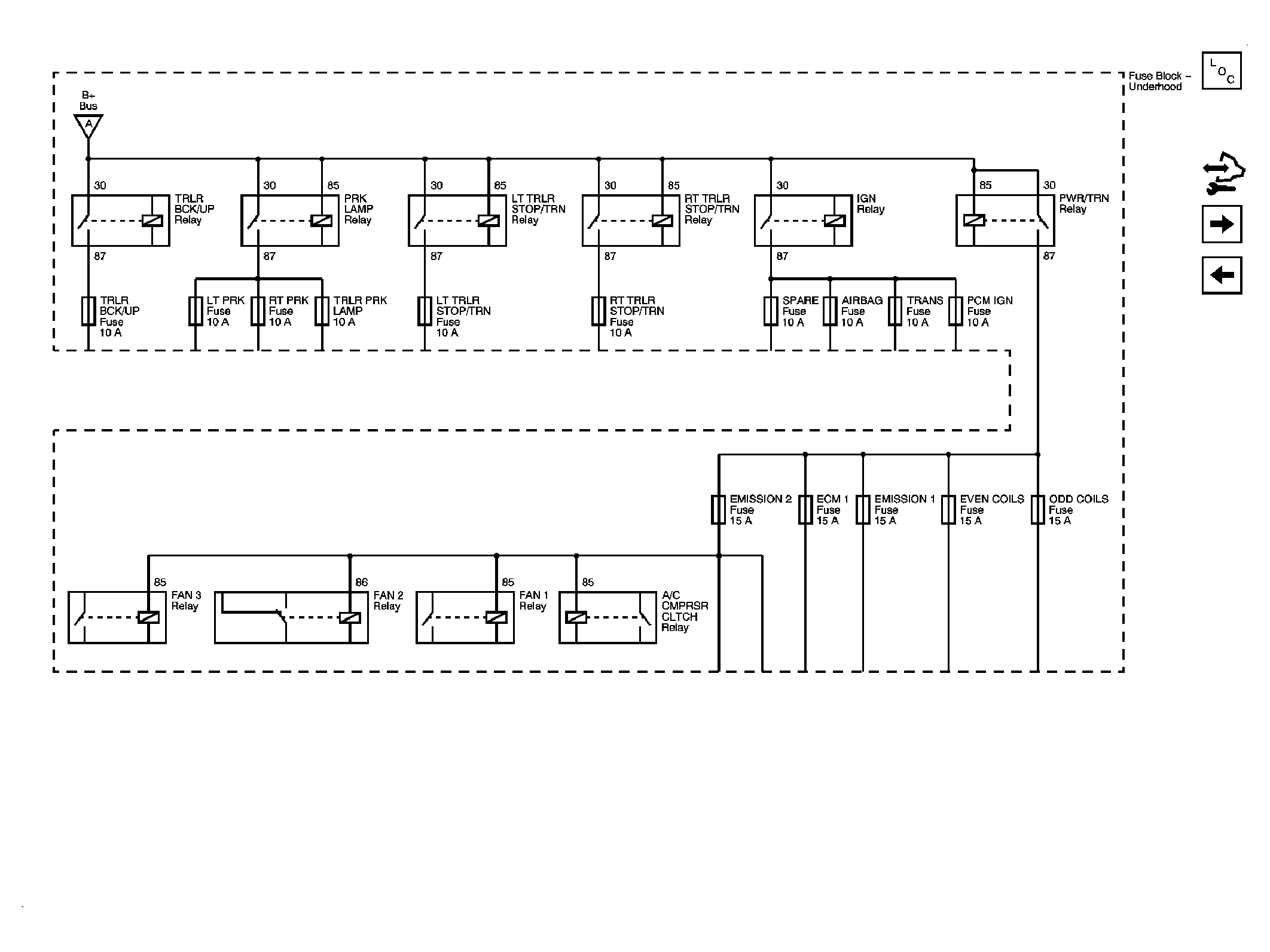

Fig 2: B+ Bus 2 of 2

Courtesy of GENERAL MOTORS CORP.

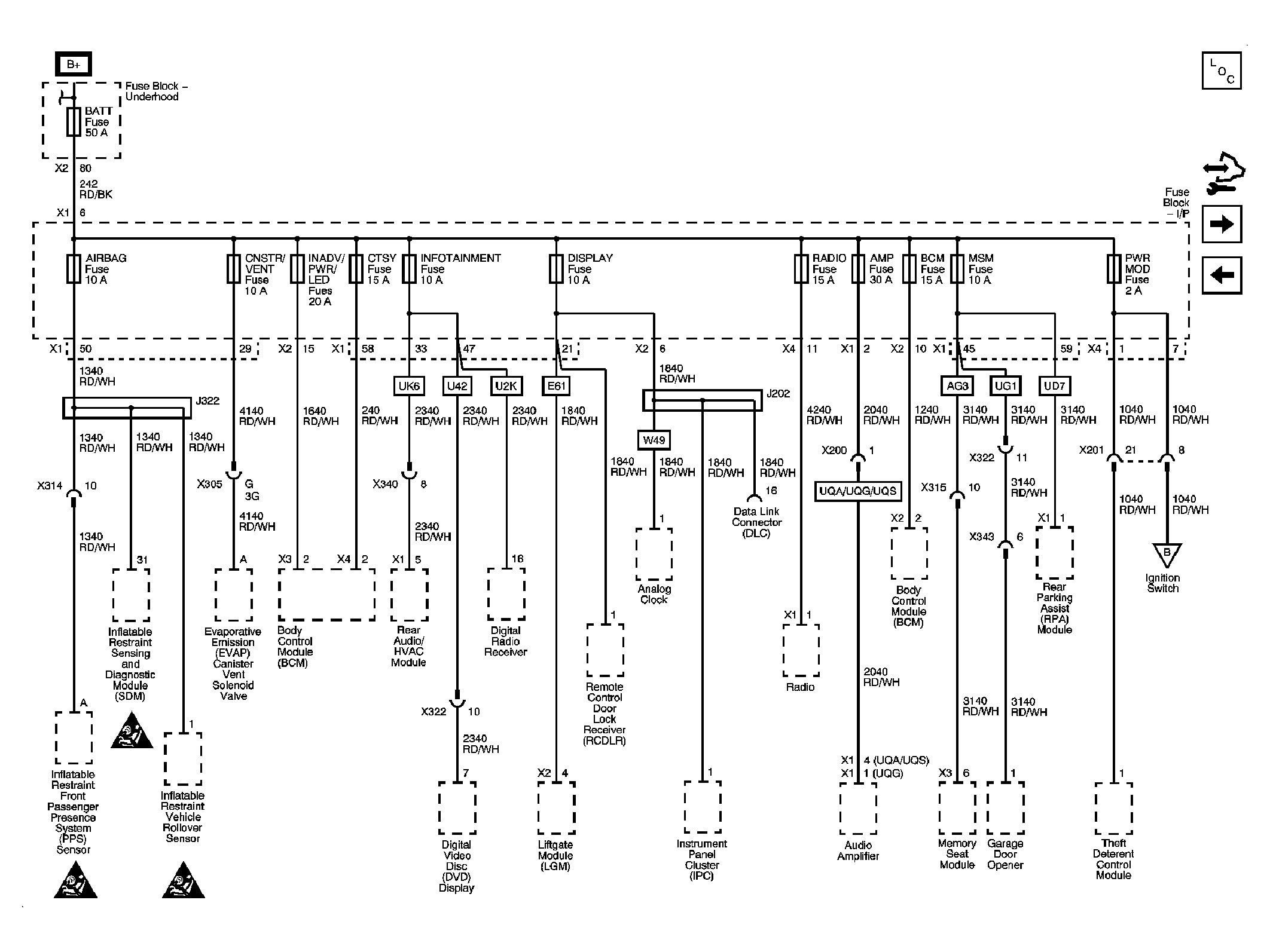

Fig 3: AIRBAG, AMP, BATT 1, BCM, CNSTR/VENT, CSTY, DISPLAY, INADV/PWR/LED, INFOTAINMENT, MSM, POWER MOD, and RADIO Fuses

Courtesy of GENERAL MOTORS CORP.

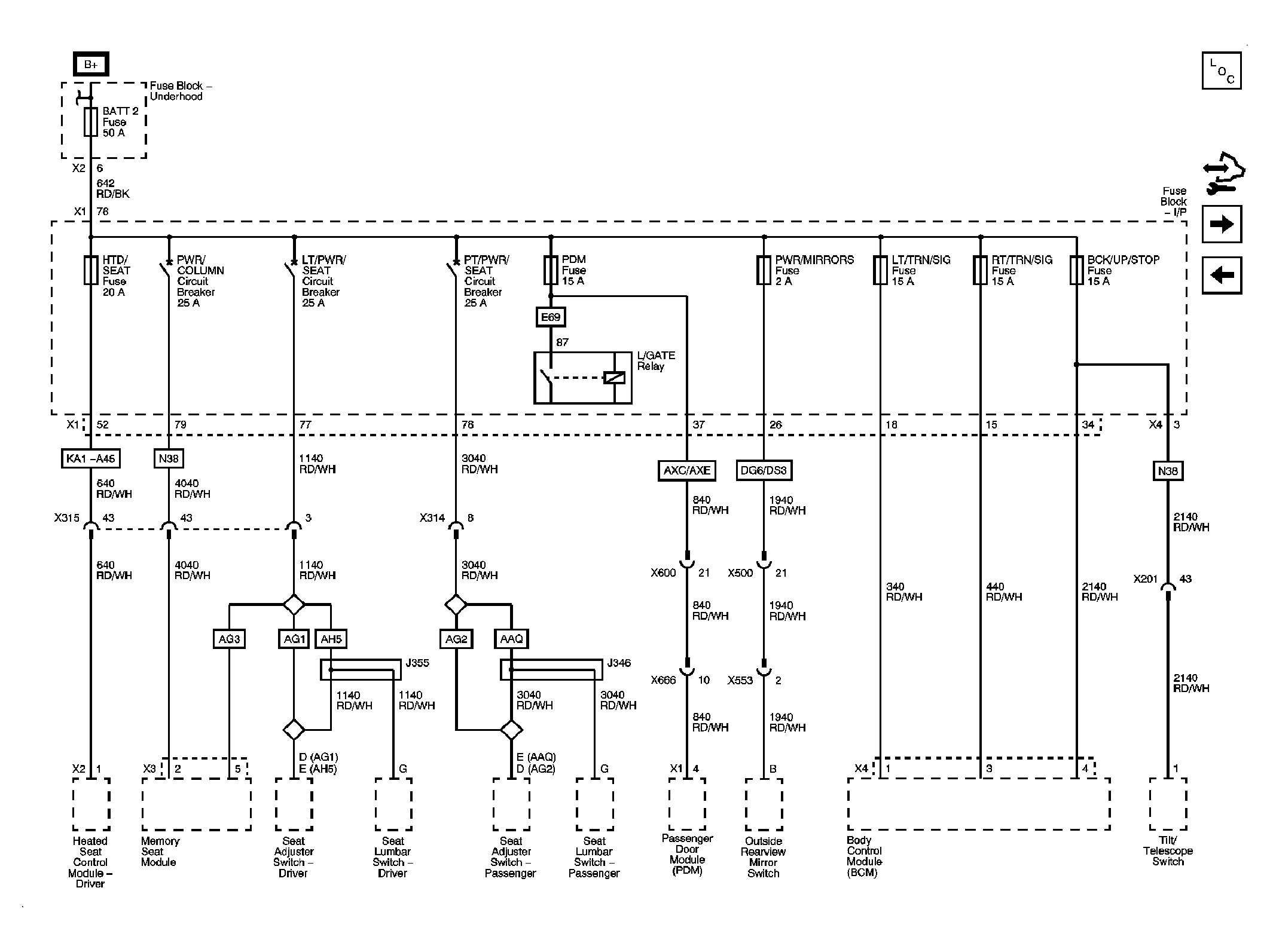

Fig 4: BATT 2, BCK/UP/STOP, HTD/SEAT, LT/TRN/SIG, PDM, PWR/MIRRORS, and RT/TRN/SIG Fuses, LT/PWR/SEAT, PWR/COLUMN, and RT/PWR/SEAT Circuit Breakers

Courtesy of GENERAL MOTORS CORP.

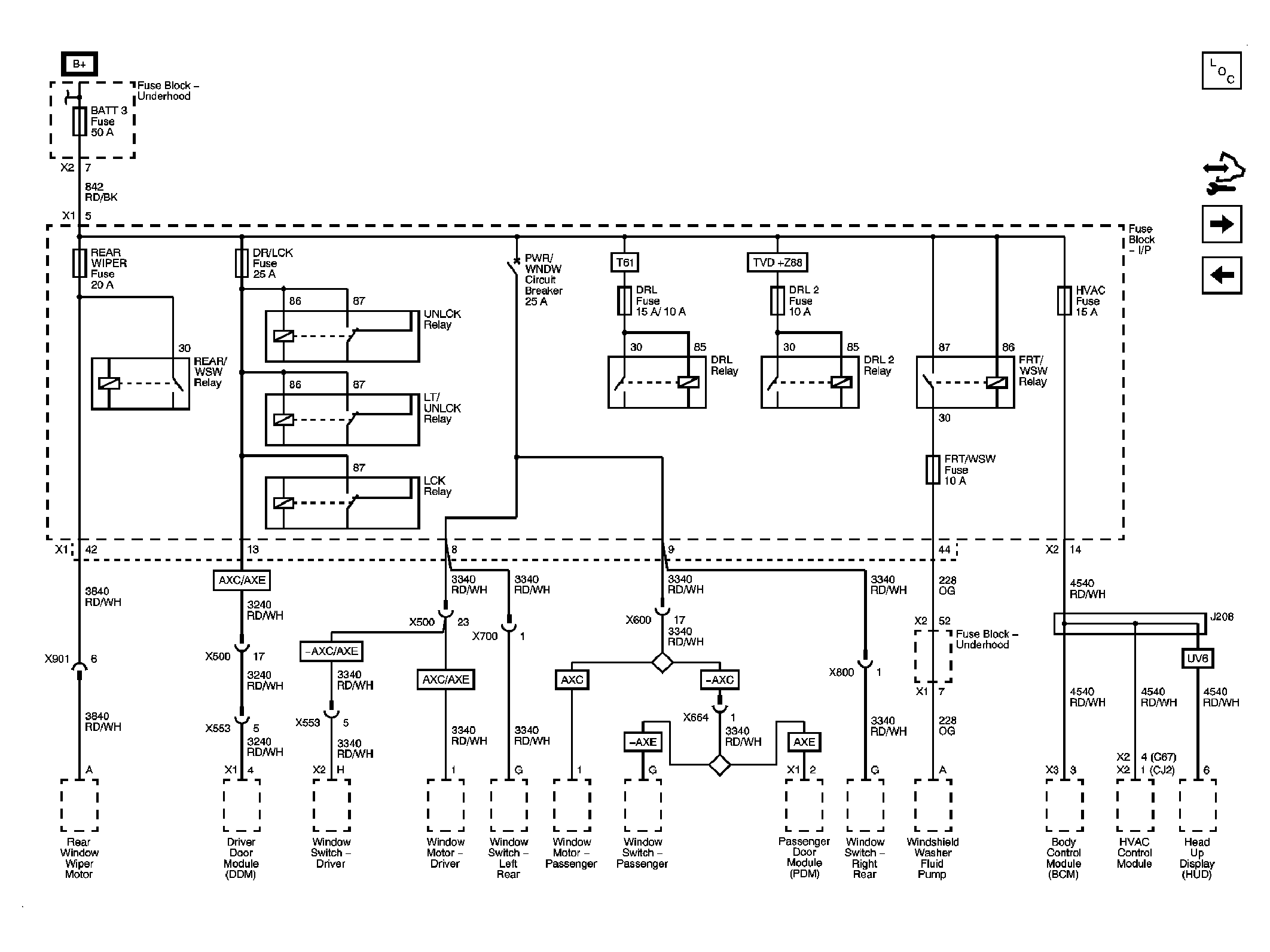

Fig 5: BATT 3, DRL, DRL 2, DR/LCK, FRT/WSW, HVAC, and REAR WIPER Fuses, PWR/WNDW Circuit Breaker

Courtesy of GENERAL MOTORS CORP.

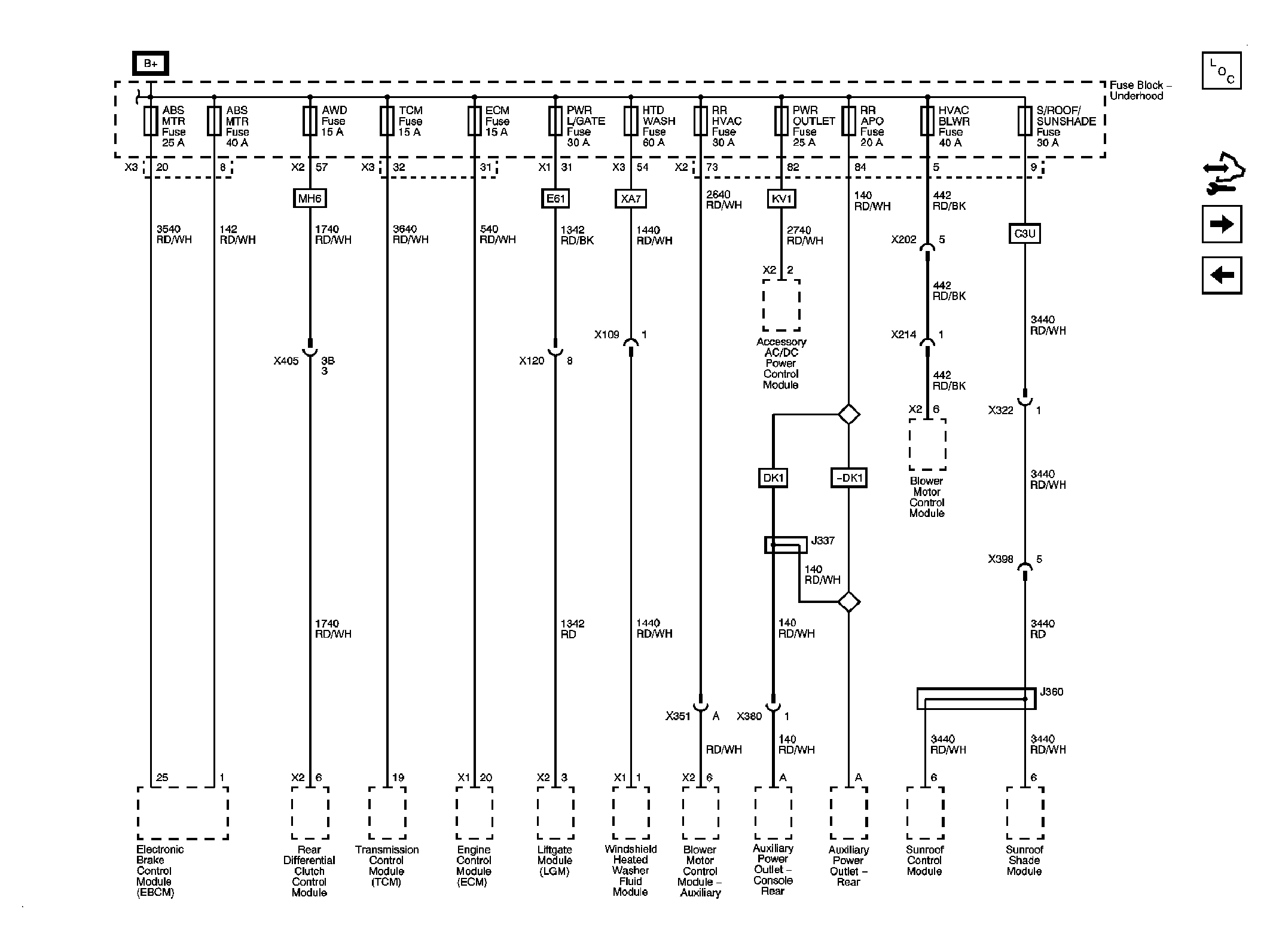

Fig 6: ABS MTR, ABS MTR, AWD, ECM, HTD WASH, HVAC BLWR, PWR L/GATE, PWR OUTLET, RR APO, RR HVAC, S/ROOF/SUNSHADE and TCM Fuses

Courtesy of GENERAL MOTORS CORP.

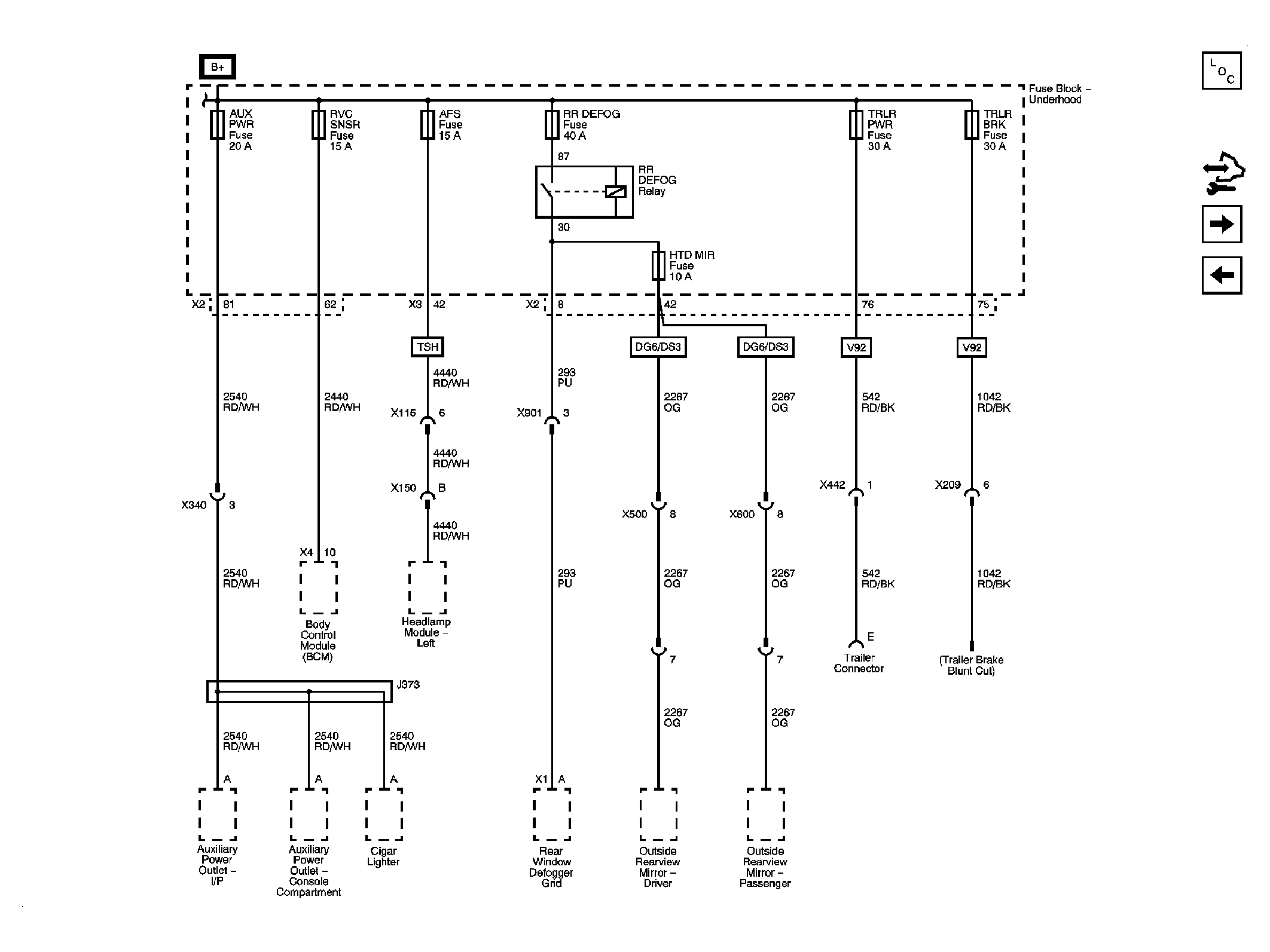

Fig 7: AFS, AUX PWR, HTD MIR, RR DEFOG, RVC SNSR, TRLR BRK and TRLR PWR Fuses

Courtesy of GENERAL MOTORS CORP.

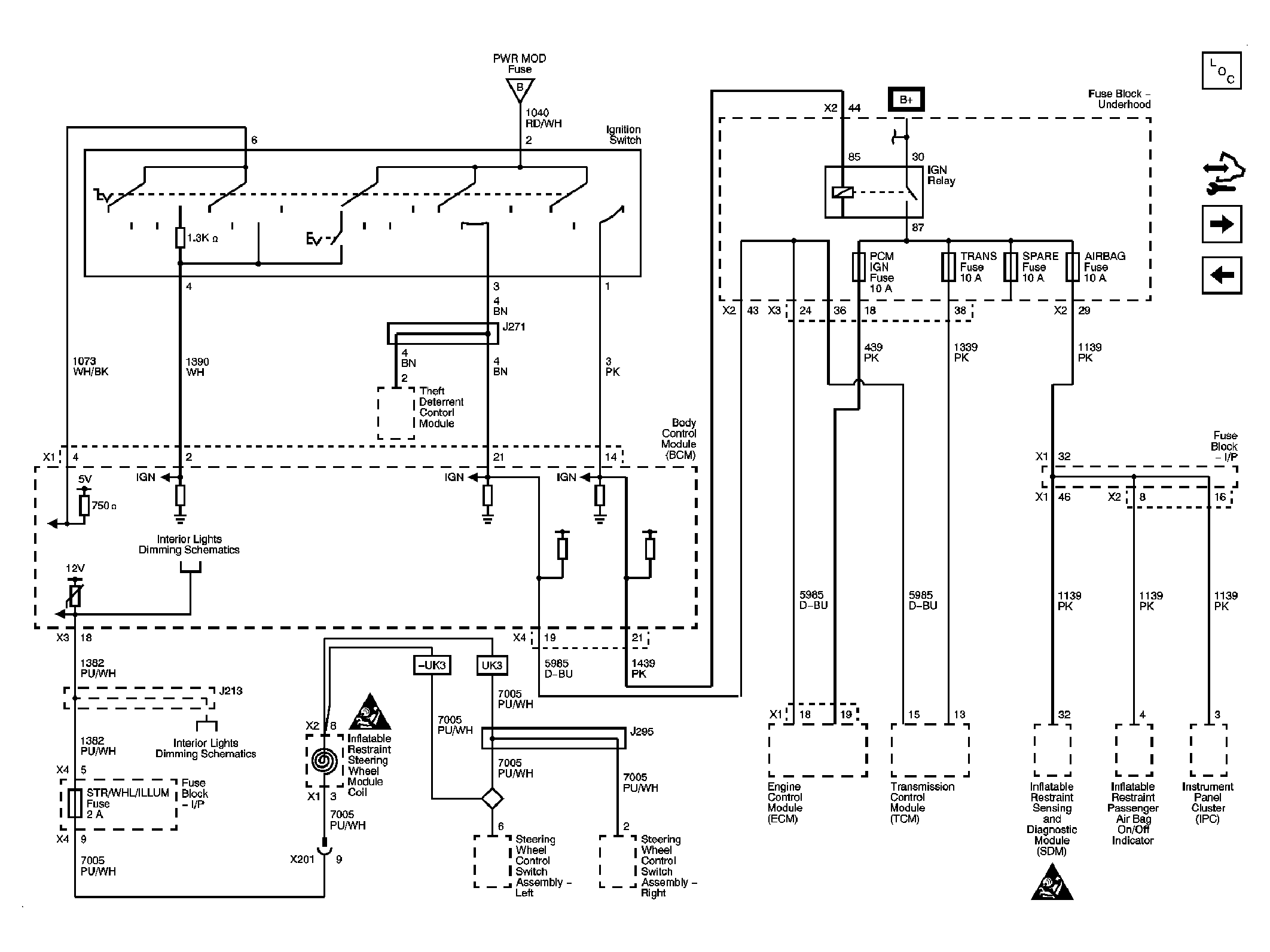

Fig 8: Ignition Switch and AIRBAG, PCM IGN, RR CAMERA, and TRANS Fuses

Courtesy of GENERAL MOTORS CORP.

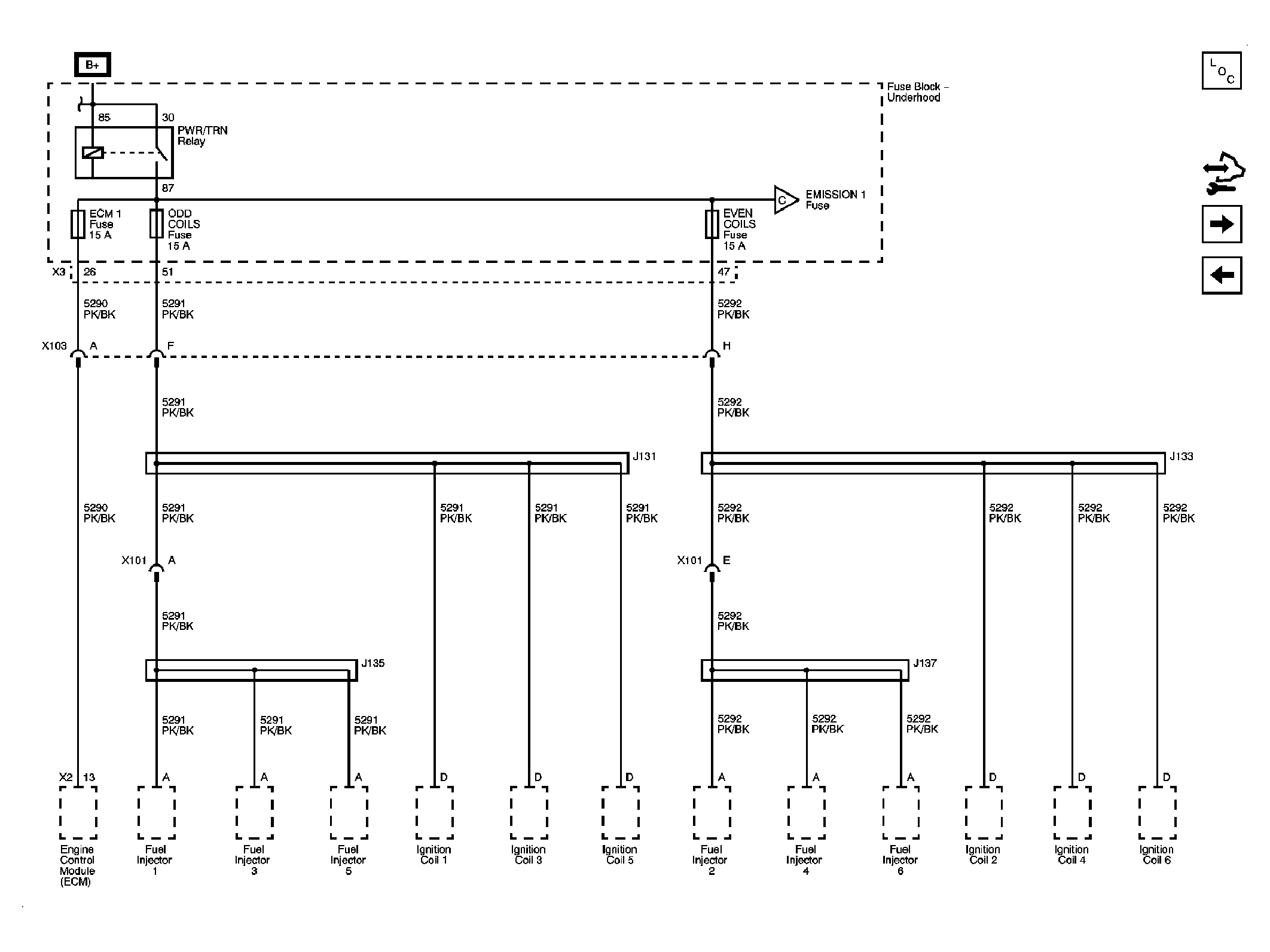

Fig 9: ECM 1, EVEN COILS, and ODD COILS Fuses

Courtesy of GENERAL MOTORS CORP.

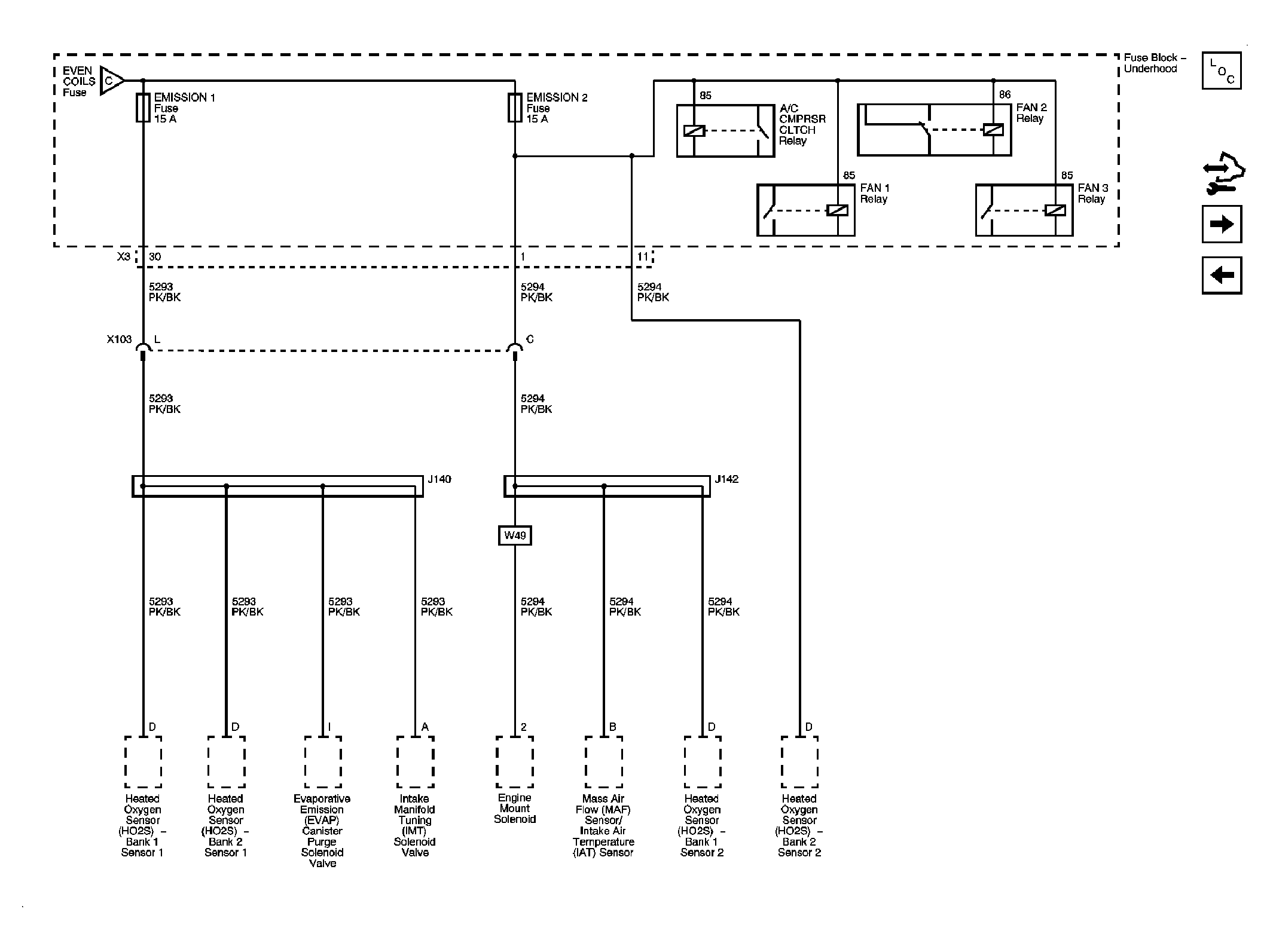

Fig 10: EMISSION 1 and EMISSION 2 Fuses

Courtesy of GENERAL MOTORS CORP.

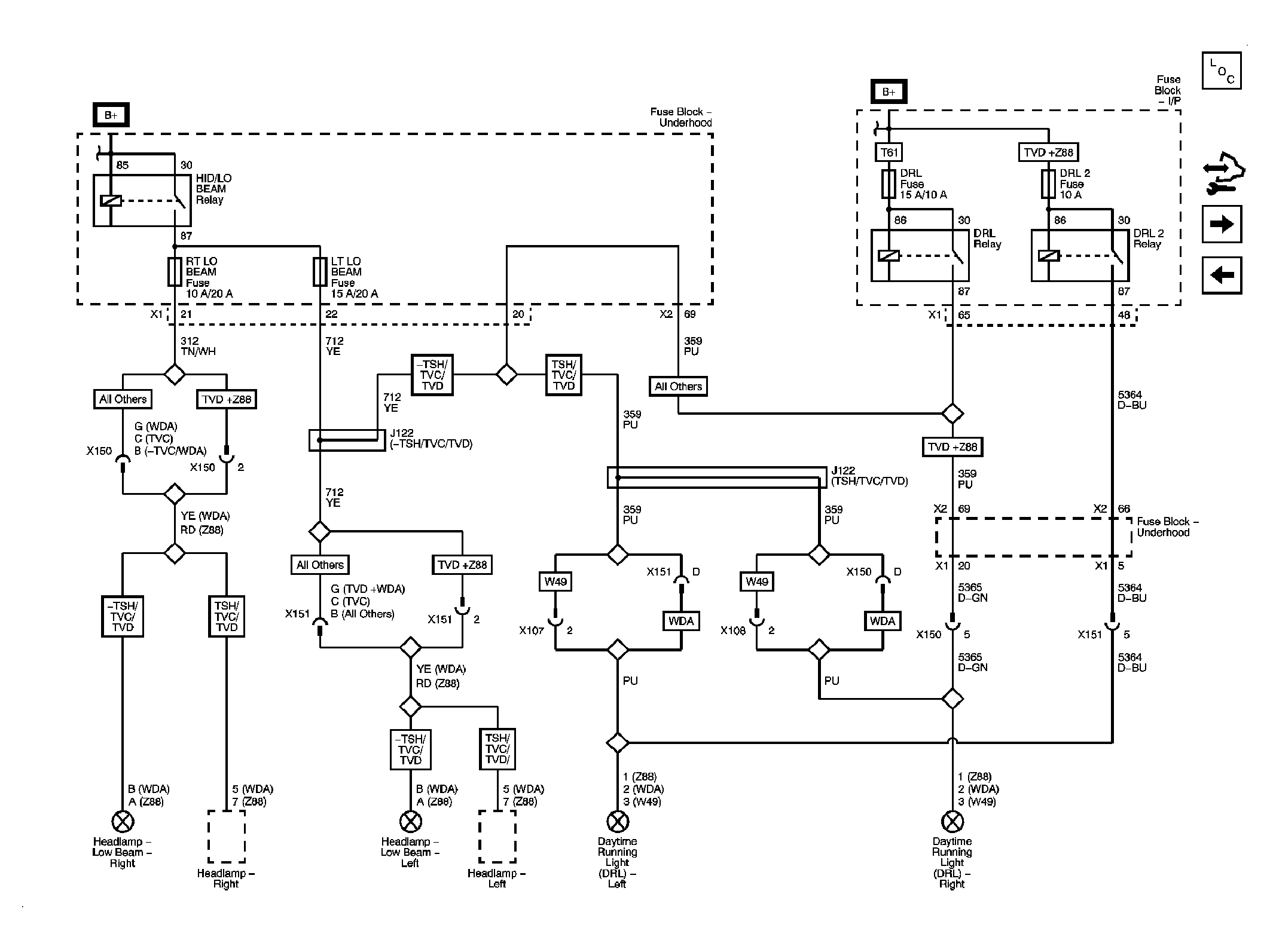

Fig 11: DRL, DRL 2, LT LO BEAM, and RT LO BEAM Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 12: LT HI BEAM & RT HI BEAM Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

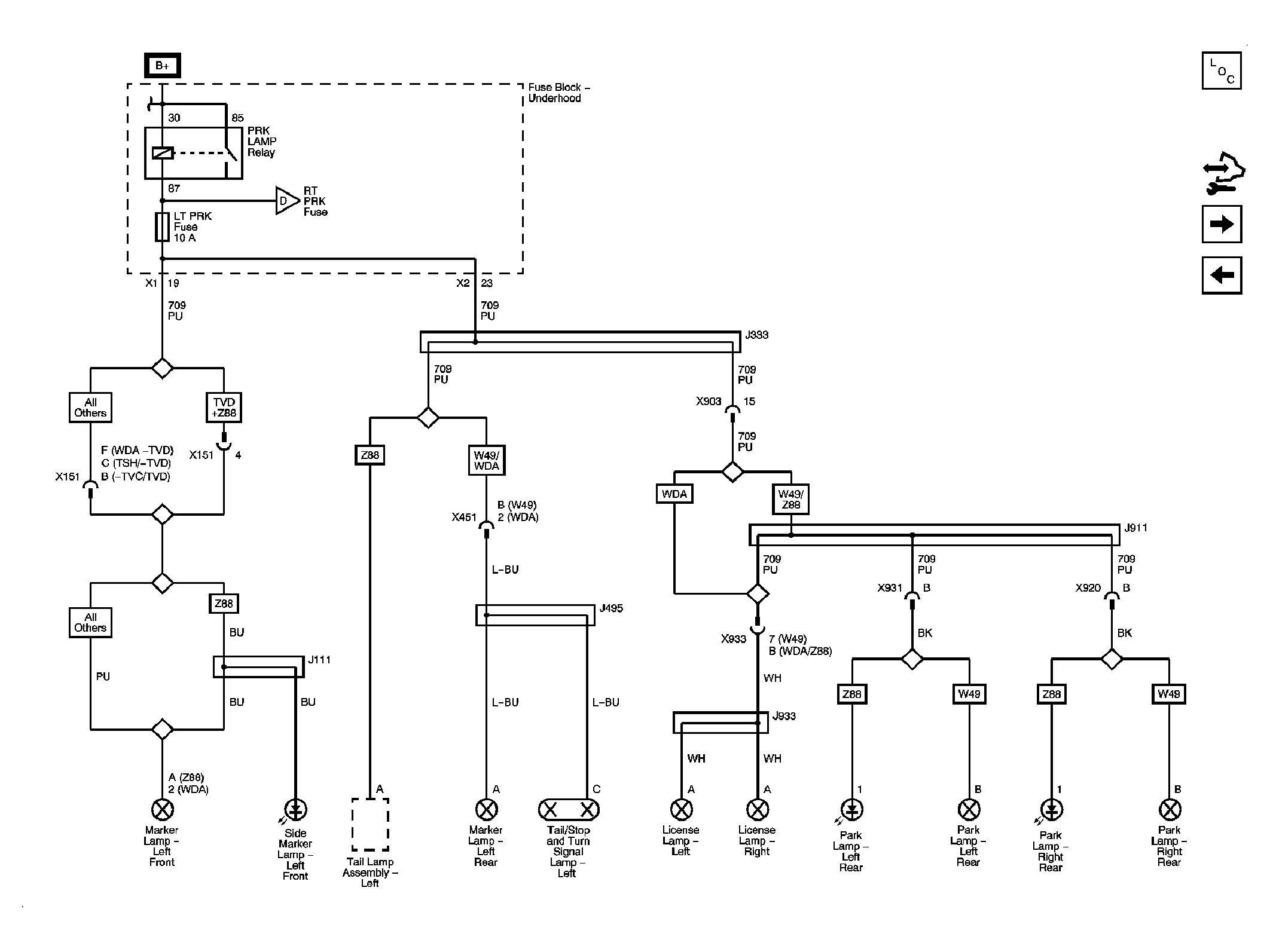

Fig 13: LT PRK Fuse

Courtesy of GENERAL MOTORS CORP.

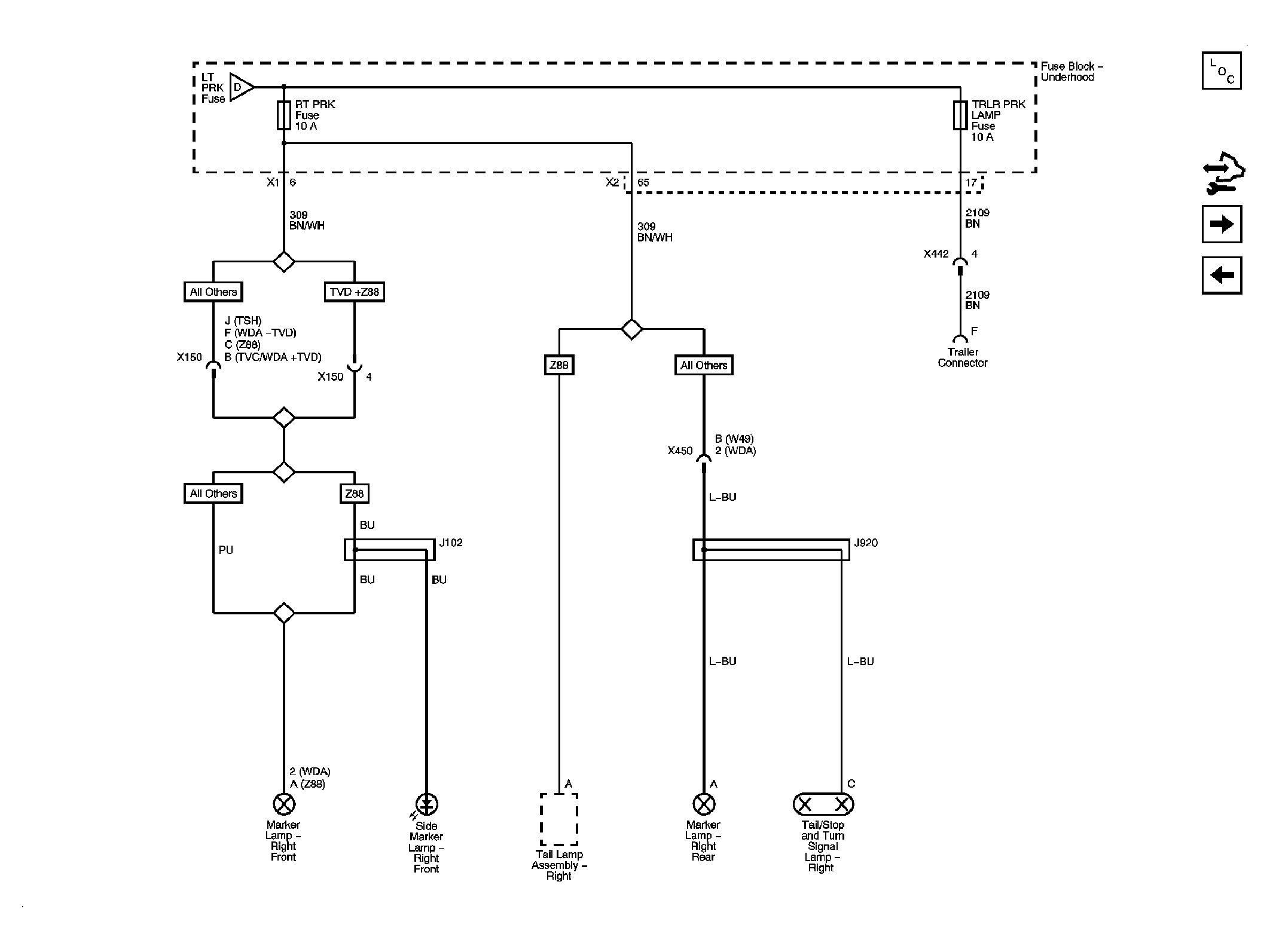

Fig 14: RT PRK and TRLR PRK LAMP Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 15: LT TRLR STOP/TRN, TRLR BCK/UP, and RT TRLR STOP/TRN Fuses

Courtesy of GENERAL MOTORS CORP.
