Ground Distribution Schematics

Fig 1: G101, G103, and G113 (W49)

GM1882420

Courtesy of GENERAL MOTORS CORP.

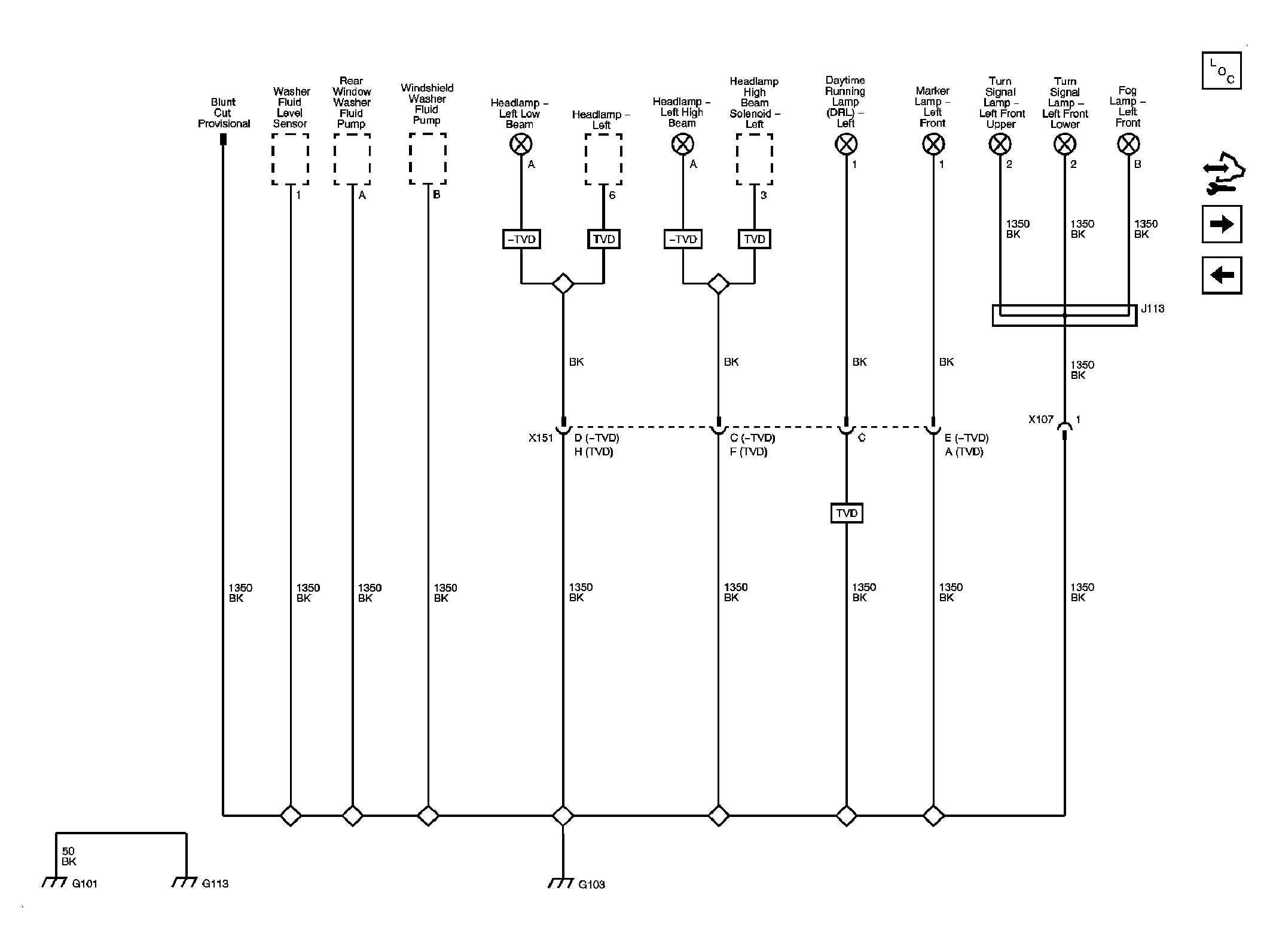

Fig 2: G101, G103, and G113 (WDA)

GM1882421

Courtesy of GENERAL MOTORS CORP.

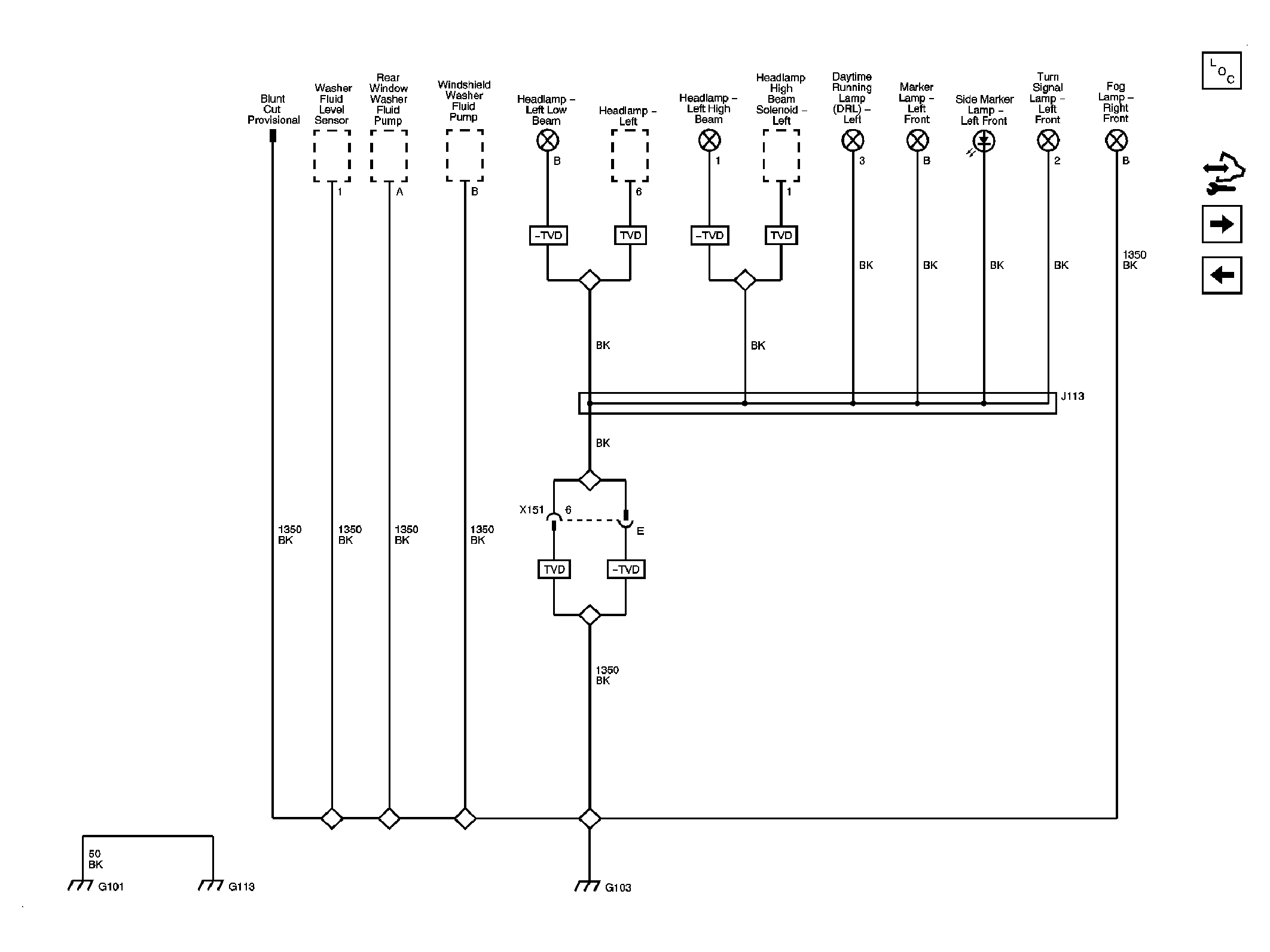

Fig 3: G101, G103, and G113 (Z88)

GM1882447

Courtesy of GENERAL MOTORS CORP.

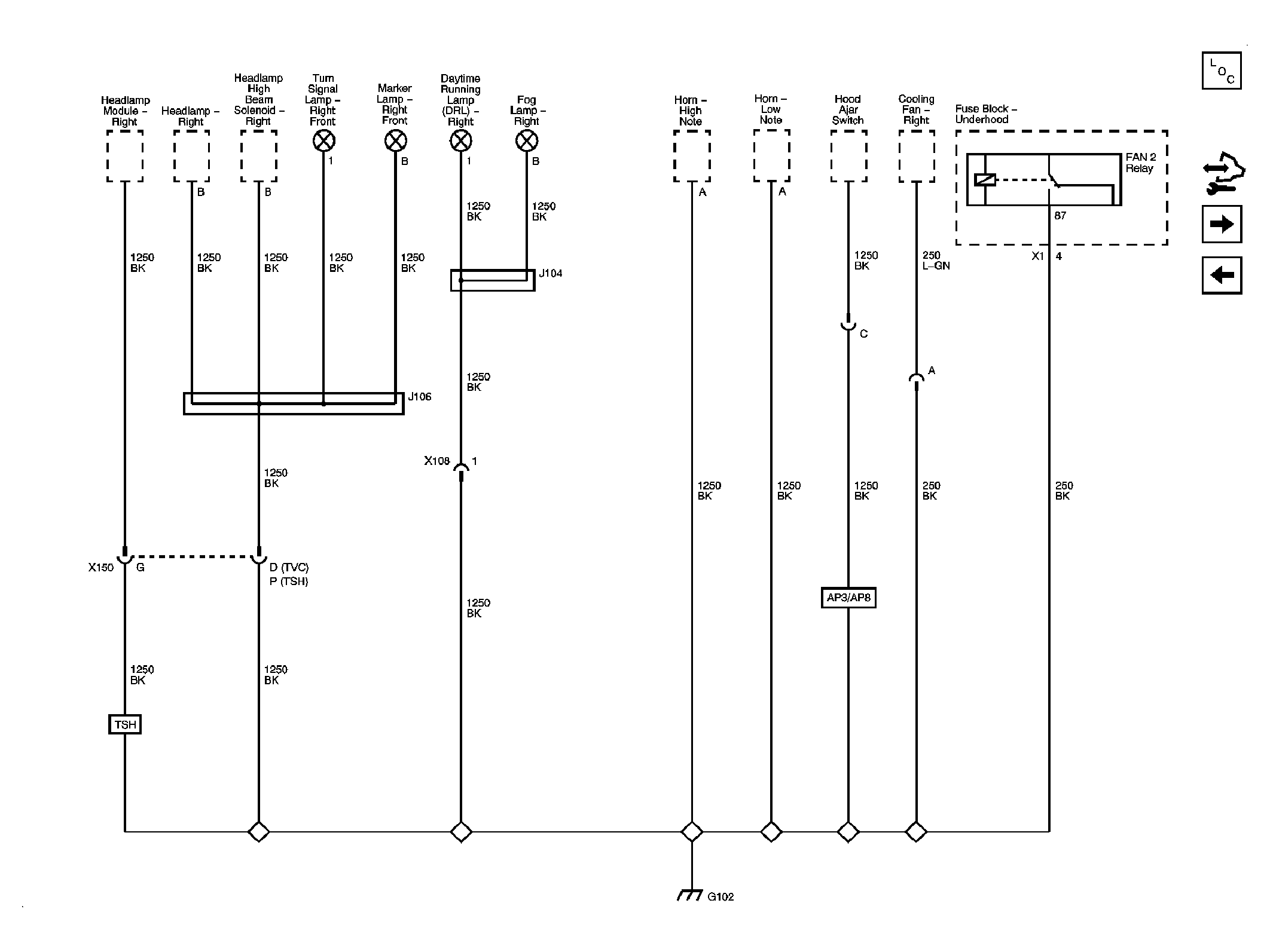

Fig 4: G102 (W49)

GM1882453

Courtesy of GENERAL MOTORS CORP.

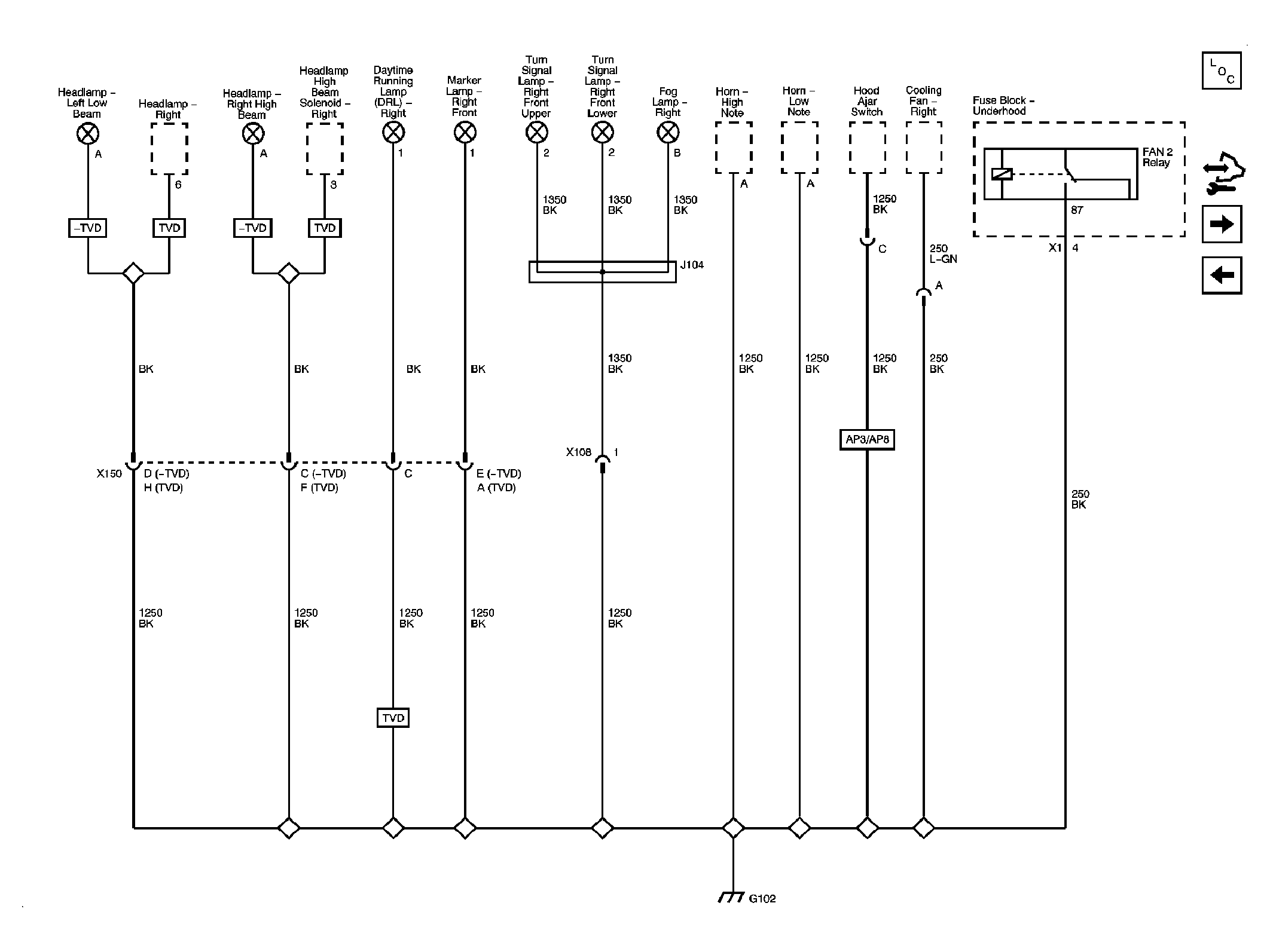

Fig 5: G102 (WDA)

GM1882485

Courtesy of GENERAL MOTORS CORP.

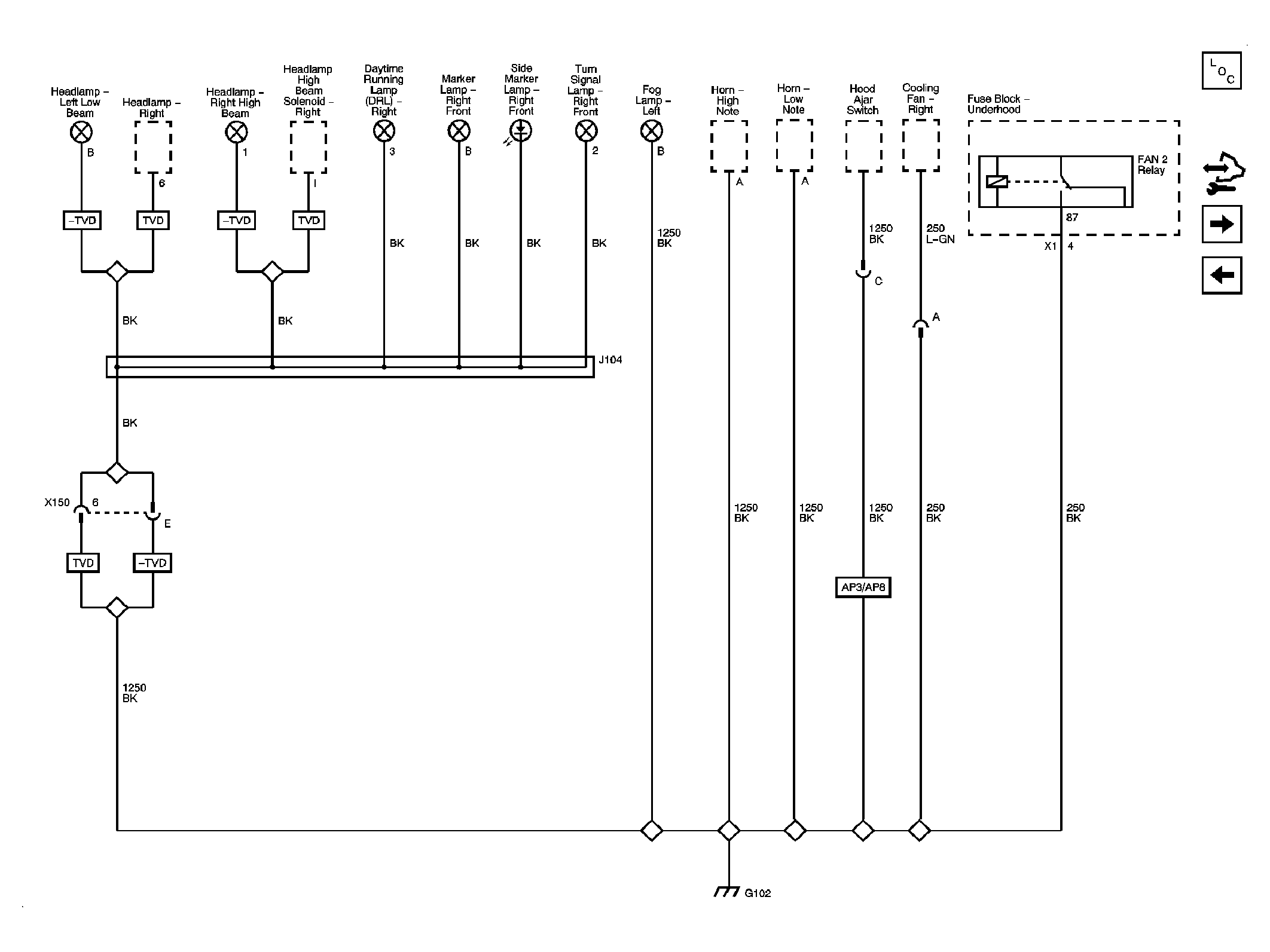

Fig 6: G102 (Z88)

GM1882493

Courtesy of GENERAL MOTORS CORP.

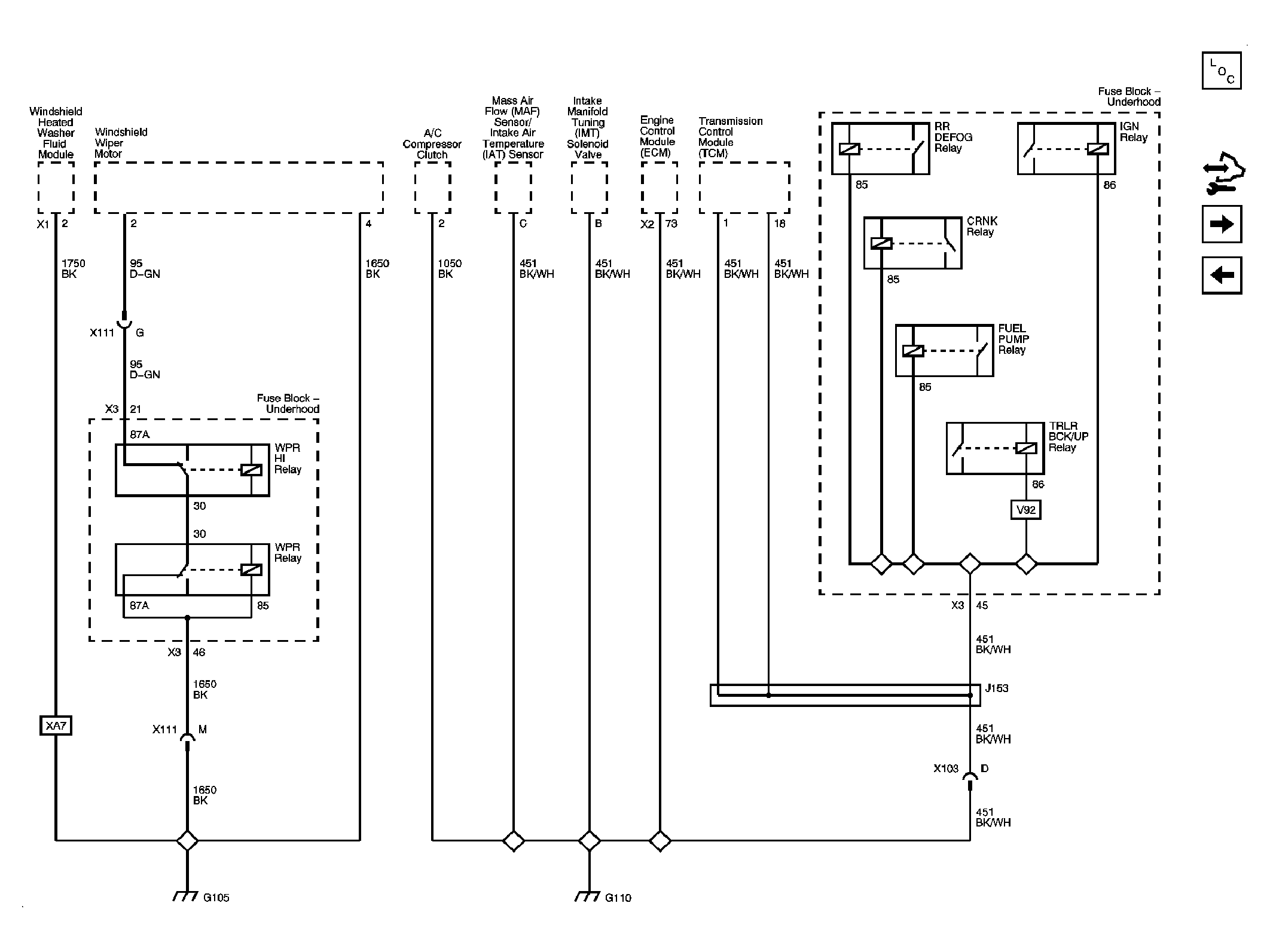

Fig 7: G105 and G110

GM1882502

Courtesy of GENERAL MOTORS CORP.

Fig 8: G112, G114, and G115

GM1882509

Courtesy of GENERAL MOTORS CORP.

Fig 9: G300

GM1882515

Courtesy of GENERAL MOTORS CORP.

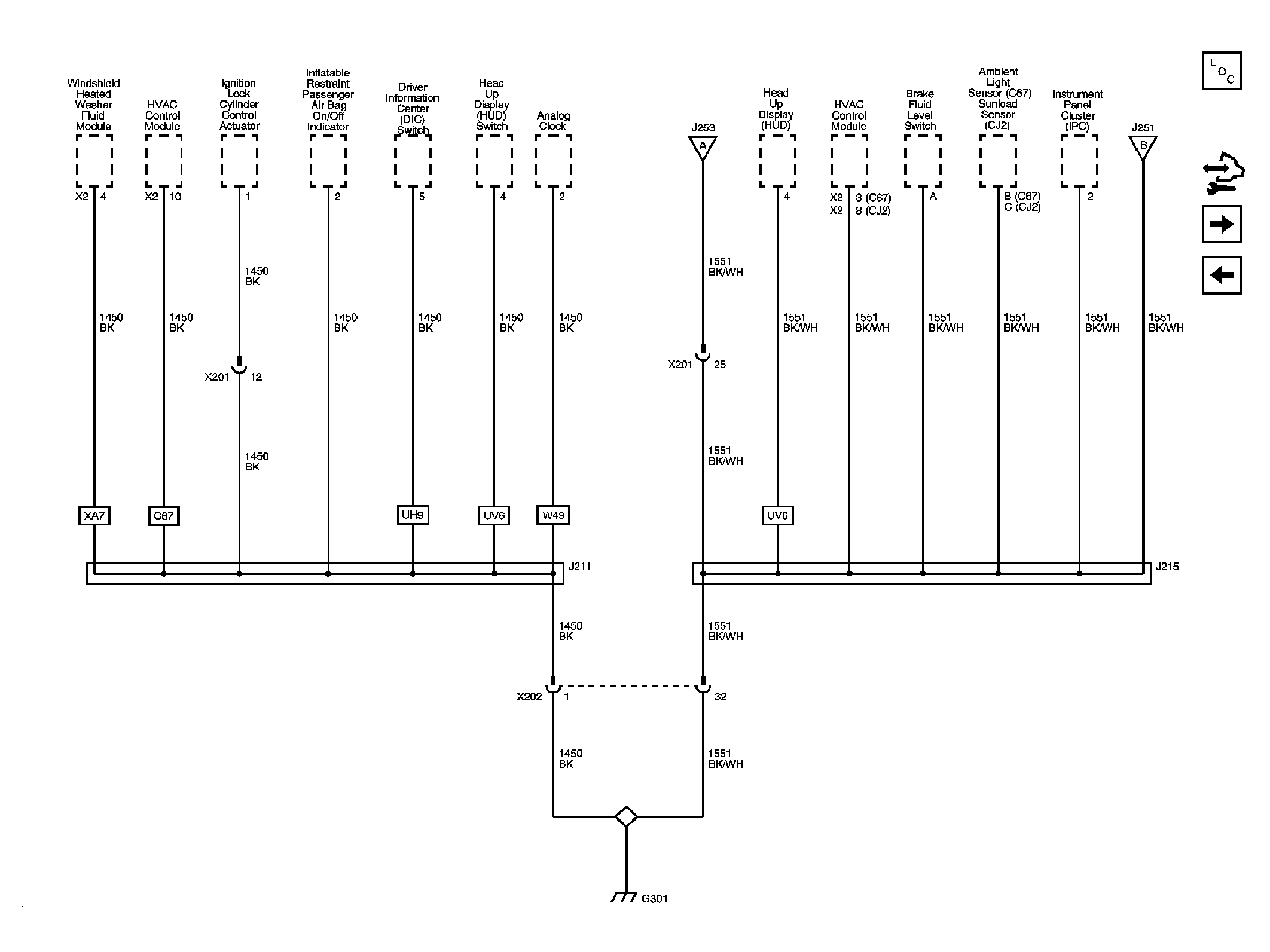

Fig 10: G301 1 of 2

GM1882525

Courtesy of GENERAL MOTORS CORP.

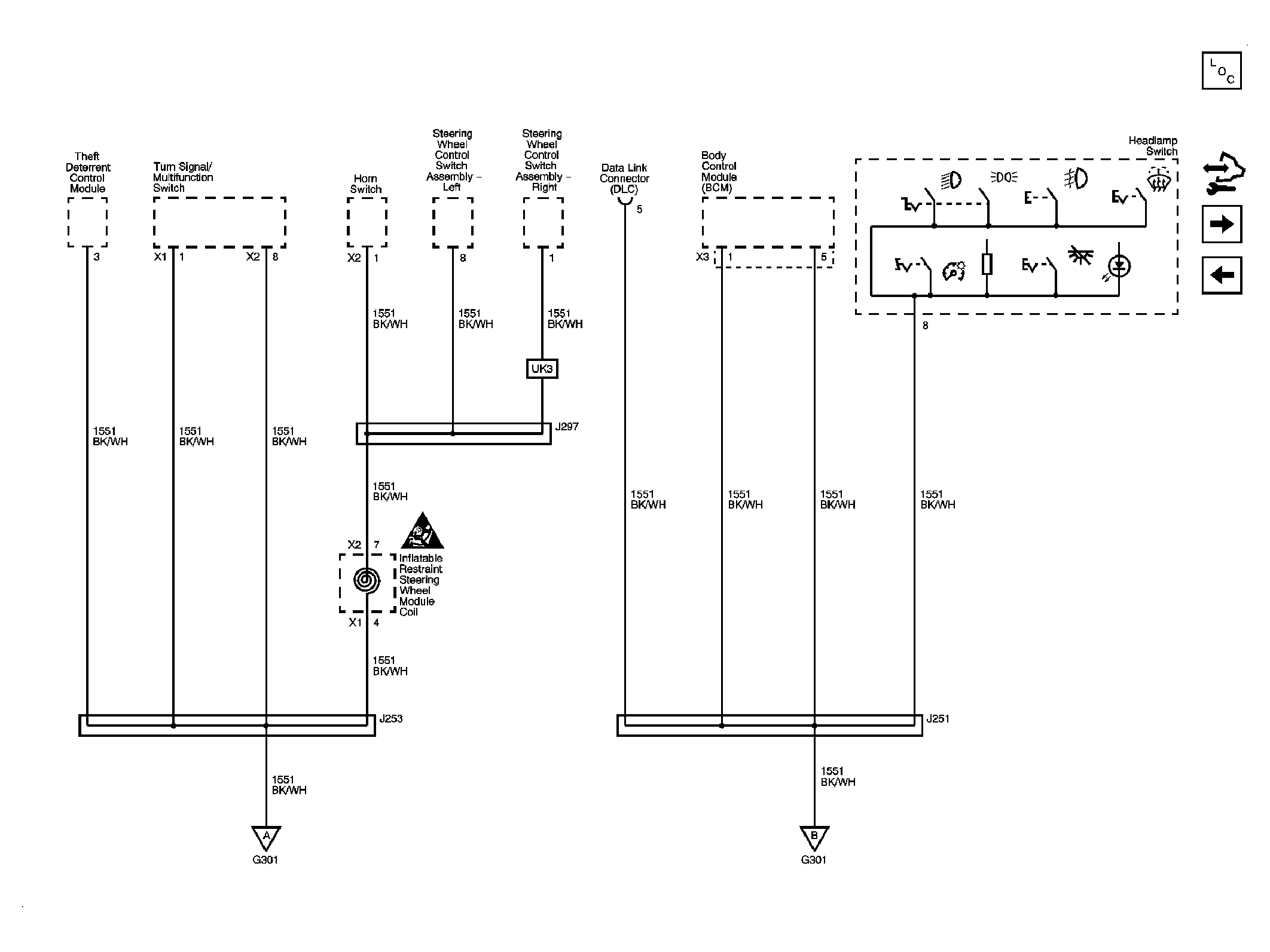

Fig 11: G301 2 of 2

GM1882540

Courtesy of GENERAL MOTORS CORP.

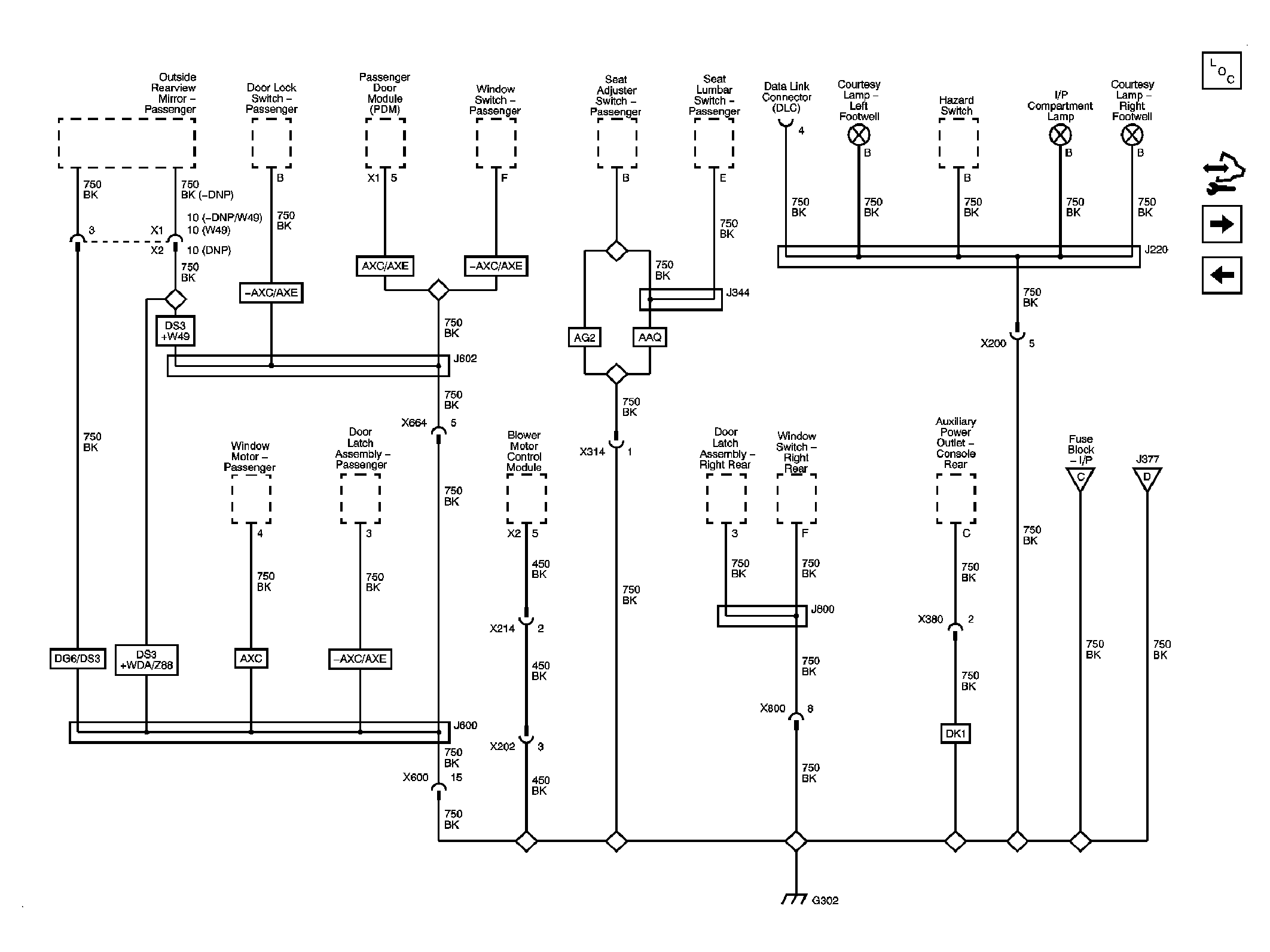

Fig 12: G302 1 of 3

GM1882542

Courtesy of GENERAL MOTORS CORP.

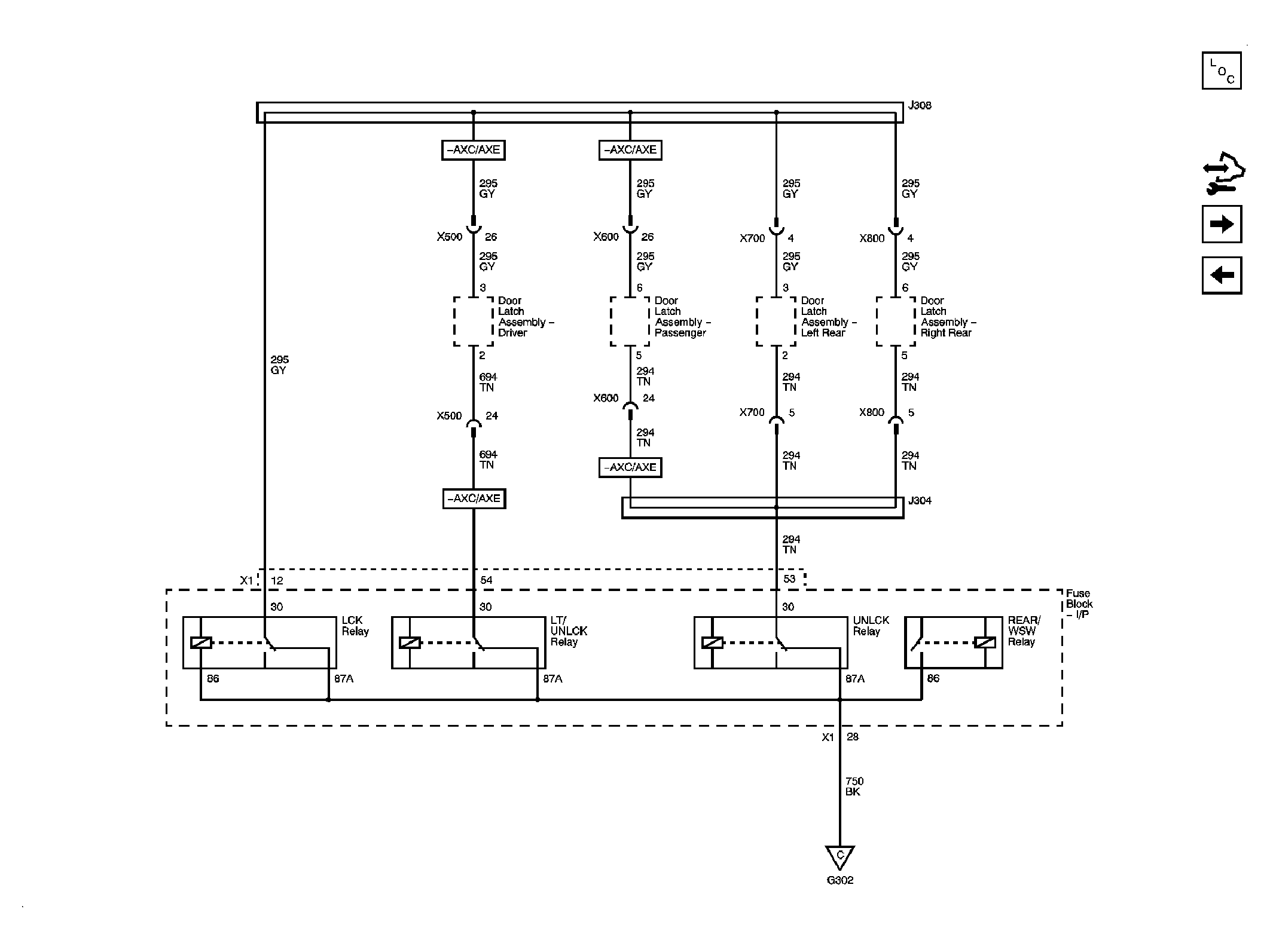

Fig 13: G302 2 of 3

GM1882548

Courtesy of GENERAL MOTORS CORP.

Fig 14: G302 3 of 3

GM1882556

Courtesy of GENERAL MOTORS CORP.

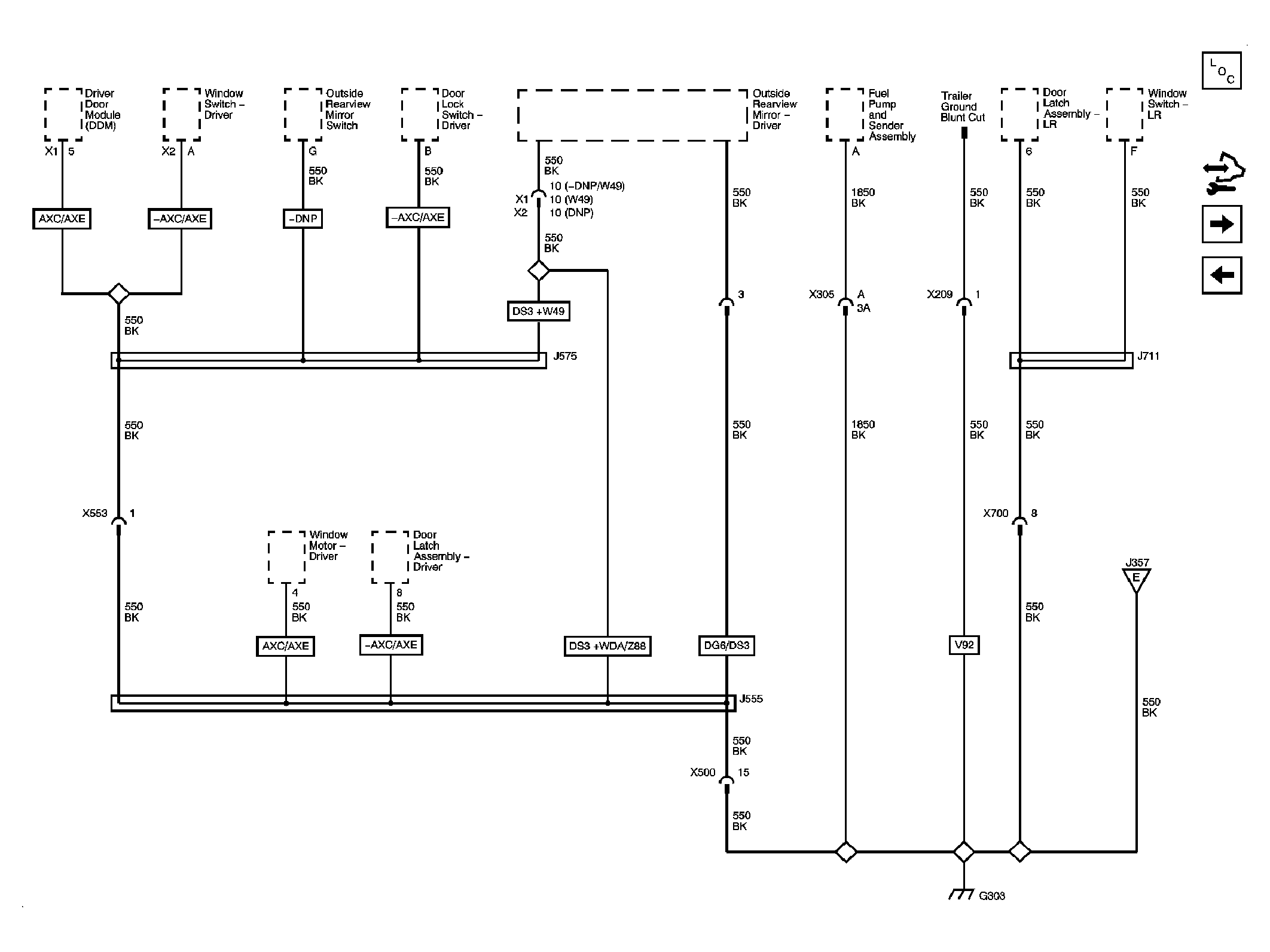

Fig 15: G303 1 of 2

GM1882563

Courtesy of GENERAL MOTORS CORP.

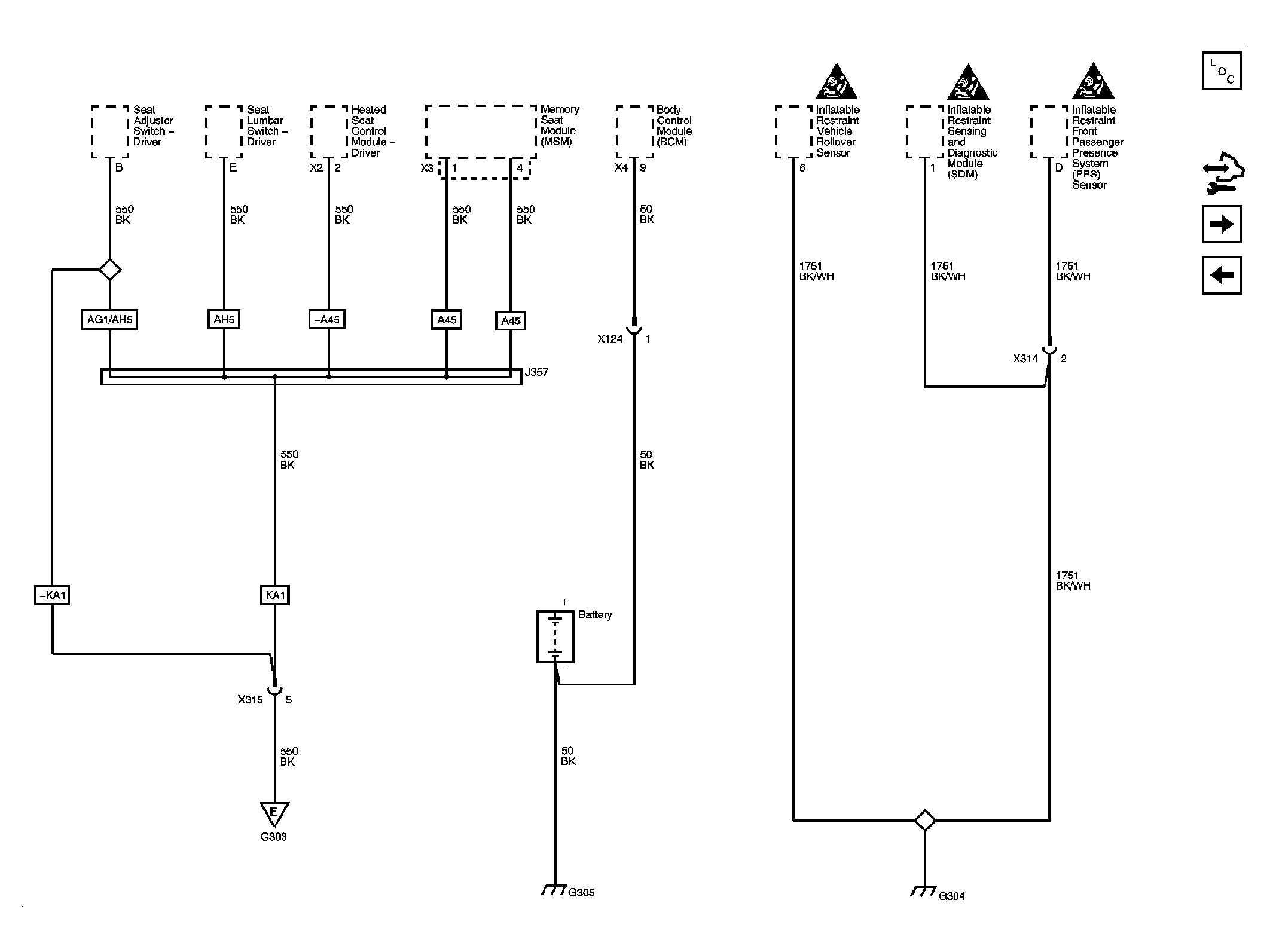

Fig 16: G303 2 of 2, G304, and G305

GM1882564

Courtesy of GENERAL MOTORS CORP.

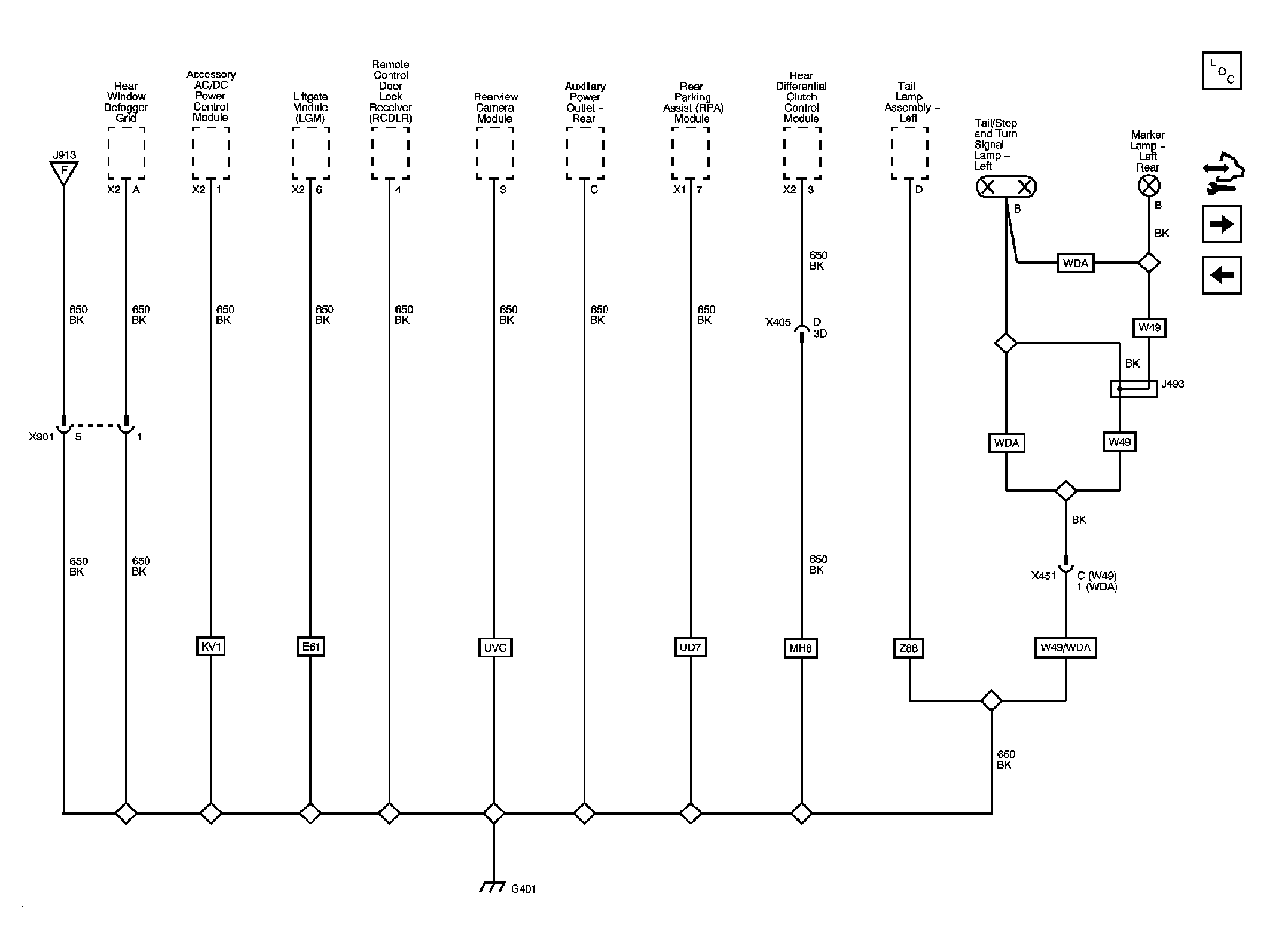

Fig 17: G401 1 of 2

GM1882583

Courtesy of GENERAL MOTORS CORP.

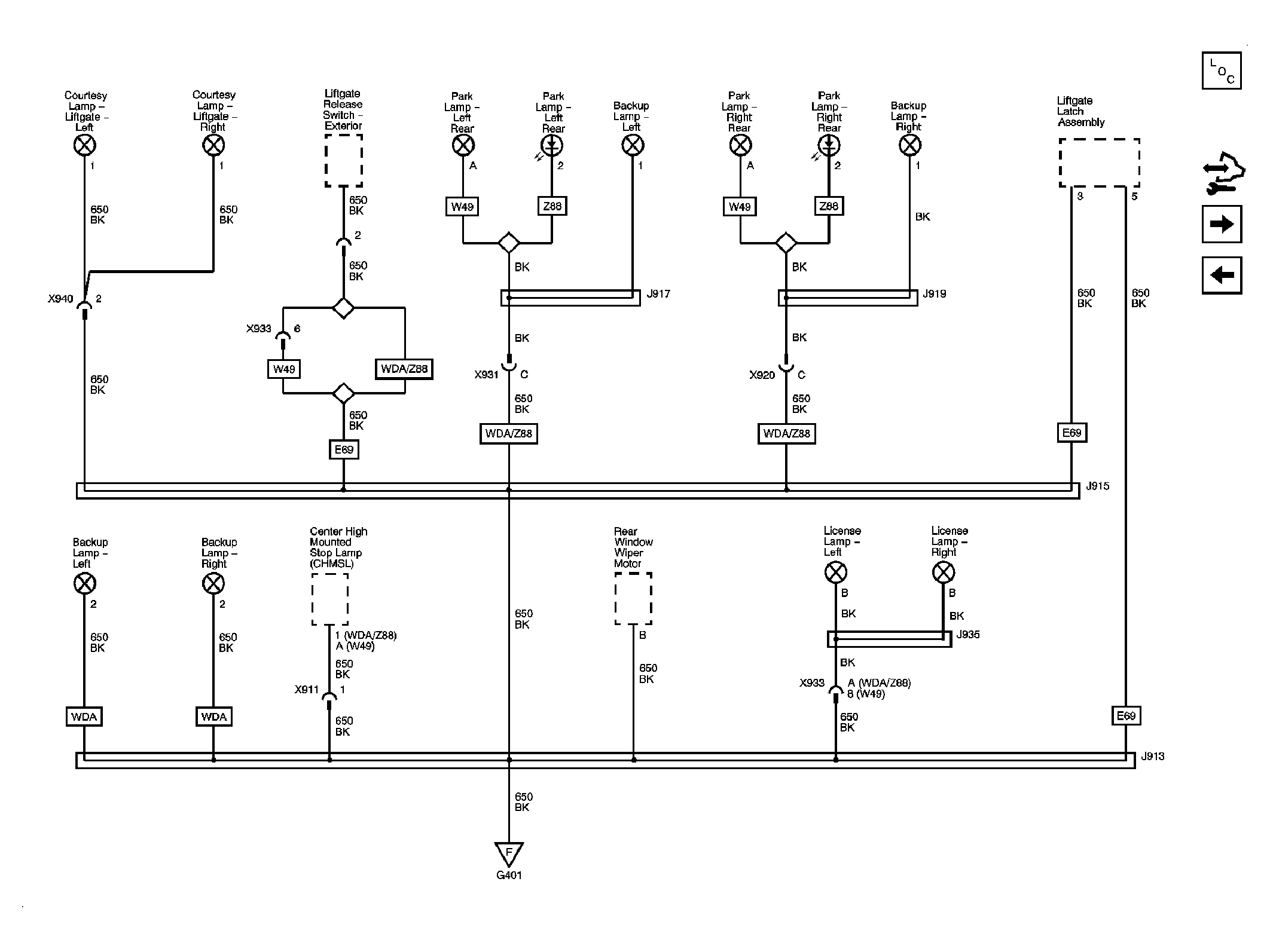

Fig 18: G401 2 of 2

GM1882584

Courtesy of GENERAL MOTORS CORP.

Fig 19: G402 1 of 2

GM1882605

Courtesy of GENERAL MOTORS CORP.

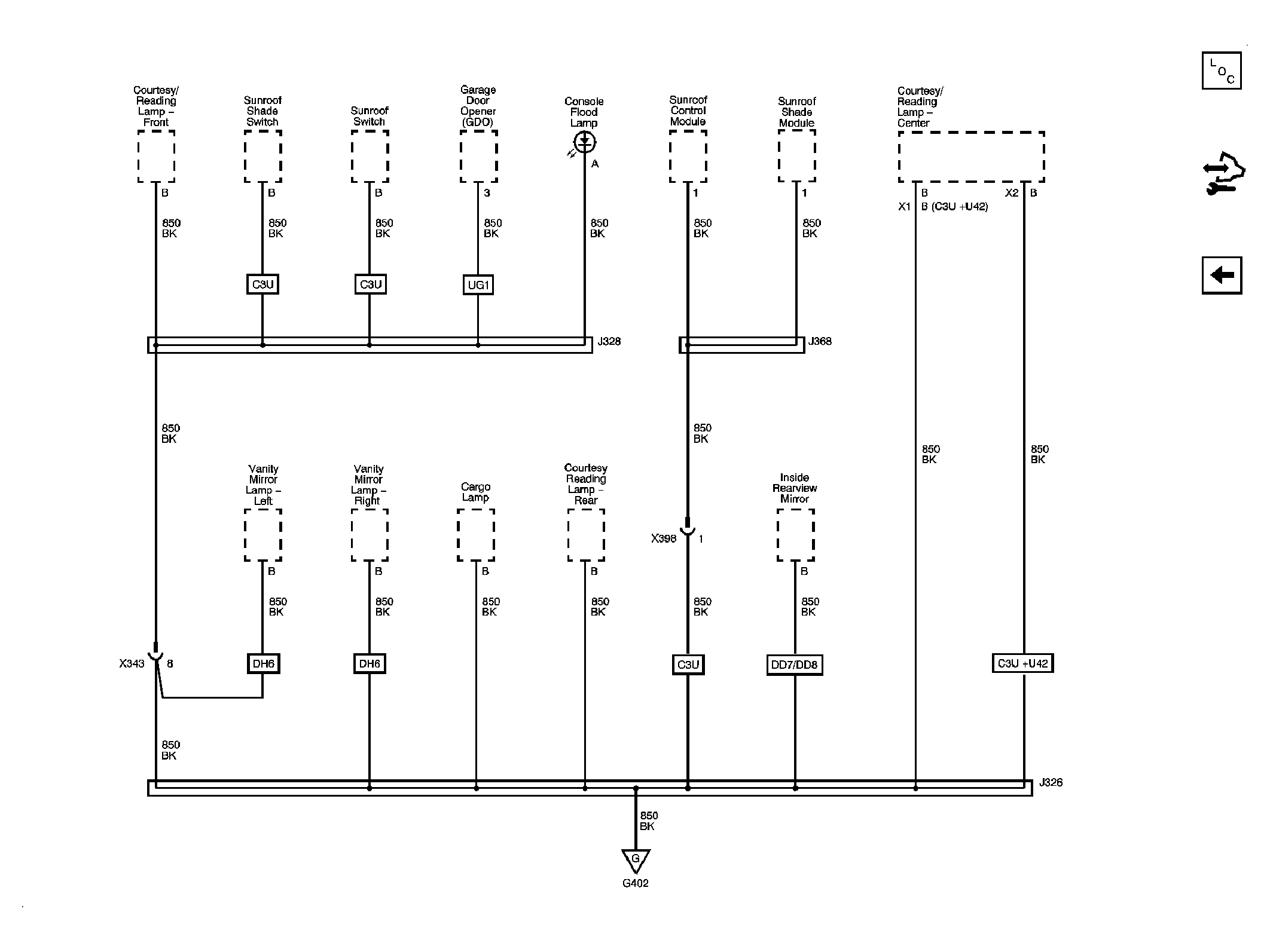

Fig 20: G402 2 of 2

GM1882622

Courtesy of GENERAL MOTORS CORP.
