Hood Primary and Secondary Latch Replacement

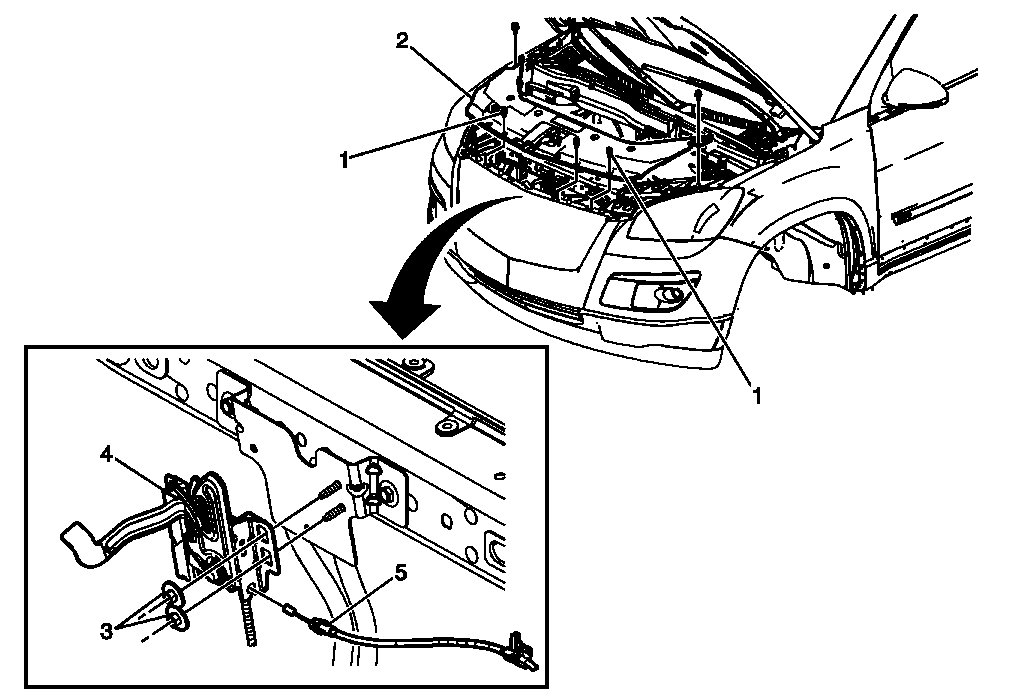

Fig 1: Identifying Hood Primary & Secondary Latch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sight Shield Push Pin (Qty: 8)
2	Sight Shield
3	Hood Latch Mounting Nut (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
4	Hood Latch Assembly
5	Hood Release Cable Procedure Disconnect the remote start electrical connector, if equipped. Disconnect the release cable from the hood latch by squeezing the cable retainer.
