Fuel Tank Filler Pipe Housing Replacement

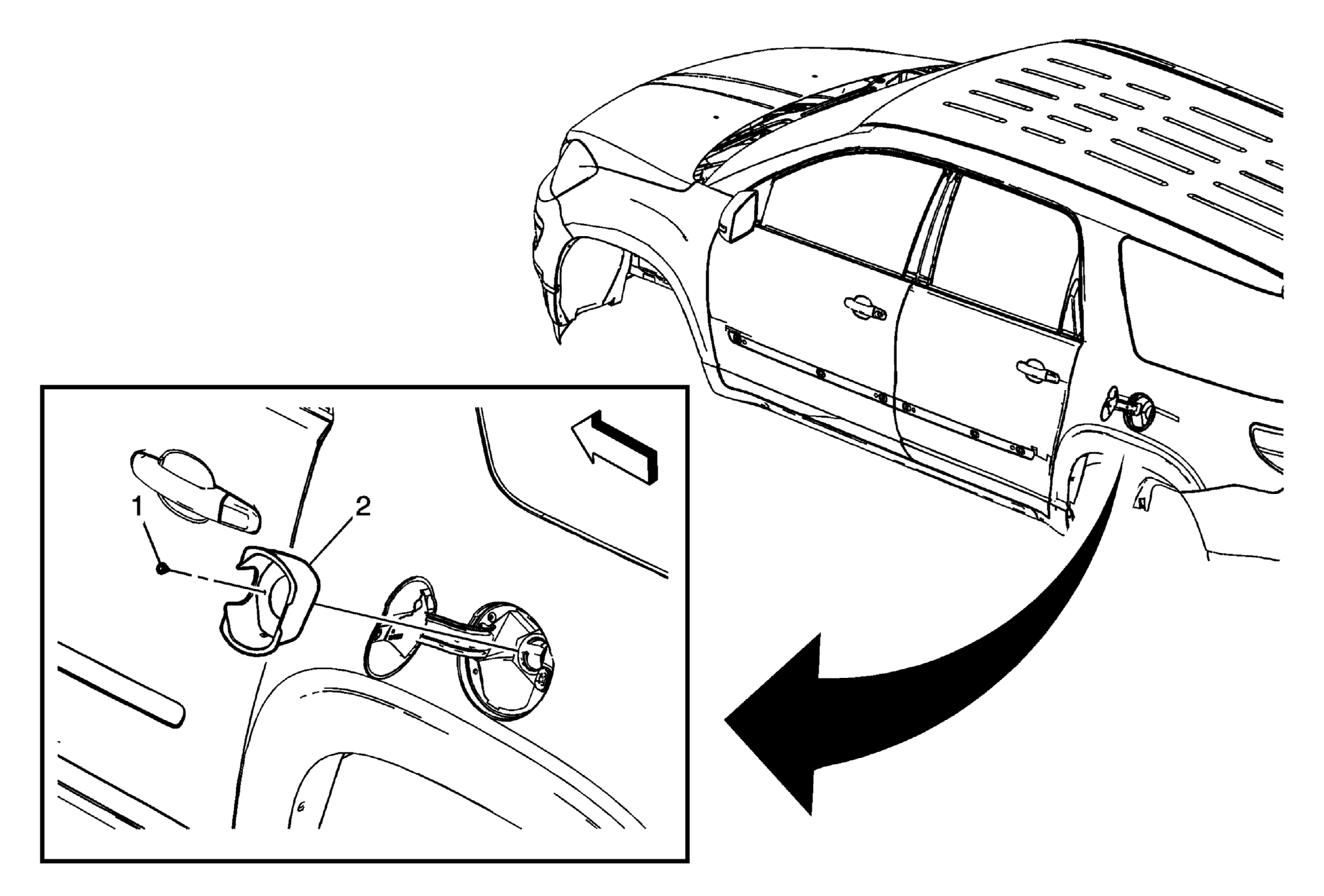

Fig 1: Identifying Fuel Tank Filler Pipe Housing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Filler Pipe Bolts (Qty: 3) NOTE: Refer to Fastener Notice . Tighten:  2 N.m (18 lb in)
2	Fuel Tank Filler Pipe Housing
