Rear Side Door Outside Handle Replacement

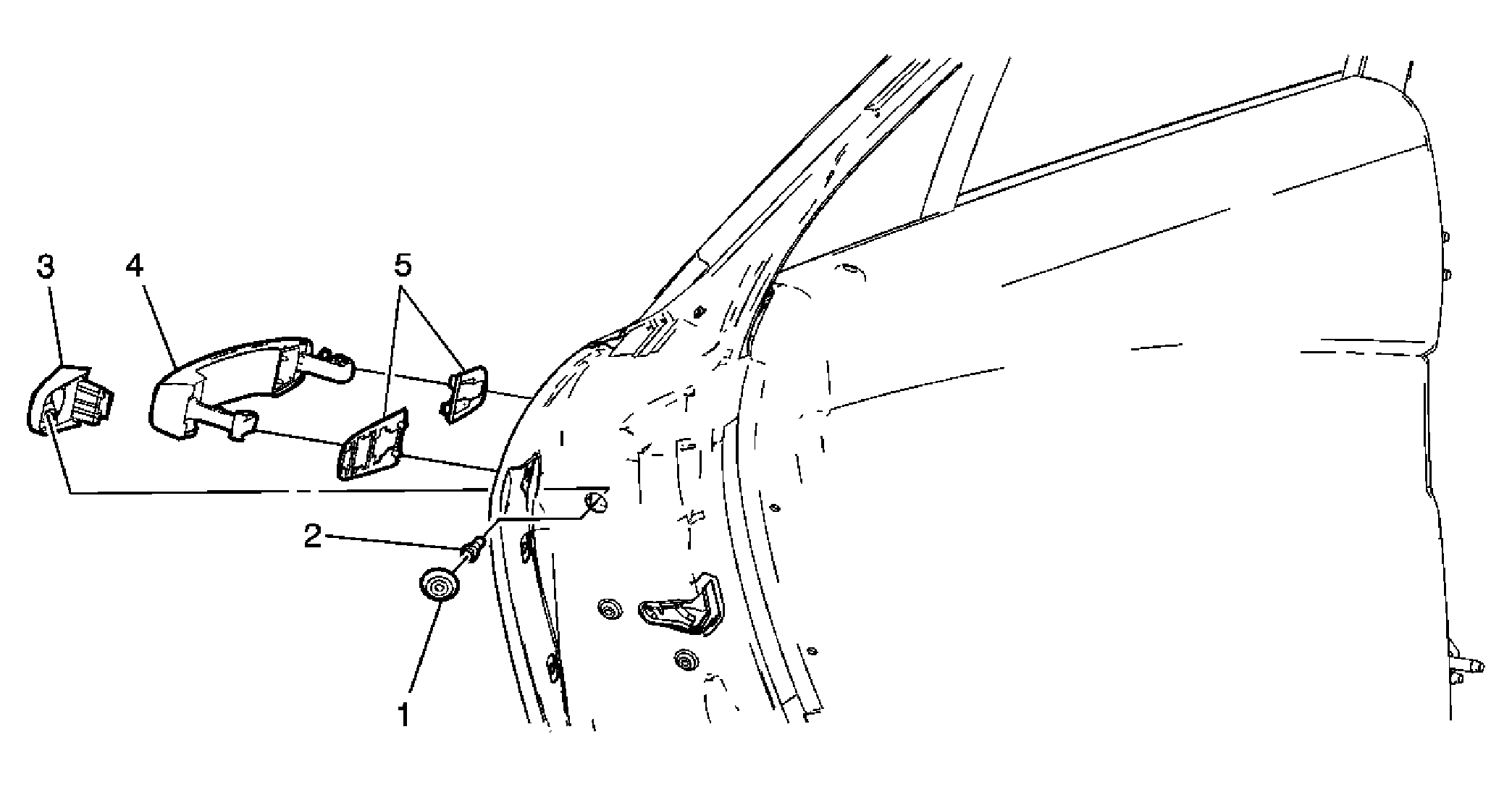

Fig 1: View Of Rear Side Door Outside Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bolt Access Plug Tip:  Use a plastic flat-bladed tool to remove.
2	Rear Side Door Outside Handle Cap Bolt NOTE: Refer to Fastener Notice . Tighten:  9 N.m (80 lb in)
3	Rear Door Outside Handle Cap
4	Rear Door Outside Handle Tip:  Pull the outside handle rearward to release it from the handle housing.
5	Rear Door Outside Handle Gasket
