Door Lock and Side Window Switch Replacement - Passenger Side (Outlook with RPO, AXA)

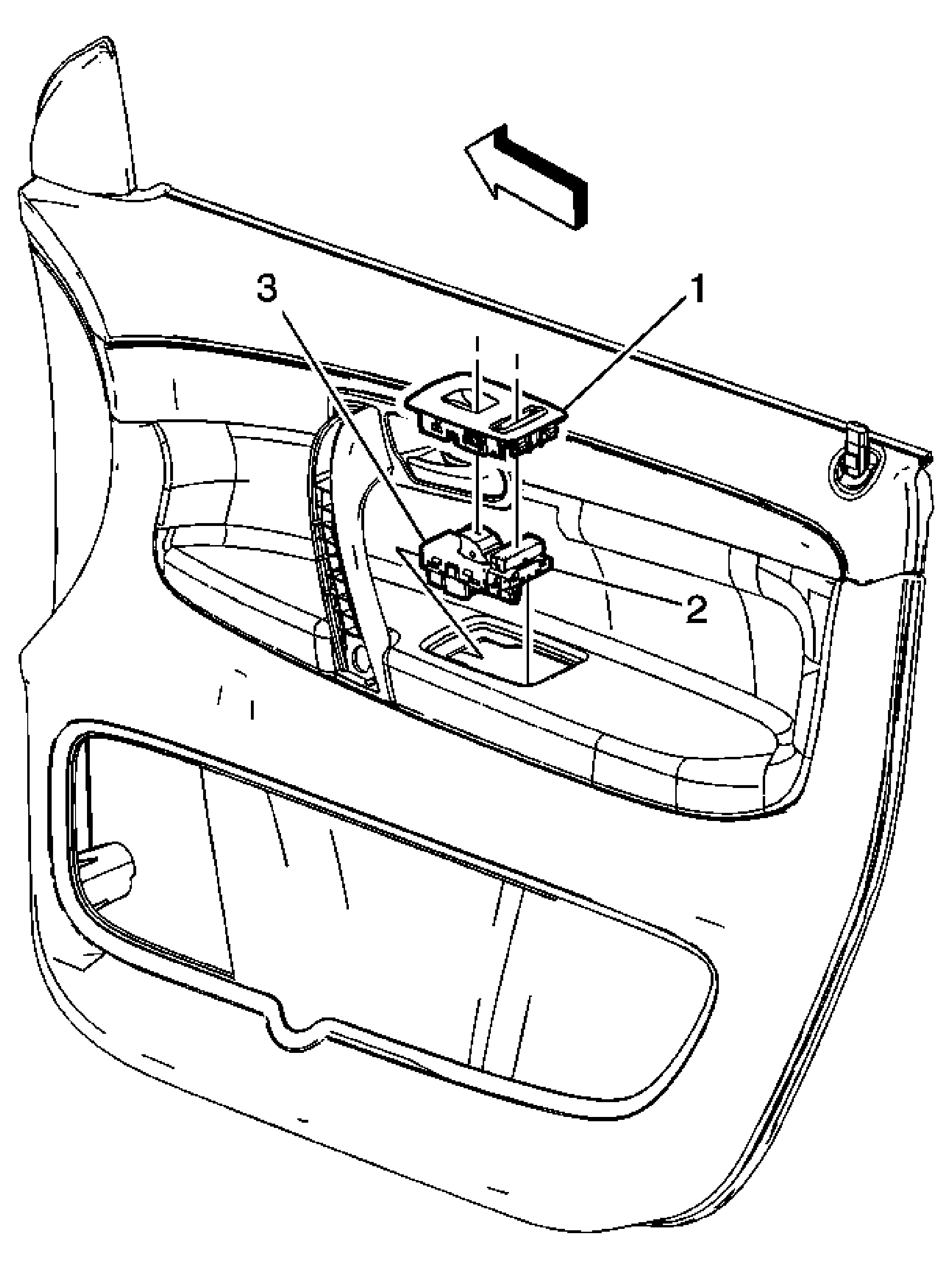

Fig 1: View Of Door Lock & Side Window Switch - Passenger Side (Outlook With RPO, AXA)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Side Door Lock and Side Window Switch Plate Procedure:  Use a flat-bladed tool to pry the switch plate from the door handle assembly.
2	Front Side Door Lock Switch Procedure:  Disconnect the electrical connector.
3	Front Side Door Window Switch Procedure:  Disconnect the electrical connector.
