Transfer Case Assembly Replacement

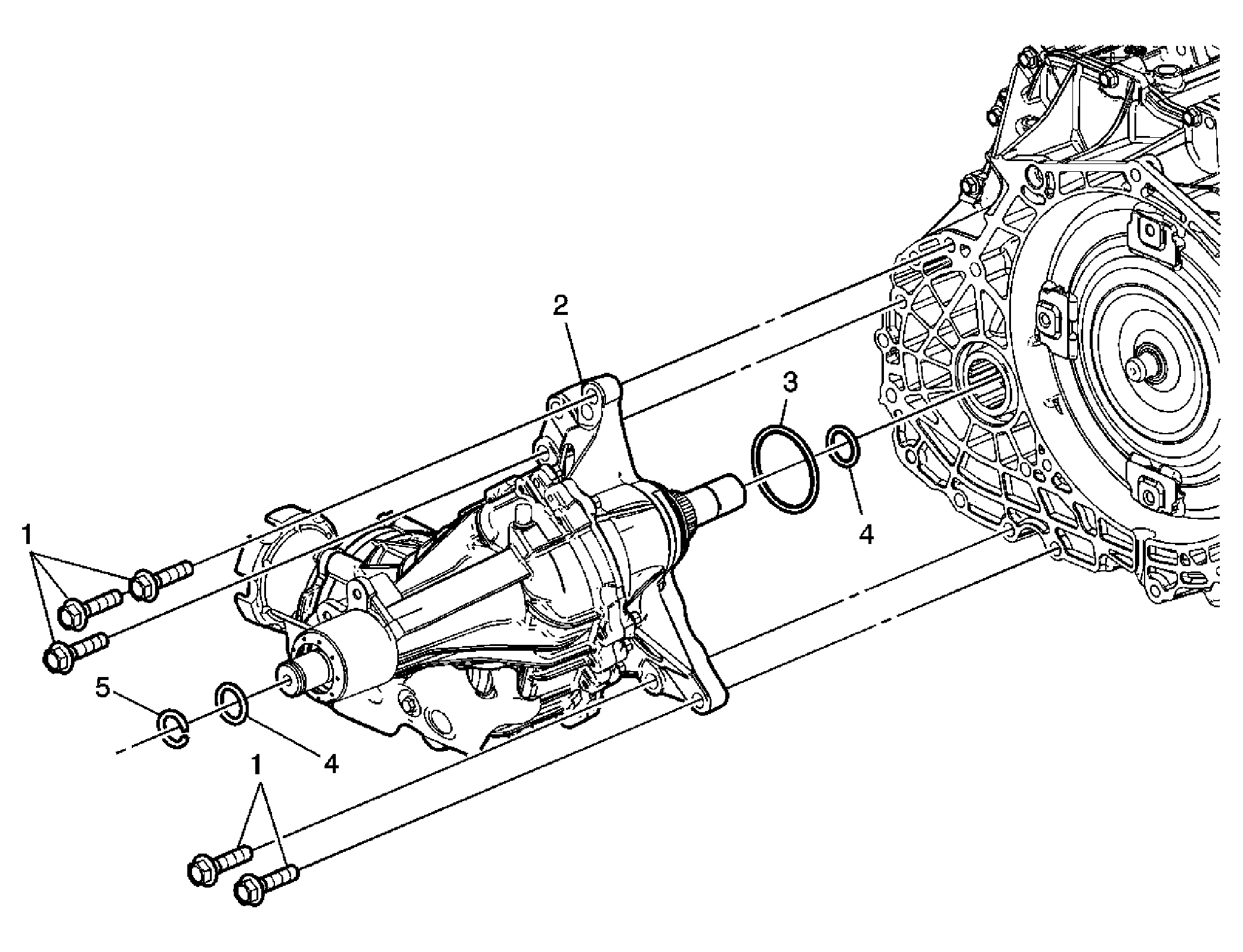

Fig 1: View Of Transfer Case Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Drain the transfer case fluid. Refer to Transfer Case Fluid Replacement . Remove the propeller shaft. Refer to Propeller Shaft Replacement . Remove the right wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement . Remove the exhaust flexible pipe. Refer to Exhaust Flexible Pipe Replacement . Remove the engine rear mount bracket. Refer to ENGINE REAR MOUNT REPLACEMENT . Support the transaxle with a jackstand.
1	Transfer Case Bolt (Qty: 5) NOTE: Refer to Fastener Notice . Tighten: 50 N.m (37 lb ft)
2	Transfer Case
3	Transfer Case O-Ring Seal
4	Intermediate Shaft O-Ring Seal (Qty: 2)
5	Half Shaft Retainer
