Transmission Mount Replacement - Left Side

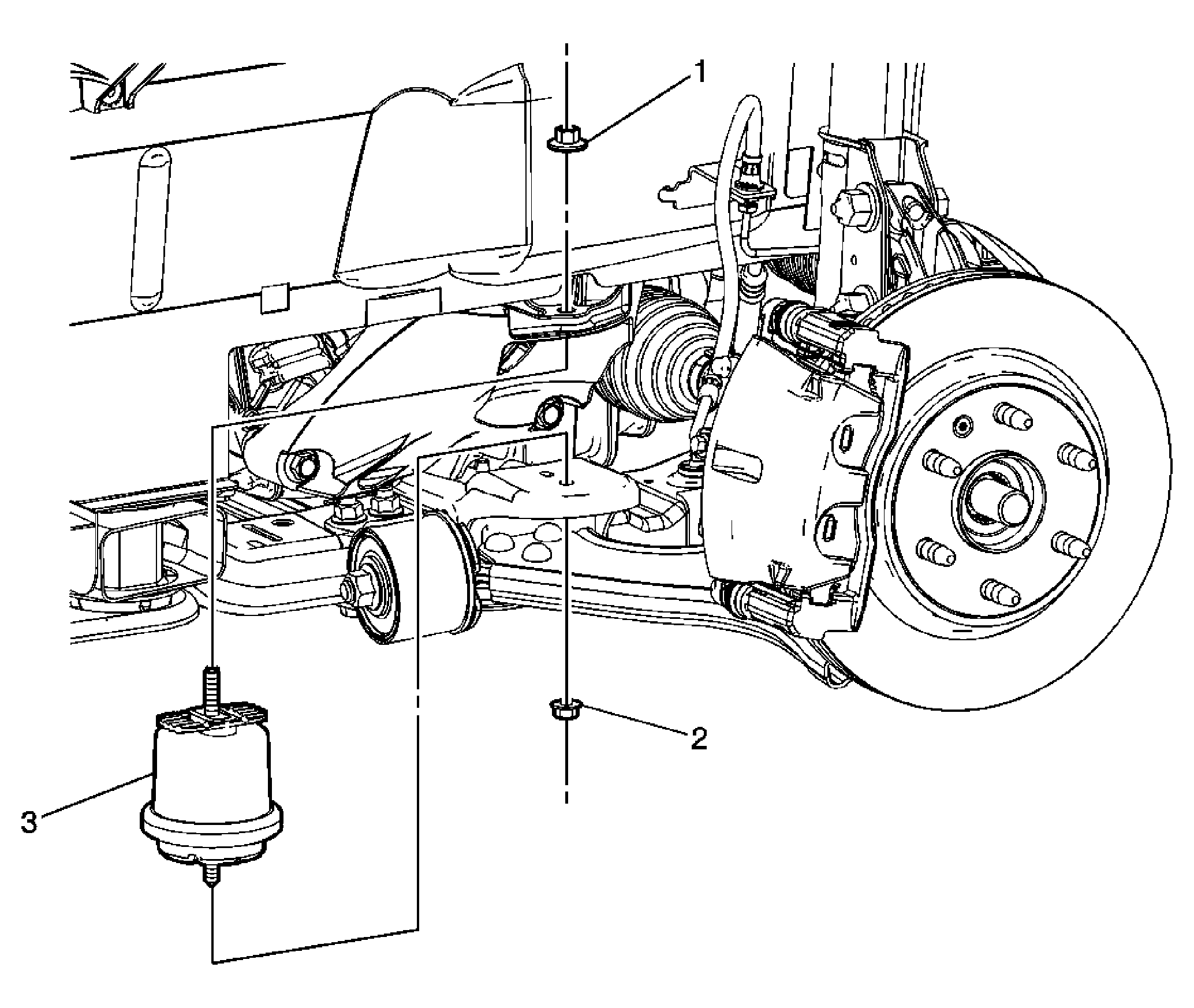

Fig 1: View Of Transmission Mount - Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the left engine splash shield. Refer to Engine Splash Shield Replacement . Support the transmission with a transmission jack.
1	Transmission Mount Nut NOTE: Refer to Fastener Notice . Tighten: 60 N.m (44 lb ft) Tip: The transmission mount nuts must be replaced once removed. When the nut has to be loosened or removed, threadlocker must be used in addition to using a new nut. Allow adhesive on new transmission mount nuts to cure for 24 hours after replacement.
2	Transmission Mount Nut Tighten: 75 N.m (55 lb ft) Tip: The transmission mount nuts must be replaced once removed. When the nut has to be loosened or removed, threadlocker must be used in addition to using a new nut. Allow adhesive on new transmission mount nuts to cure for 24 hours after replacement.
3	Transmission Mount Procedure: Using the transmission jack, lift the transmission just enough to gain clearance to remove the transmission mount from between the frame bracket and transmission mount bracket.
