SIR Schematics

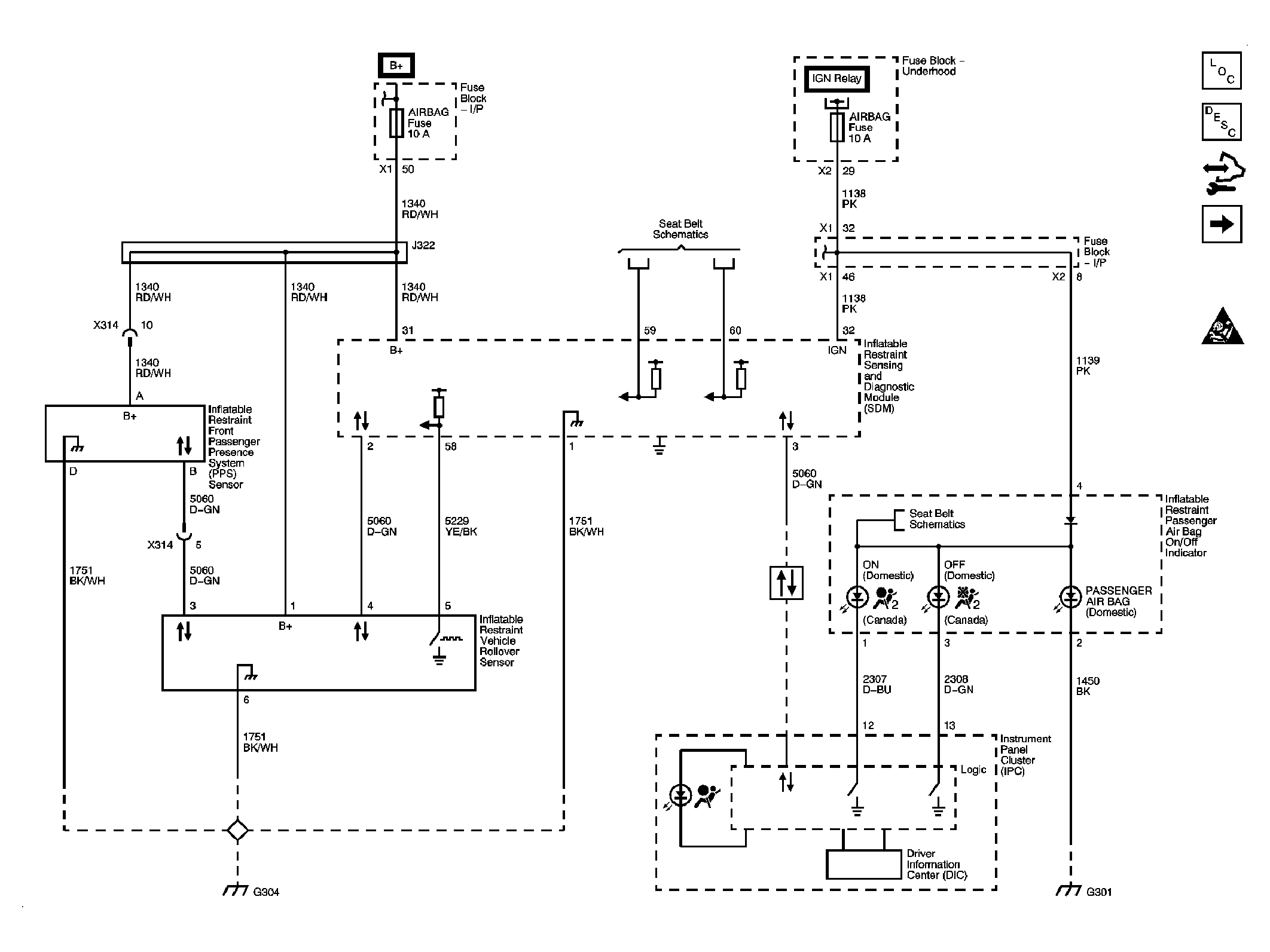

Fig 1: Module Power, Ground, Indicators, Rollover/Passenger Presence Sensors
GM1883172Courtesy of GENERAL MOTORS CORP.
Fig 2: Front End Sensors, Seat Belt Pretentioners, and Front Air Bags
GM1883173Courtesy of GENERAL MOTORS CORP.

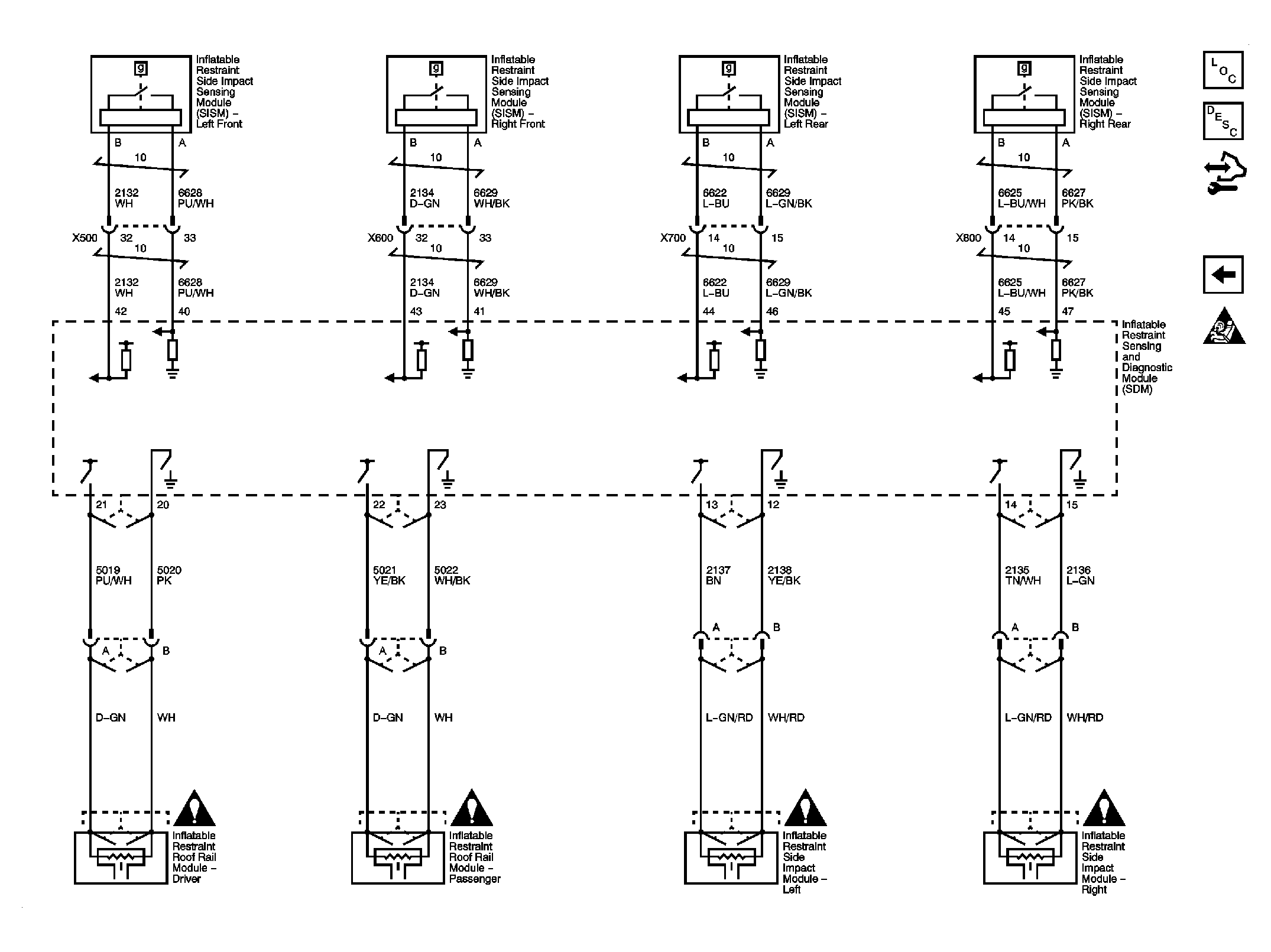

Fig 3: Side Impact Sensors and Roof Rail/Side Impact Air Bags
GM1883174Courtesy of GENERAL MOTORS CORP.
