Instrument Panel Center Air Outlet Replacement (Acadia)

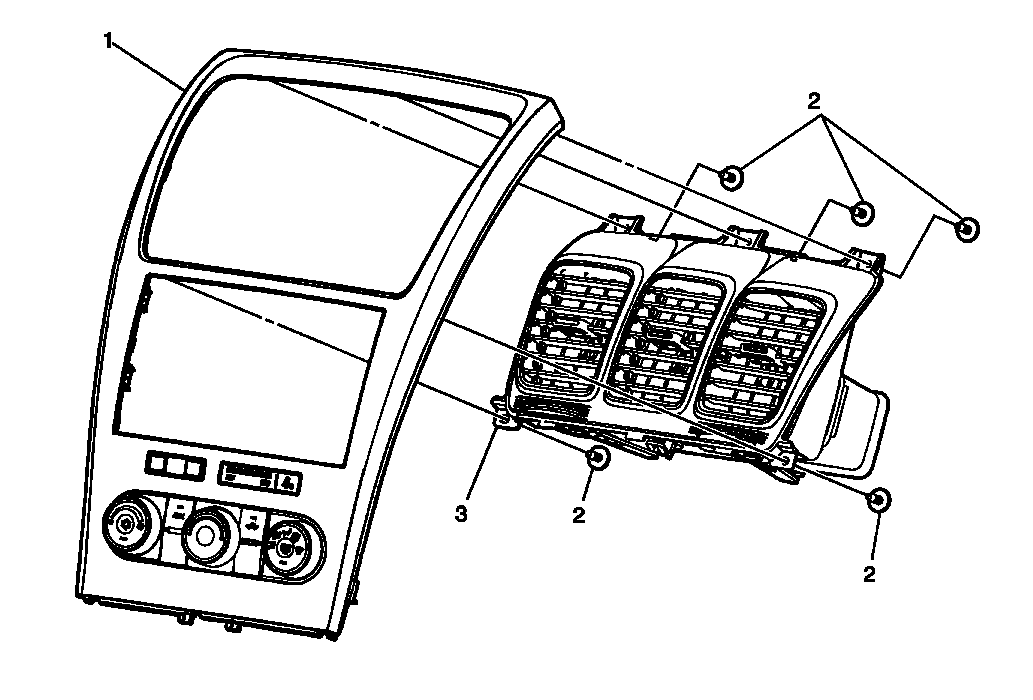

Fig 1: View Of Center Instrument Panel Accessory Trim Plate & Center Air Outlet (Acadia)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Accessory Trim Plate Refer to Instrument Panel Accessory Trim Plate Replacement (Acadia) or Instrument Panel Accessory Trim Plate Replacement (Enclave) or Instrument Panel Accessory Trim Plate Replacement (Outlook) .
2	Instrument Panel Center Air Outlet Screw (Qty: 5) NOTE: Refer to Fastener Notice . Tighten:  2 N.m (18 lb in)
3	Instrument Panel Center Air Outlet Assembly
