Instrument Cluster Schematics

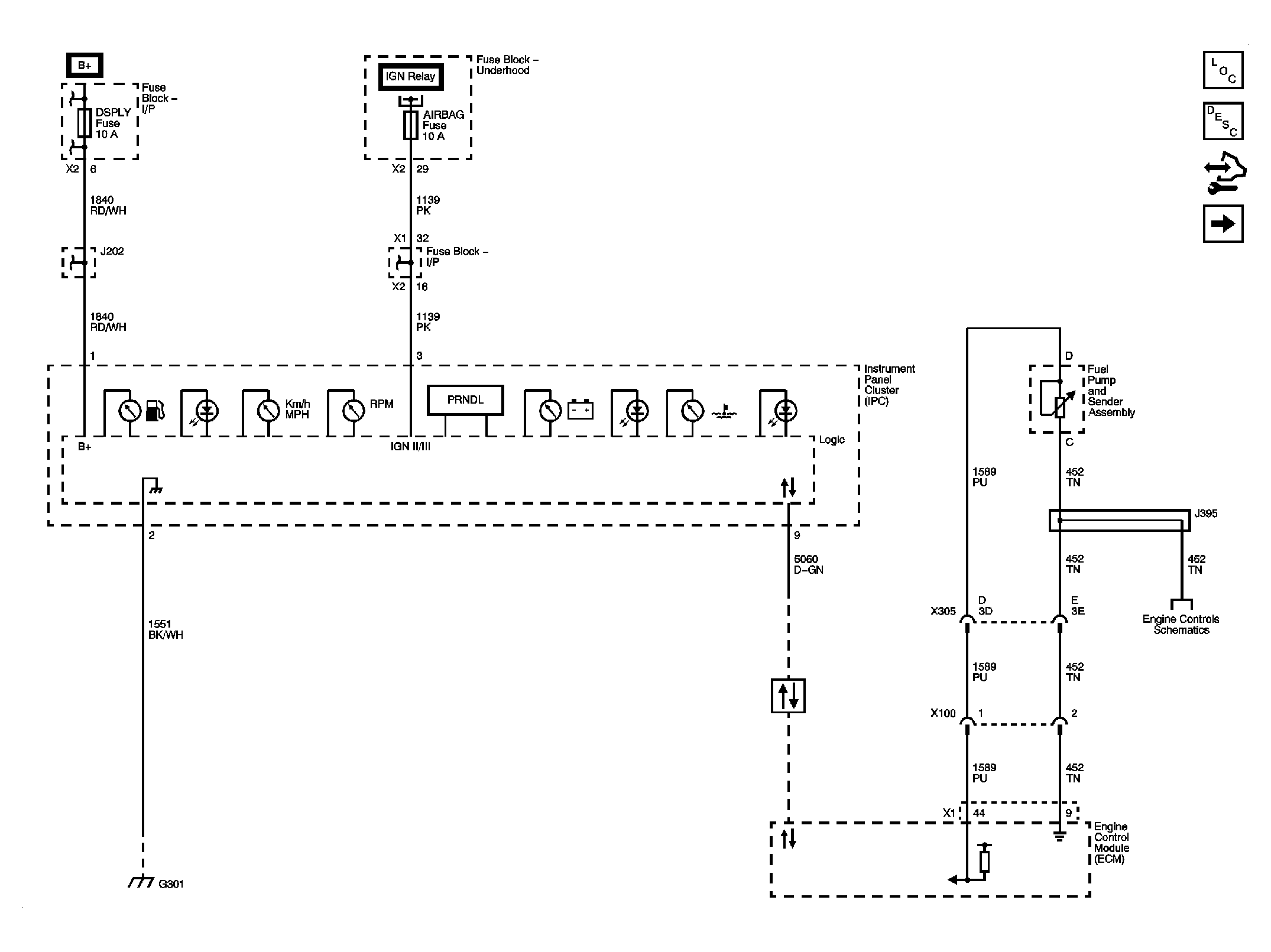

Fig 1: Gages, Ground, and Power
GM1883151Courtesy of GENERAL MOTORS CORP.

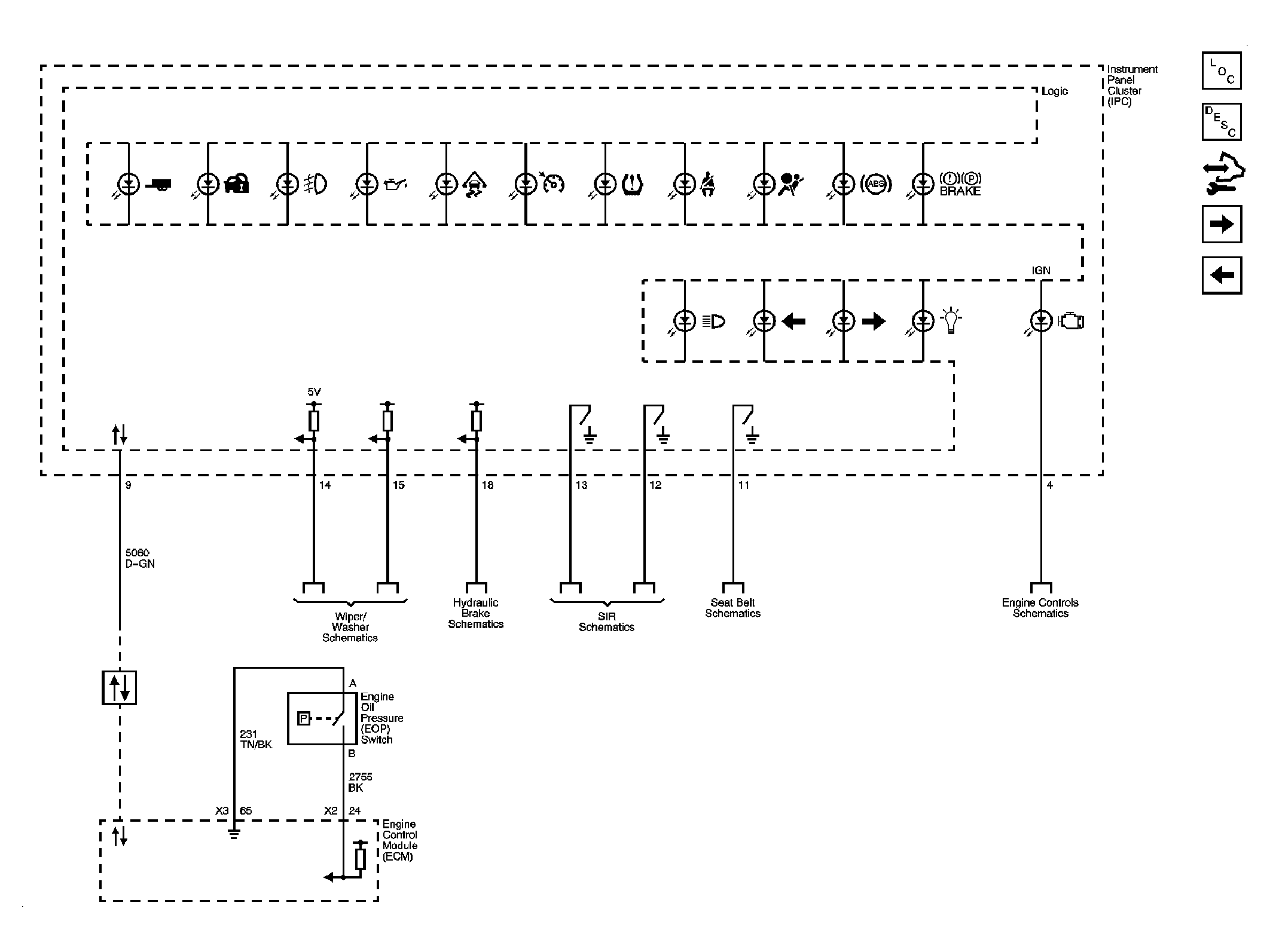

Fig 2: Indicators and Lighting
GM1883152Courtesy of GENERAL MOTORS CORP.
Fig 3: DIC - UH9
GM1883154Courtesy of GENERAL MOTORS CORP.
