Moveable Window Schematics (AXC/AXE)

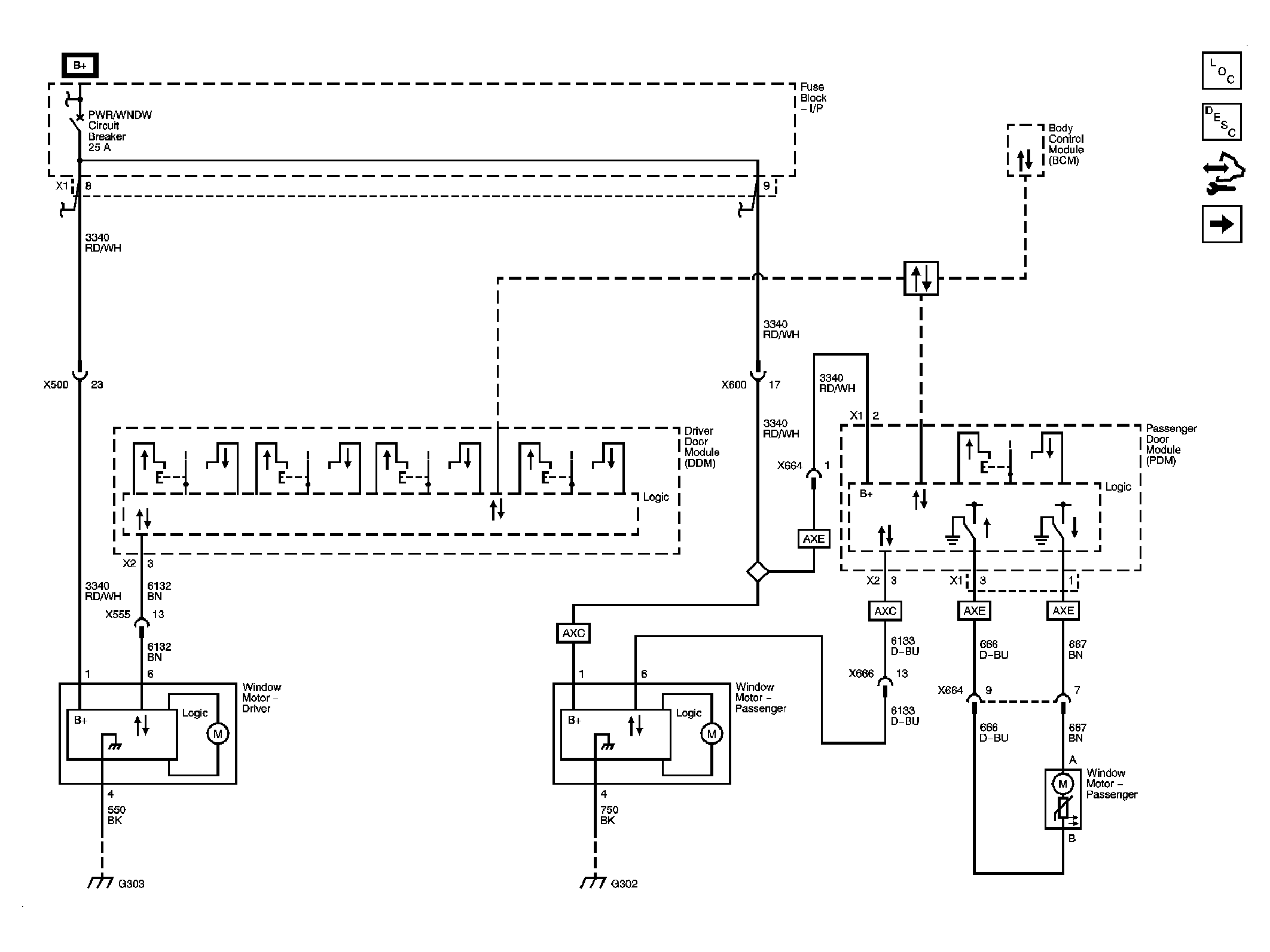

Fig 1: Front

GM1883211

Courtesy of GENERAL MOTORS CORP.

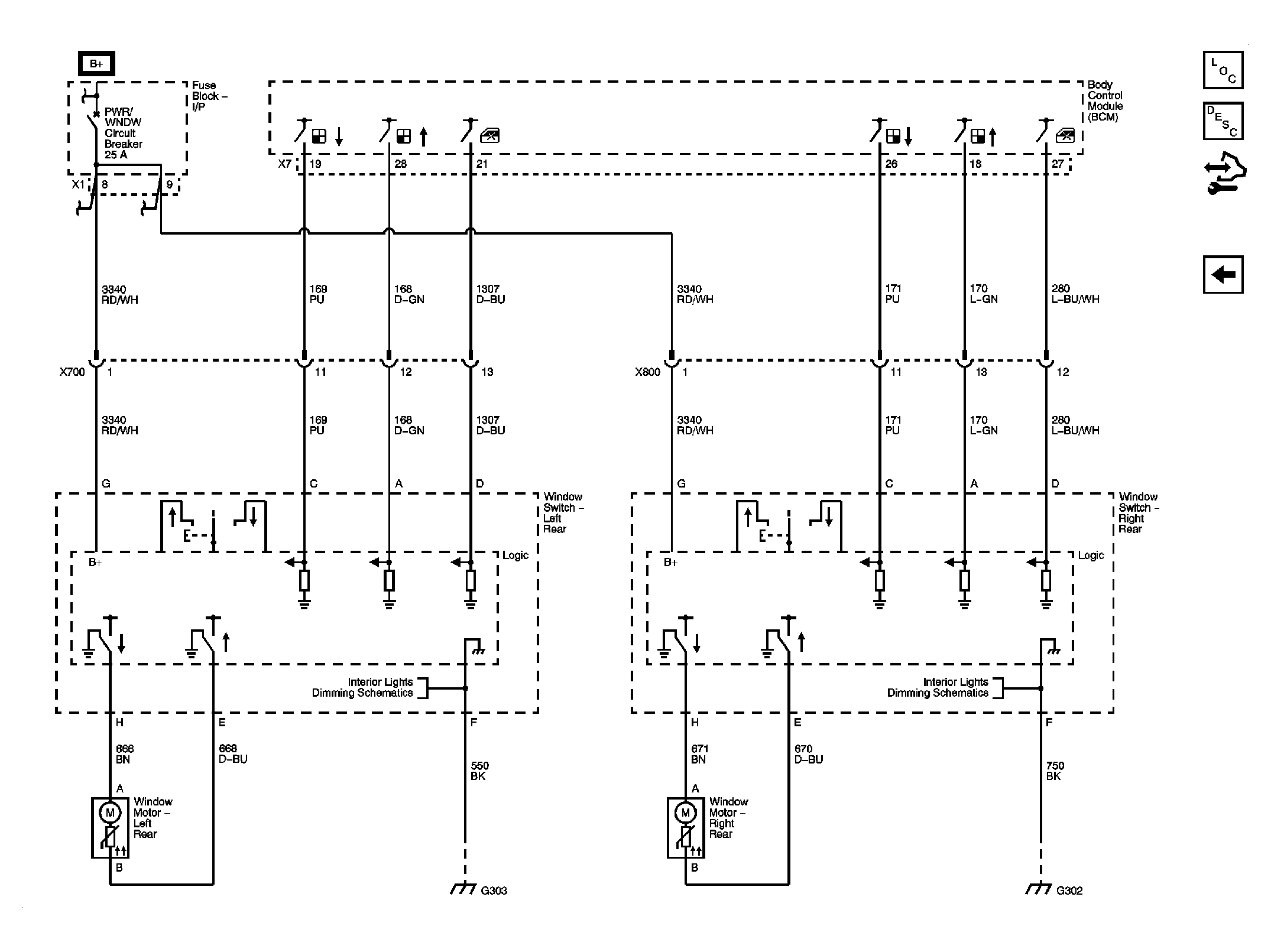

Fig 2: Rear

GM1883212

Courtesy of GENERAL MOTORS CORP.
