Door Window Regulator Motor Replacement

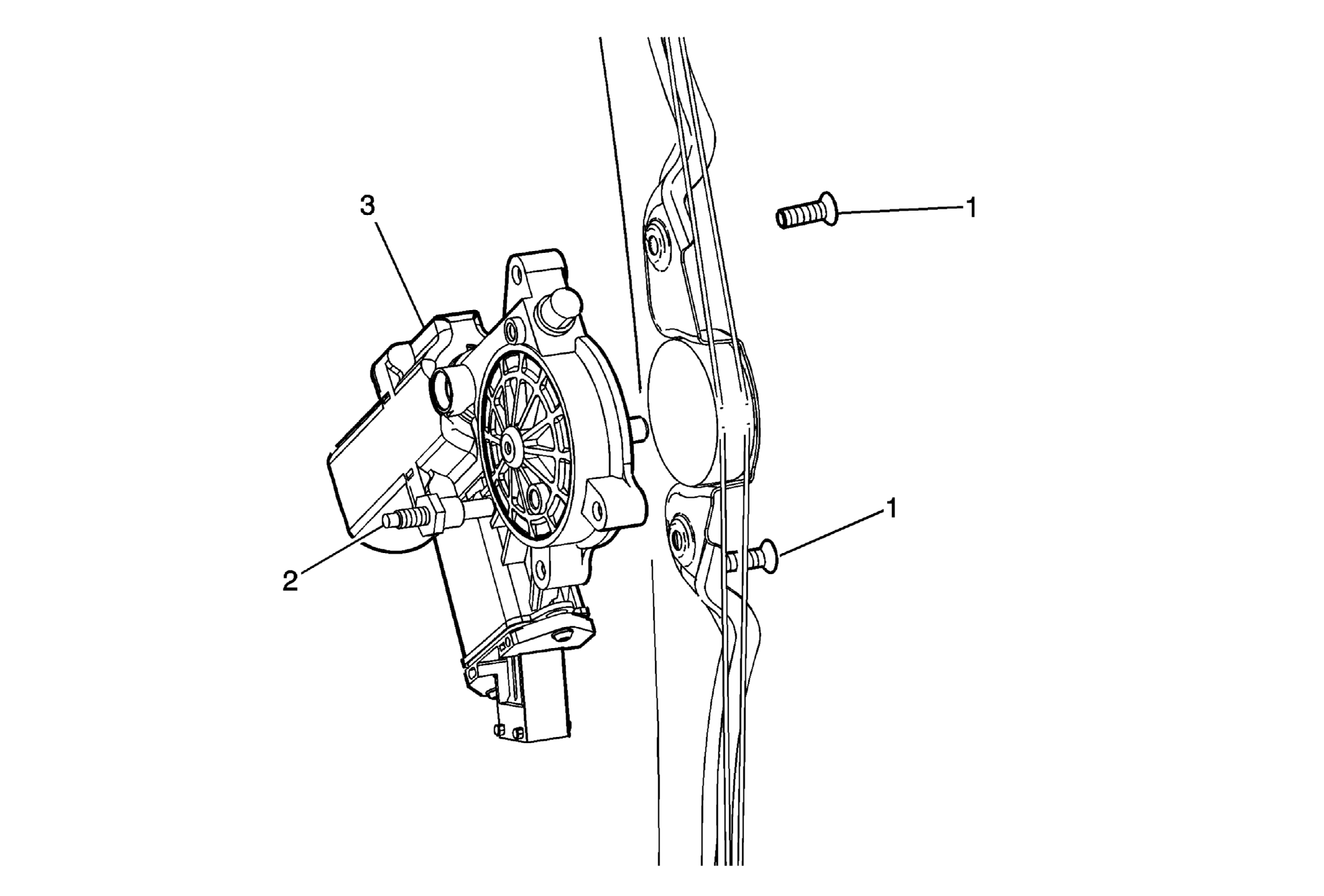

Fig 1: View Of Front Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the window regulator. Refer to Front Side Door Window Regulator Replacement or Rear Side Door Window Regulator Replacement .
1	Door Window Regulator Motor Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 5 N.m (9 lb in)
2	Door Window Regulator Motor Stud Bolt Tighten: 5 N.m (9 lb in)
3	Door Window Regulator Motor Procedure: Reprogram the window motor. Refer to Control Module References .
