Heated/Cooled Seat Schematics (Except A45)

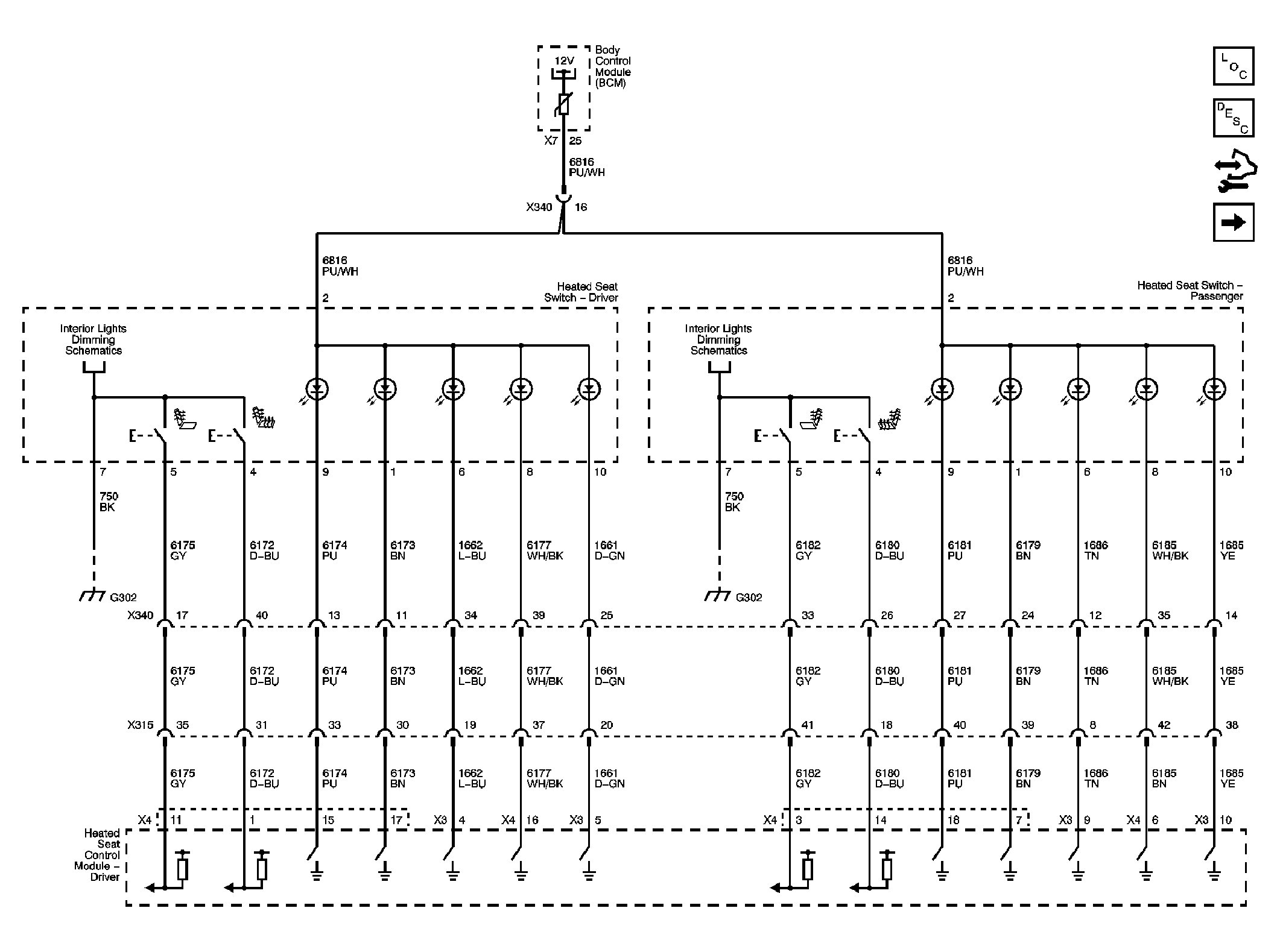

Fig 1: Indicators and Switches

GM1883230

Courtesy of GENERAL MOTORS CORP.

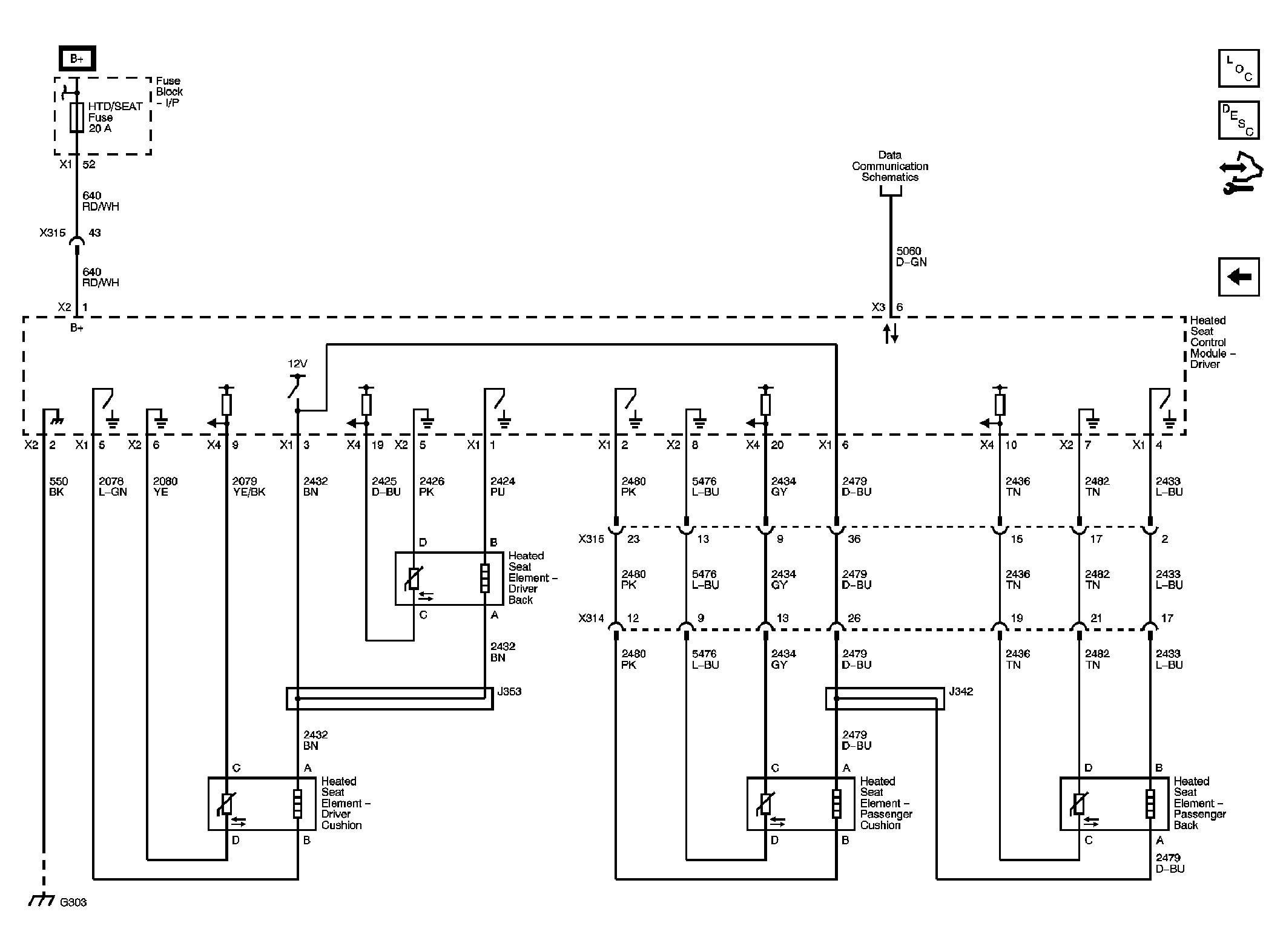

Fig 2: Heating Elements

GM1883231

Courtesy of GENERAL MOTORS CORP.
