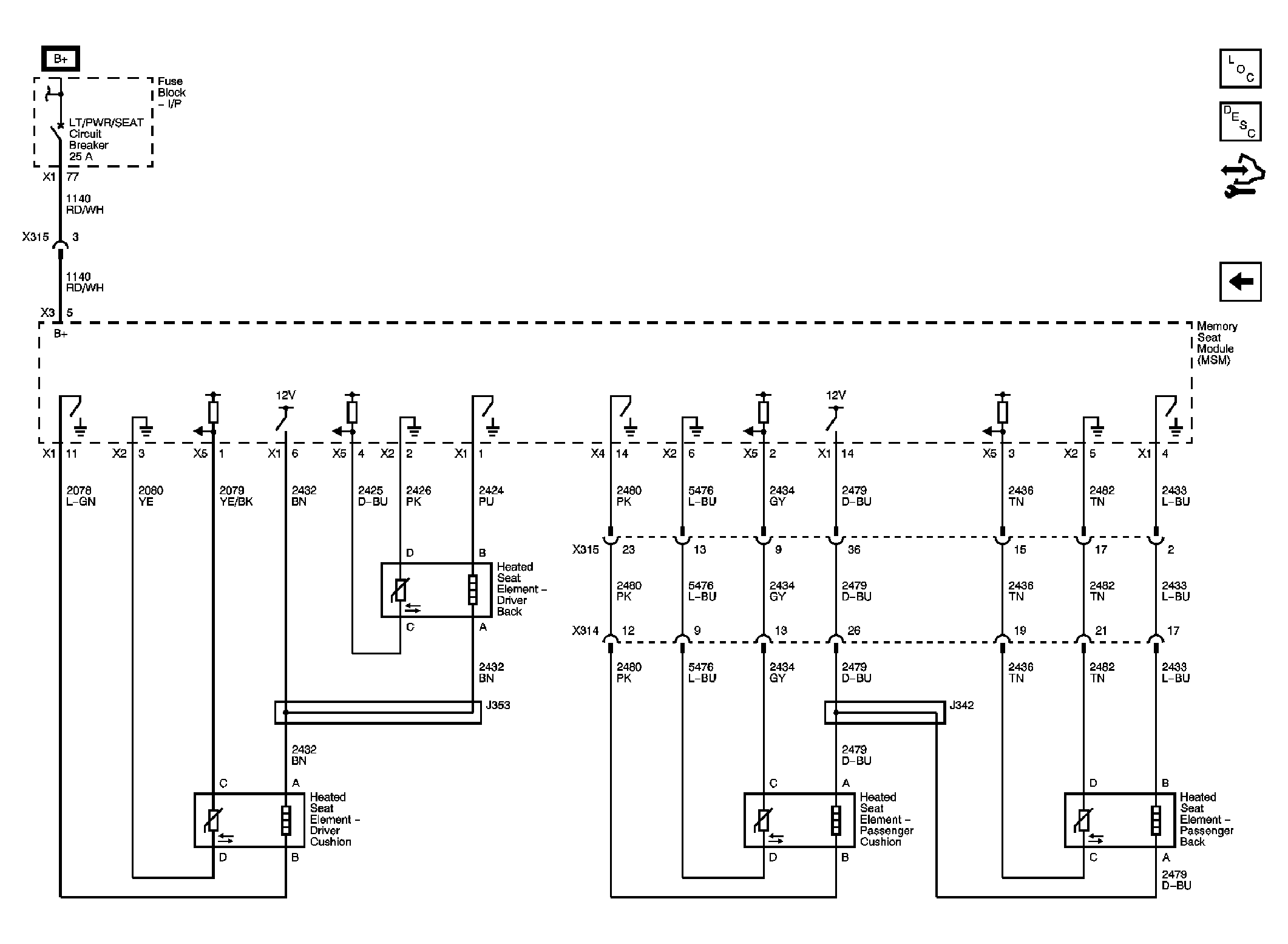

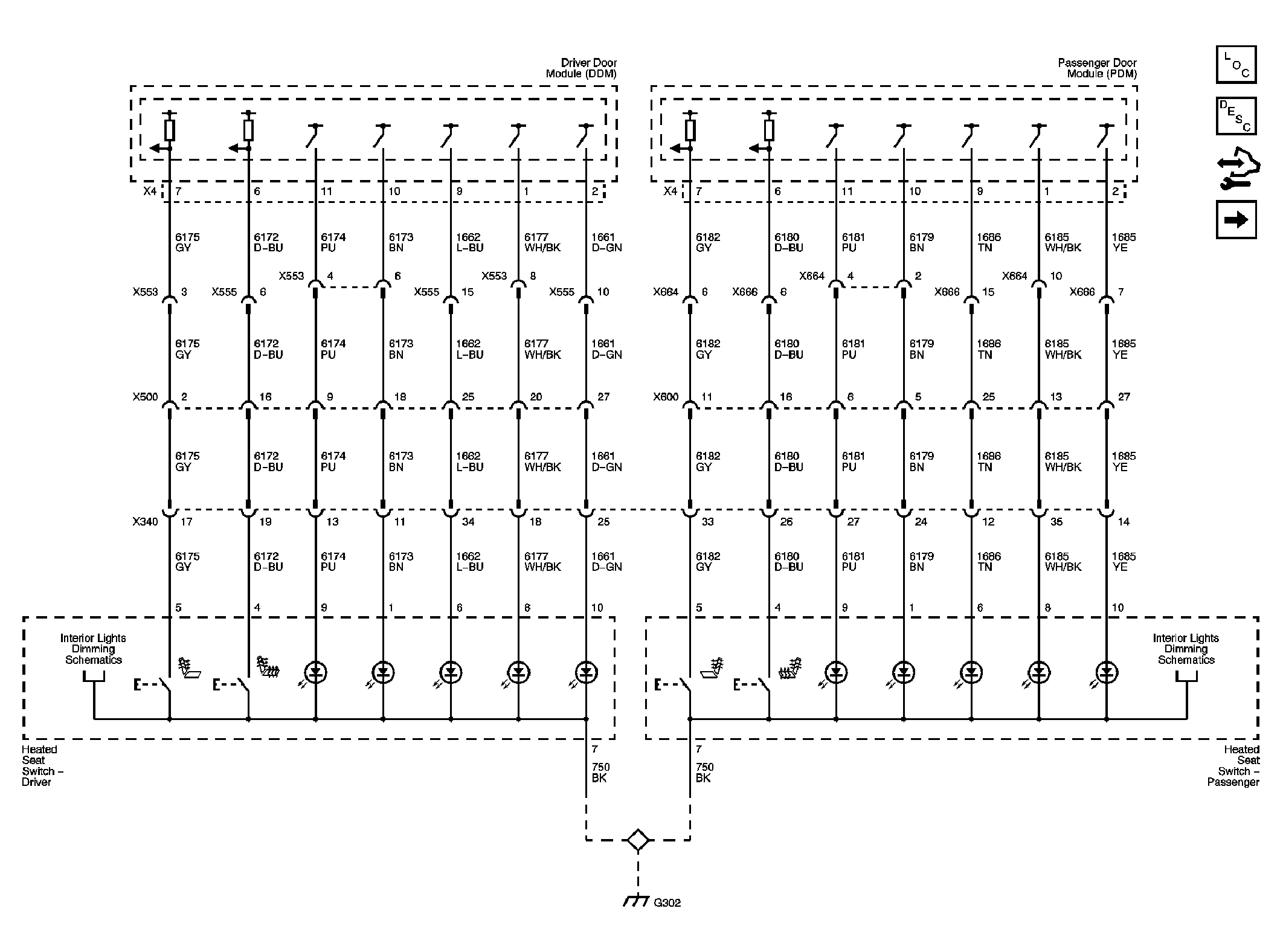

Home >> GMC >> 2008 >> Acadia SLT, AWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Heating System & Seat Cooling System >> Schematic and Routing Diagrams >> Heated/Cooled Seat Schematics (A45)
