Driver Seat Schematics

Fig 1: AG1
GM1883224Courtesy of GENERAL MOTORS CORP.

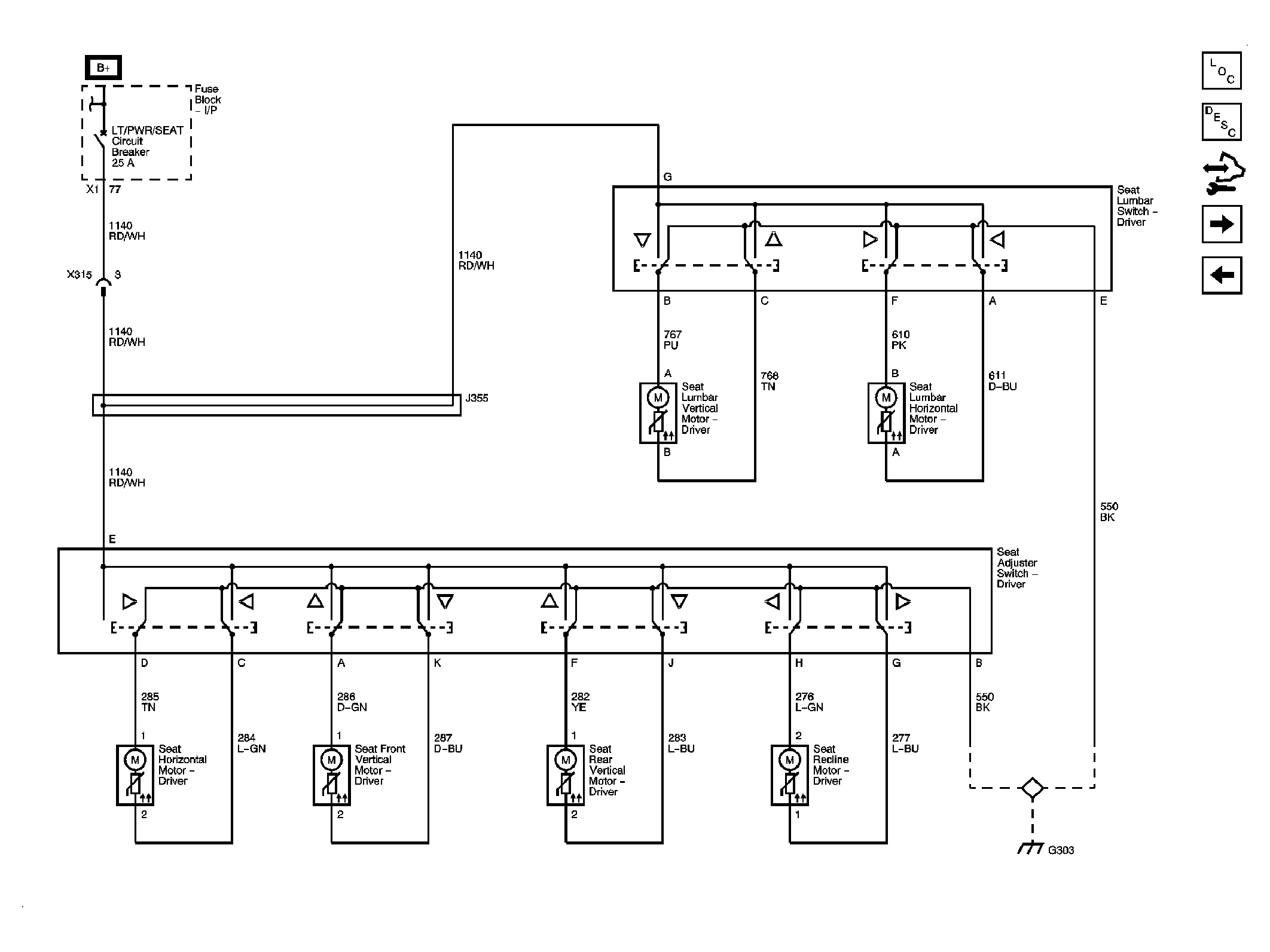

Fig 2: AH5
GM1883225Courtesy of GENERAL MOTORS CORP.
Fig 3: AG3 Module Power and Data Communication, Driver Switches
GM1883226Courtesy of GENERAL MOTORS CORP.

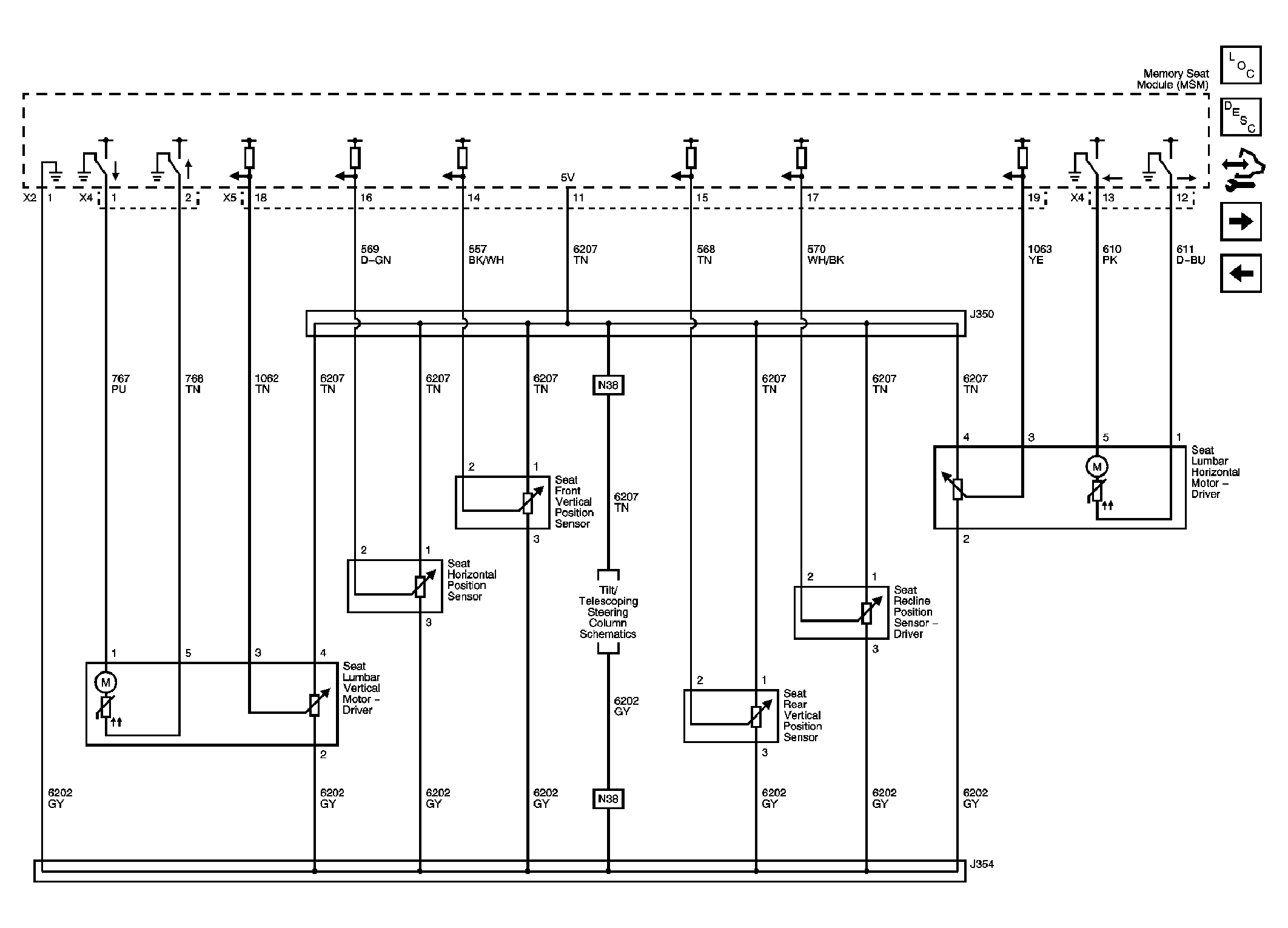

Fig 4: AG3 Position Sensors and Lumbar Motors
GM1883227Courtesy of GENERAL MOTORS CORP.
Fig 5: AG3 Module Ground, Recline, Horizontal, and Vertical Motors
GM1883228Courtesy of GENERAL MOTORS CORP.
