Front Floor Console Cup Holder Housing Replacement

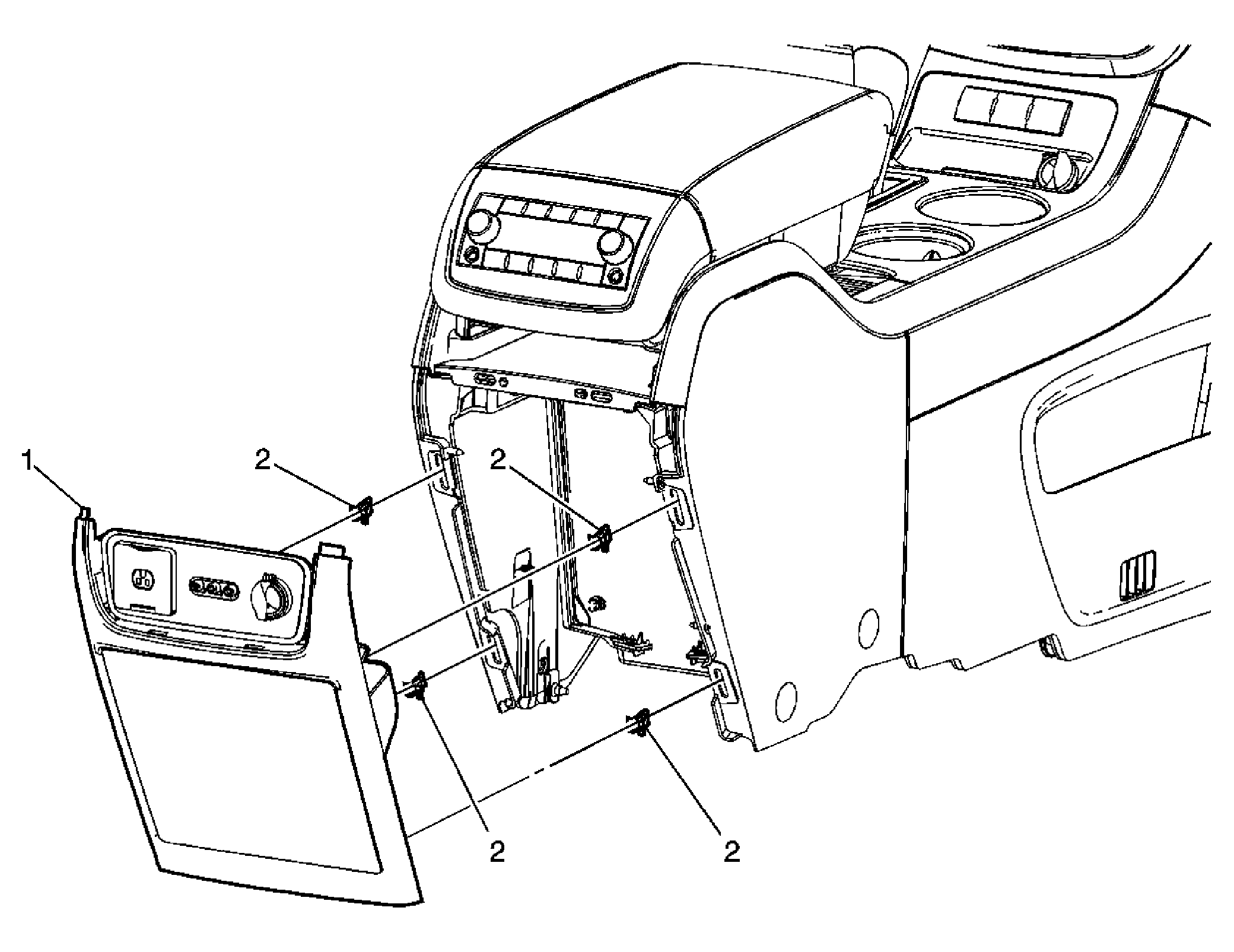

Fig 1: Identifying Front Floor Console Rear Trim Plate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the floor console accessory trim plate applique. Refer to Front Floor Console Accessory Trim Plate Applique Replacement .
1	Front Floor Console Rear Trim Plate Procedure Disconnect the electrical connections. When replacing the front floor console rear trim plate, transfer all necessary components.
2	Retainer Clip (Qty: 4)

Callout

Component Name

Preliminary Procedure:
Remove the floor console accessory trim plate applique. Refer to Front Floor Console Accessory Trim Plate Applique Replacement .

Front Floor Console Rear Trim Plate

Procedure

Disconnect the electrical connections.
When replacing the front floor console rear trim plate, transfer all necessary components.

Retainer Clip (Qty: 4)
