Liftgate Schematics

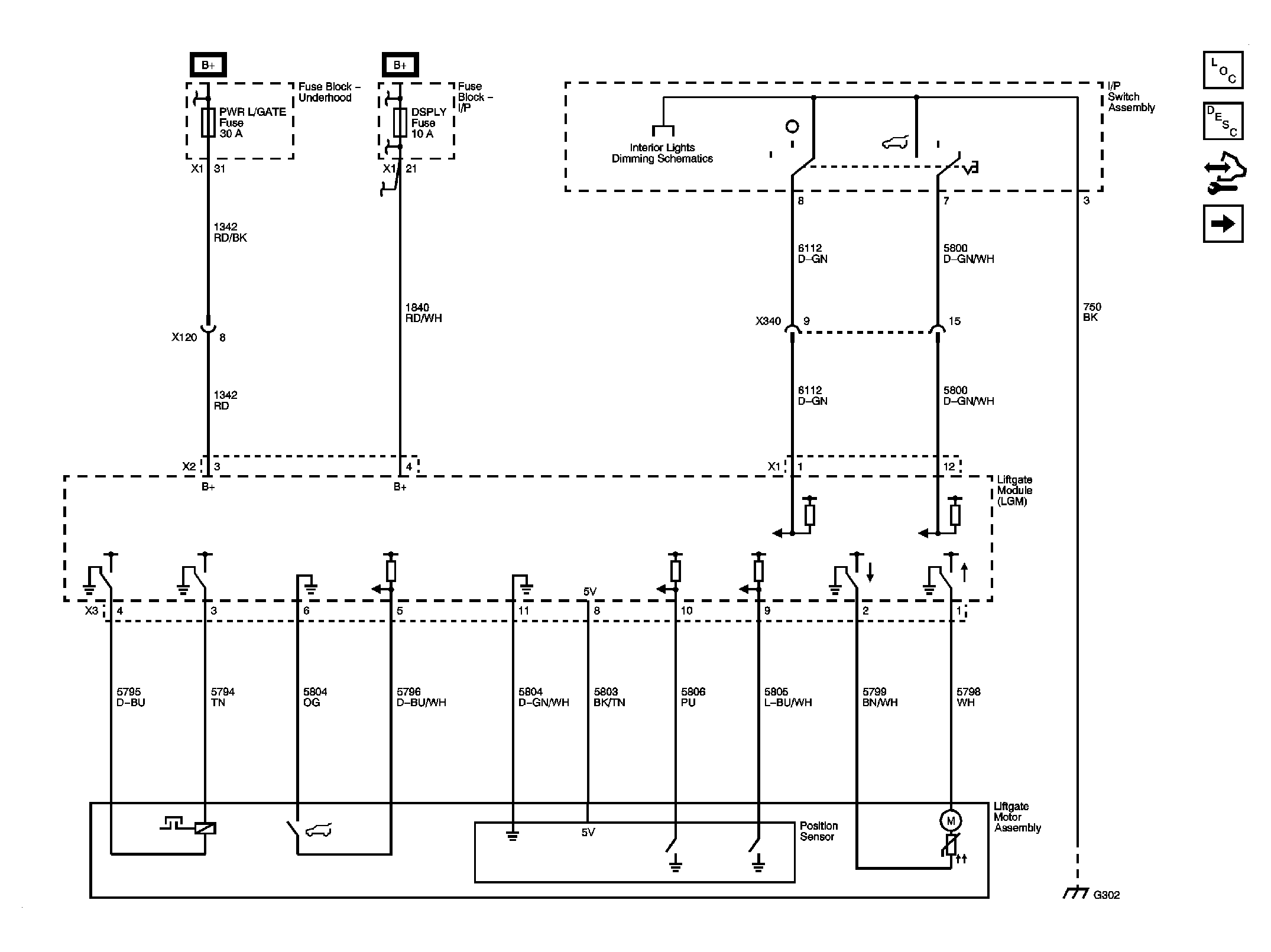

Fig 1: Module Power, Ground, Data Communication, I/P Switch, and Liftgate Motor
GM1883222Courtesy of GENERAL MOTORS CORP.

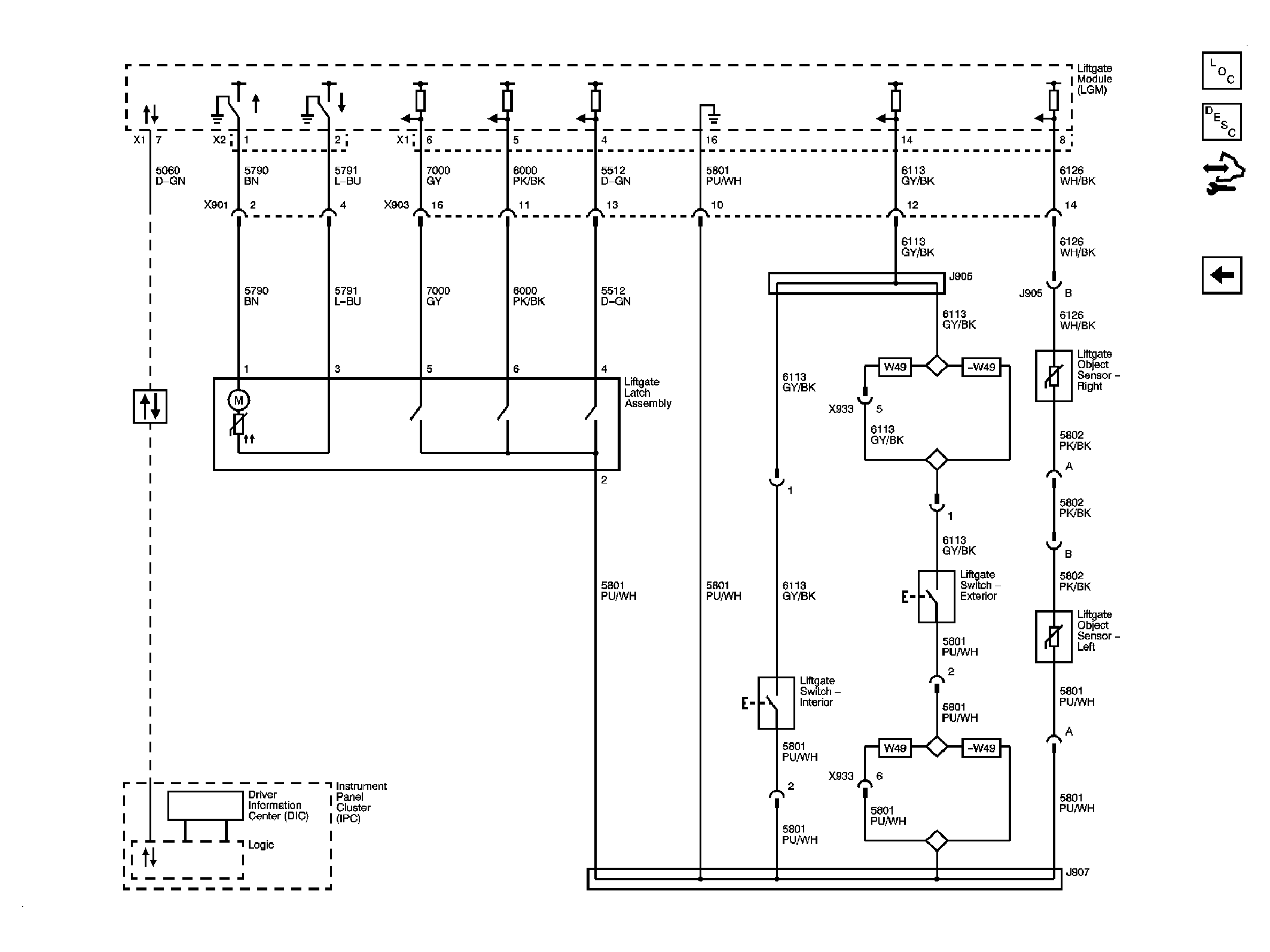

Fig 2: Indicator, Latch, Object Sensors, and Switches
GM1883223Courtesy of GENERAL MOTORS CORP.
