Door Control Module Schematics

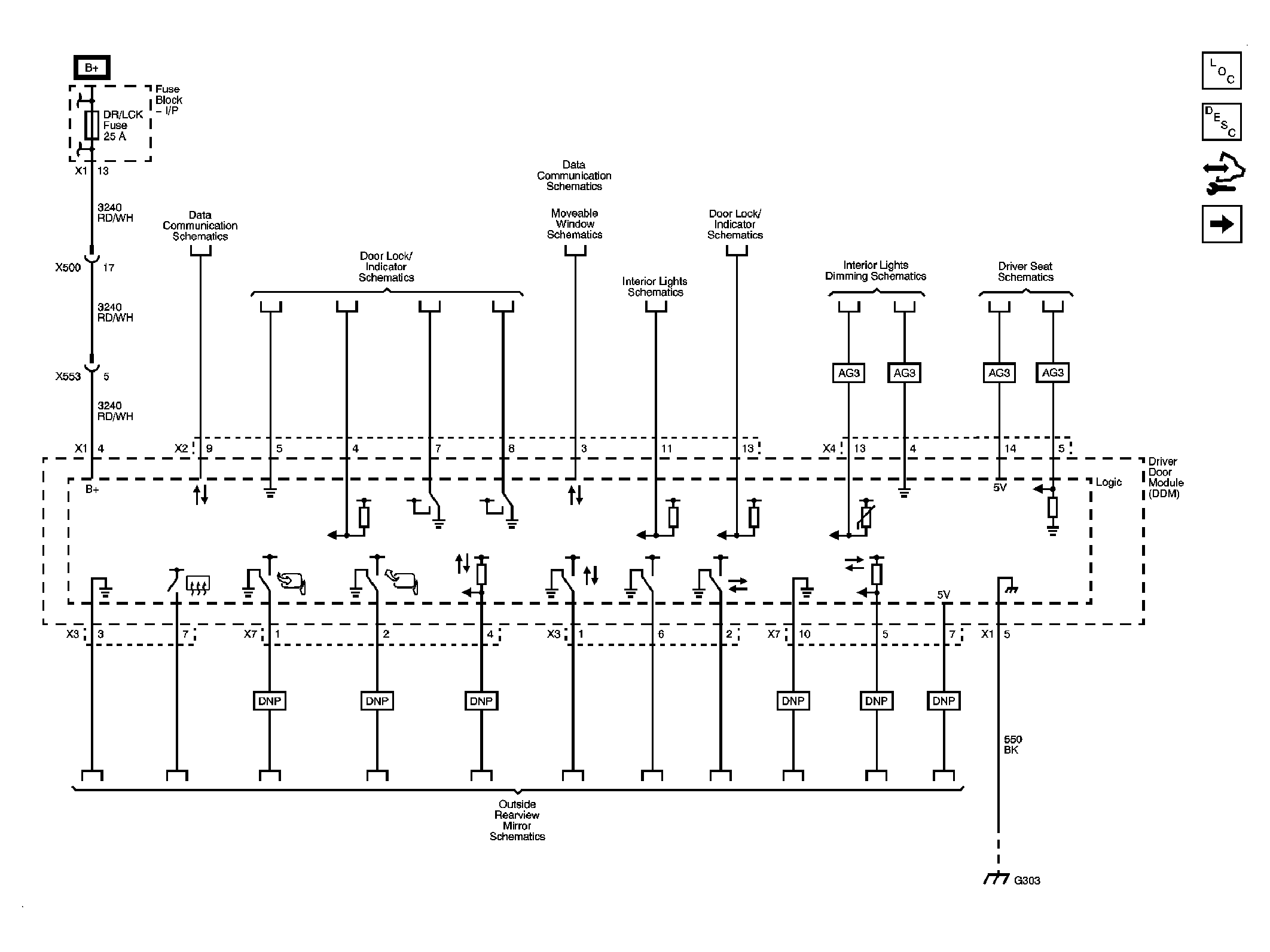

Fig 1: DDM Power, Ground, and all except KA1 References
GM1883219Courtesy of GENERAL MOTORS CORP.

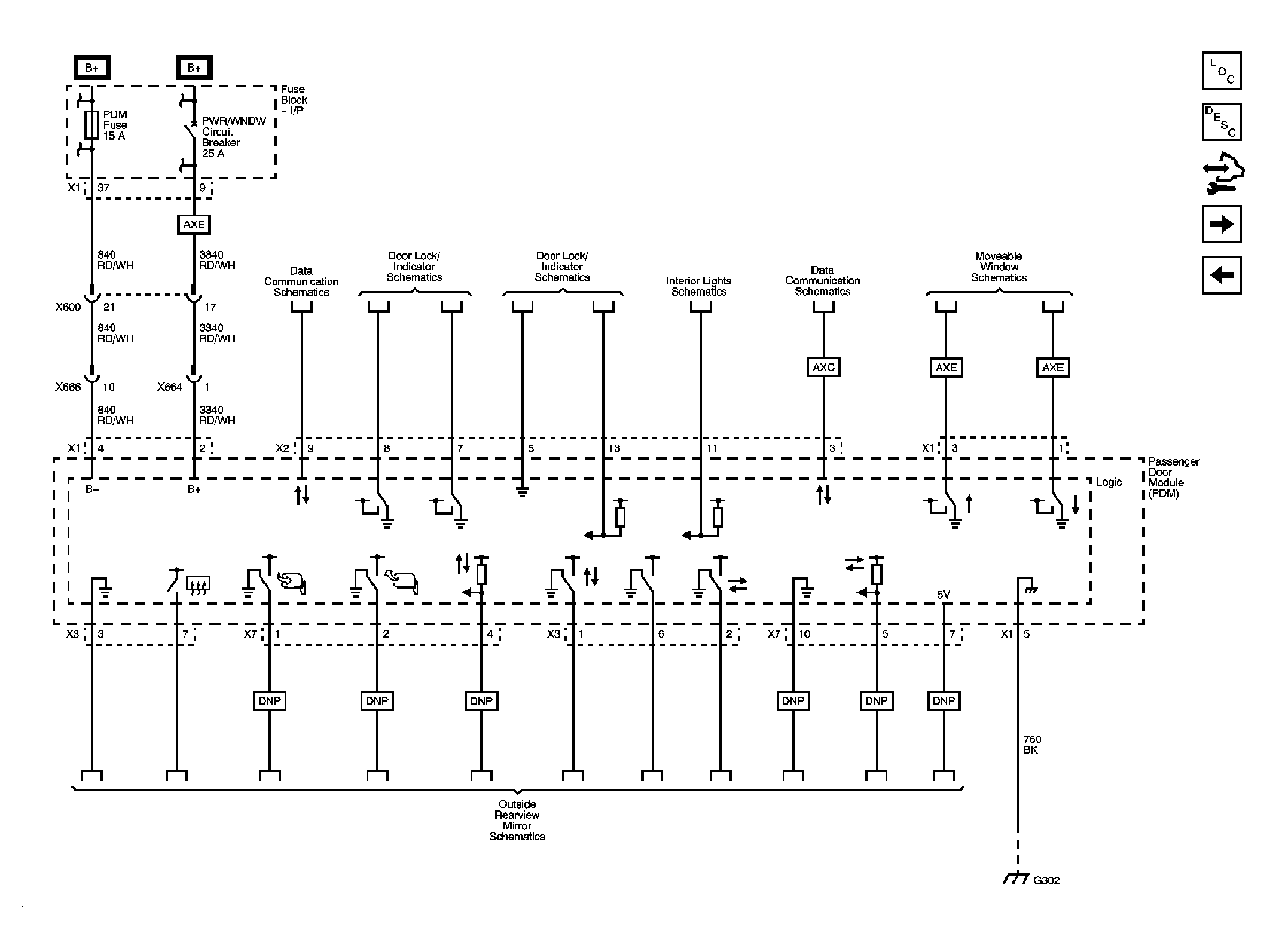

Fig 2: PDM Power, Ground, and all except KA1 References
GM1883220Courtesy of GENERAL MOTORS CORP.
Fig 3: KA1 References
GM1883221Courtesy of GENERAL MOTORS CORP.
