Liftgate Close Actuator Bracket Replacement

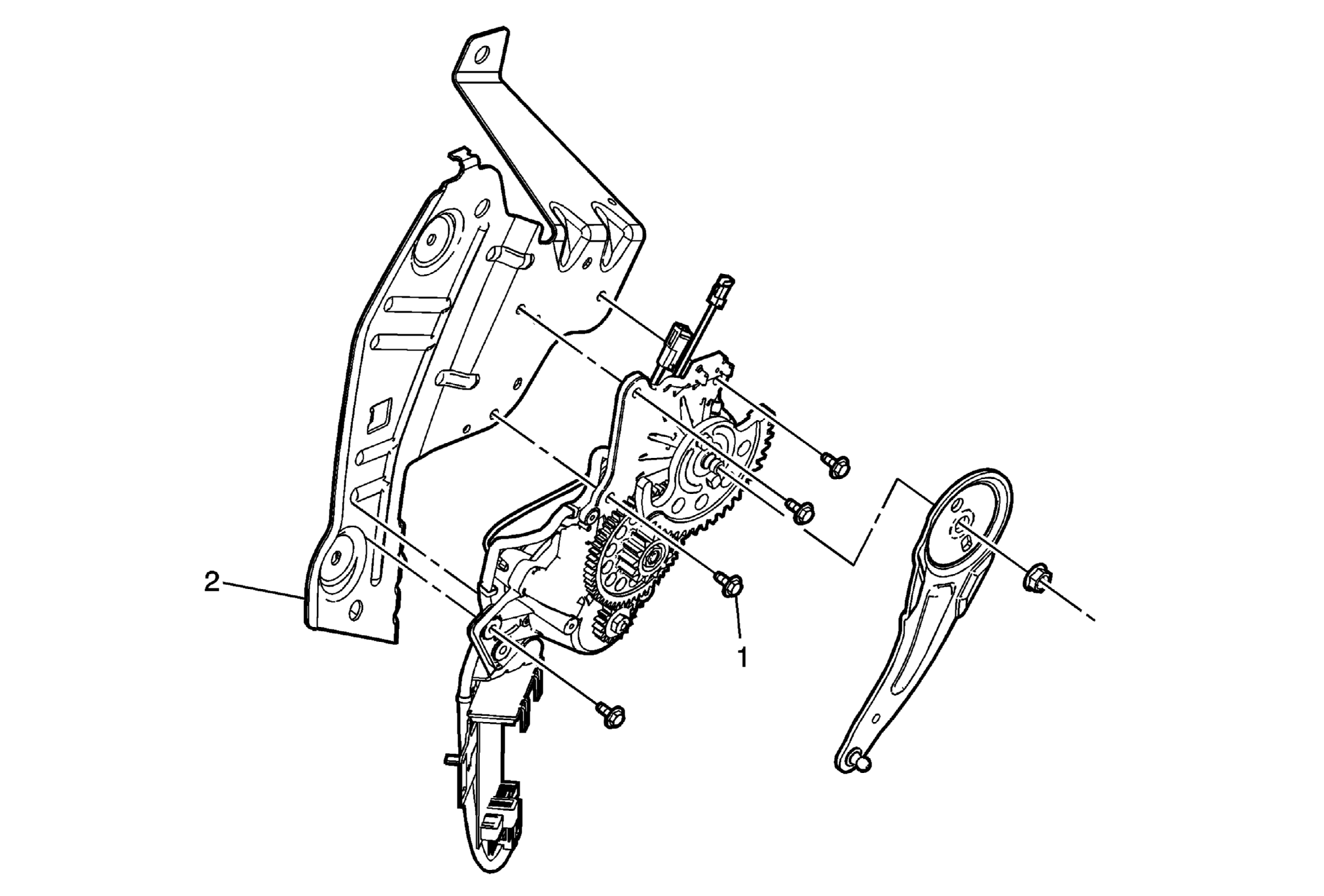

Fig 1: Identifying Liftgate Close Actuator Bracket
GM1848747Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the body side trim panel. Refer to Rear Quarter Lower Trim Panel Replacement (Acadia/OUTLOOK with E61) or Rear Quarter Lower Trim Panel Replacement (Acadia/OUTLOOK without E61) or Rear Quarter Lower Trim Panel Replacement (Enclave with E61) or Rear Quarter Lower Trim Panel Replacement (Enclave without E61) .
  2. Remove the liftgate close actuator control module. Refer to Liftgate Actuator Replacement .
1 Liftgate Close Actuator Bracket Bolts (Qty: 5)
NOTE: Refer to Fastener Notice .

Tighten:  30 N.m (22 lb ft)
2 Liftgate Close Actuator Bracket
