Door Lock and Side Window Switch Replacement - Passenger Side (Enclave with RPO AXE or AXC)

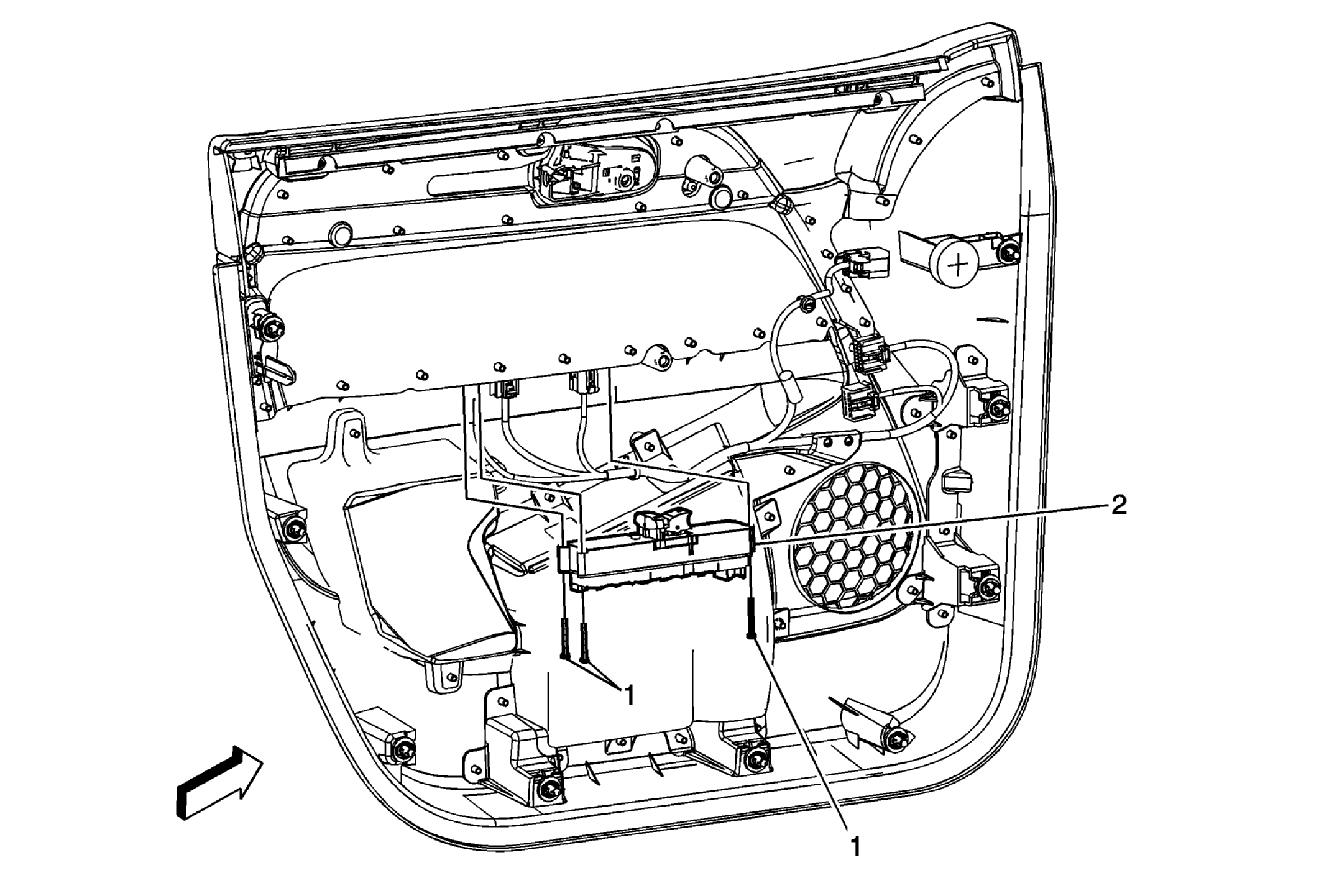

Fig 1: Identifying Front Side Door Lock & Side Window Switch - Passenger Side (Enclave With RPO AXE Or AXC)
GM1923793Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the passenger side door trim panel. Refer to Front Side Door Trim Panel Replacement - Right Side (Enclave) or Front Side Door Trim Panel Replacement - Right Side (OUTLOOK) or Front Side Door Trim Panel Replacement - Right Side (Acadia) .
1 Front Side Door Lock and Side Window Switch Screw (Qty: 3)
NOTE: Refer to Fastener Notice .

Tighten:  3 N.m (27 lb in)
2 Front Side Door Lock and Side Window Switch Assembly

Procedure

  1. Disconnect the electrical connectors.
  2. Refer to Control Module References for programming and set-up information.
