Accessory Switch Replacement

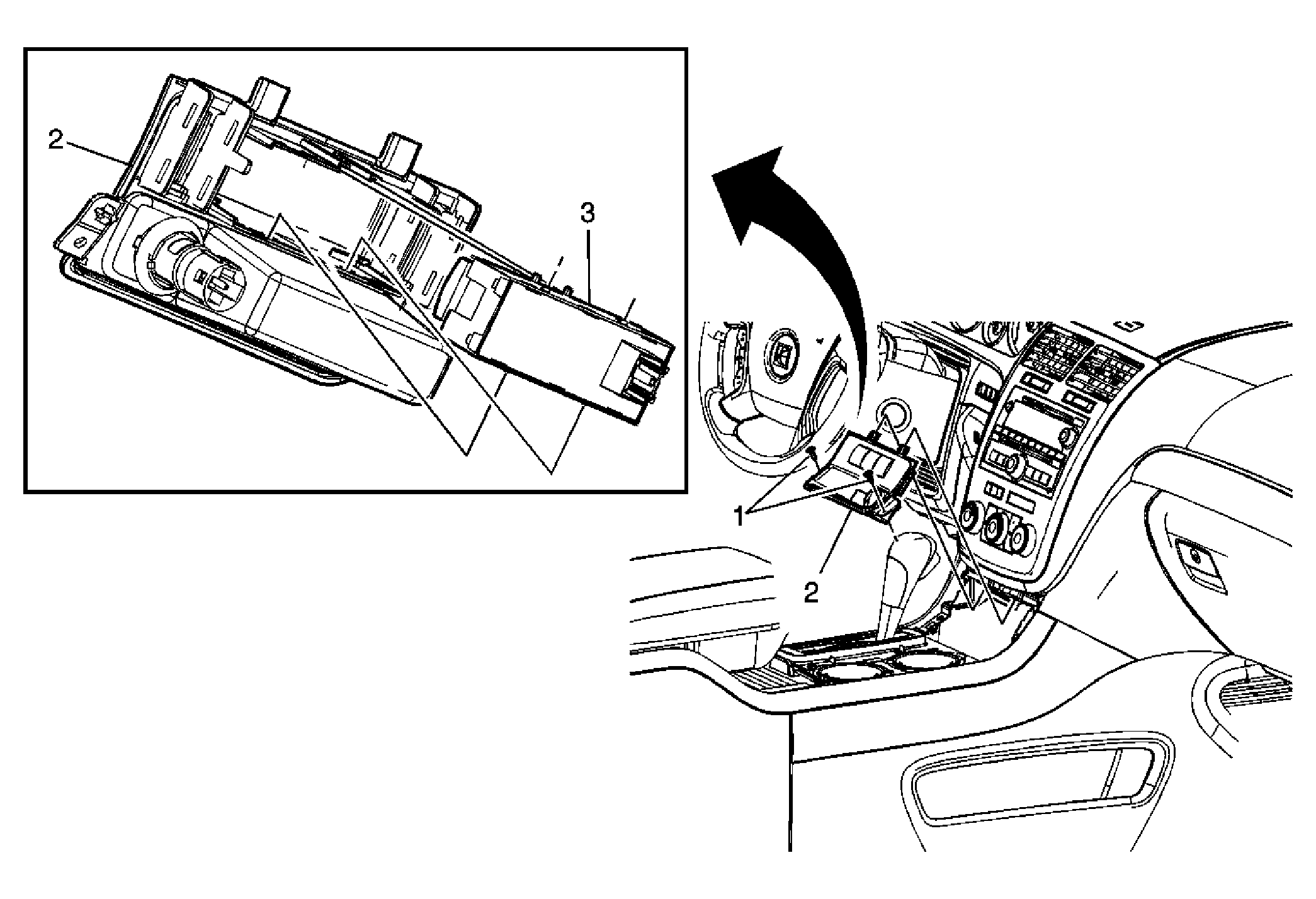

Fig 1: Identifying Front Floor Console Accessory Switch Mounting Plate & Accessory Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement (Acadia) or Front Floor Console Accessory Trim Plate Replacement (Enclave) or Front Floor Console Accessory Trim Plate Replacement (Outlook) .
1	Front Floor Console Accessory Switch Mounting Plate Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Front Floor Console Accessory Switch Mounting Plate Procedure: Disconnect the electrical connectors.
3	Accessory Switch Procedure: Disengage the accessory switch from the accessory switch mounting plate.
