Automatic Transmission Controls Schematics

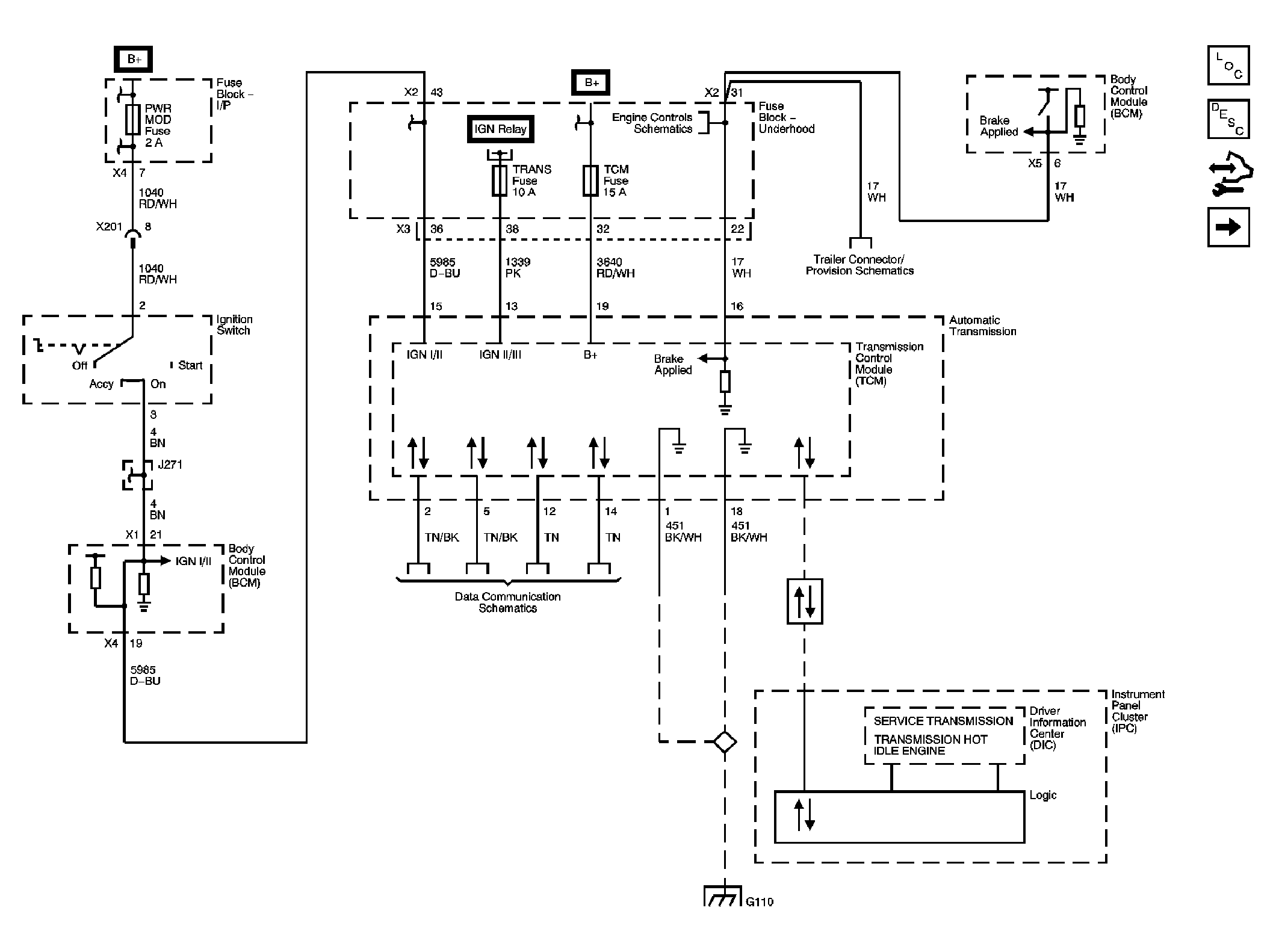

Fig 1: Module Power, Ground, Data Communication, MIL And Brake Applied Signal - Schematic

Courtesy of GENERAL MOTORS CORP.

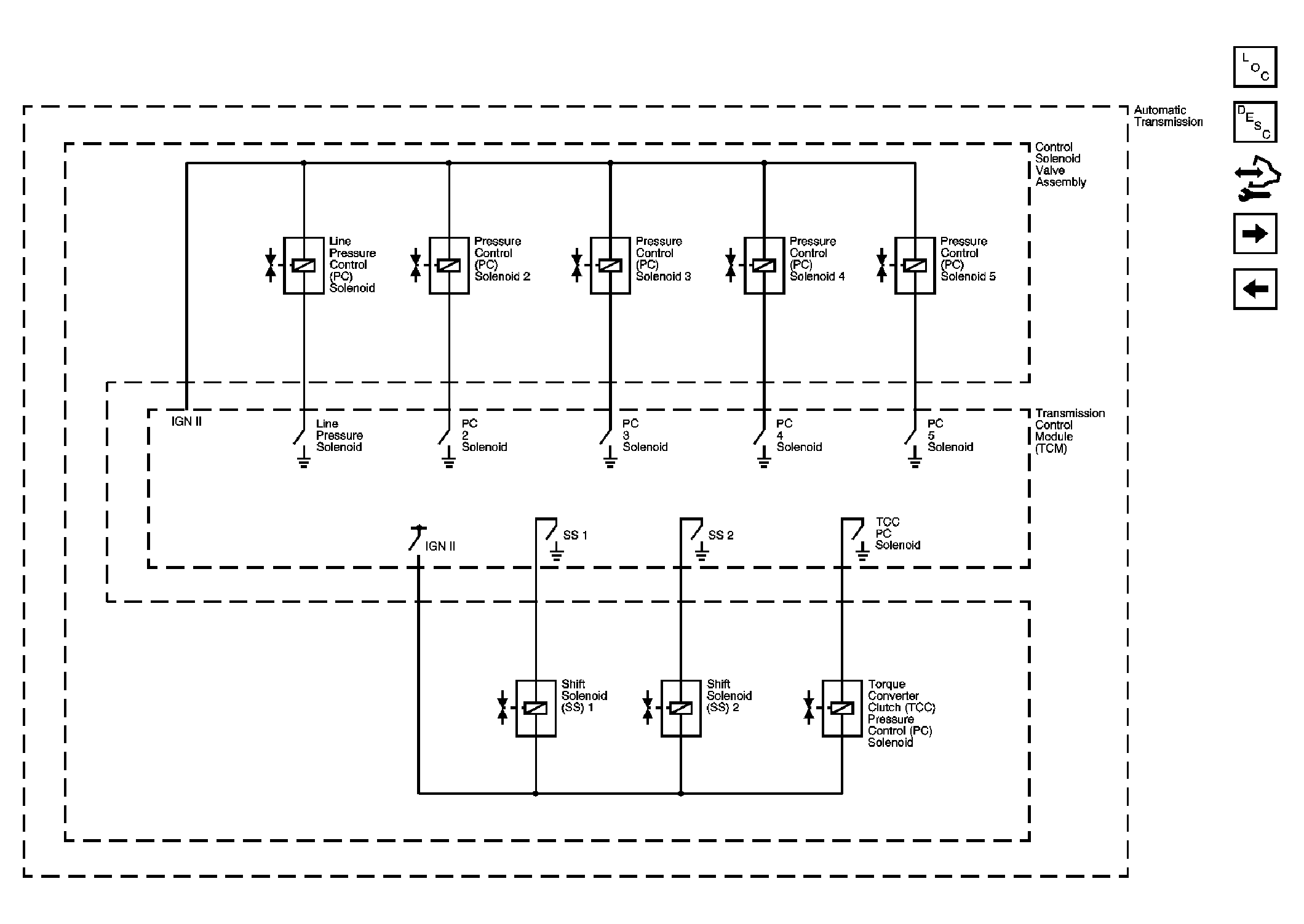

Fig 2: Pressure Controls And Shift Controls - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: ISS, OSS, TFP, And TFT - Schematic

Courtesy of GENERAL MOTORS CORP.

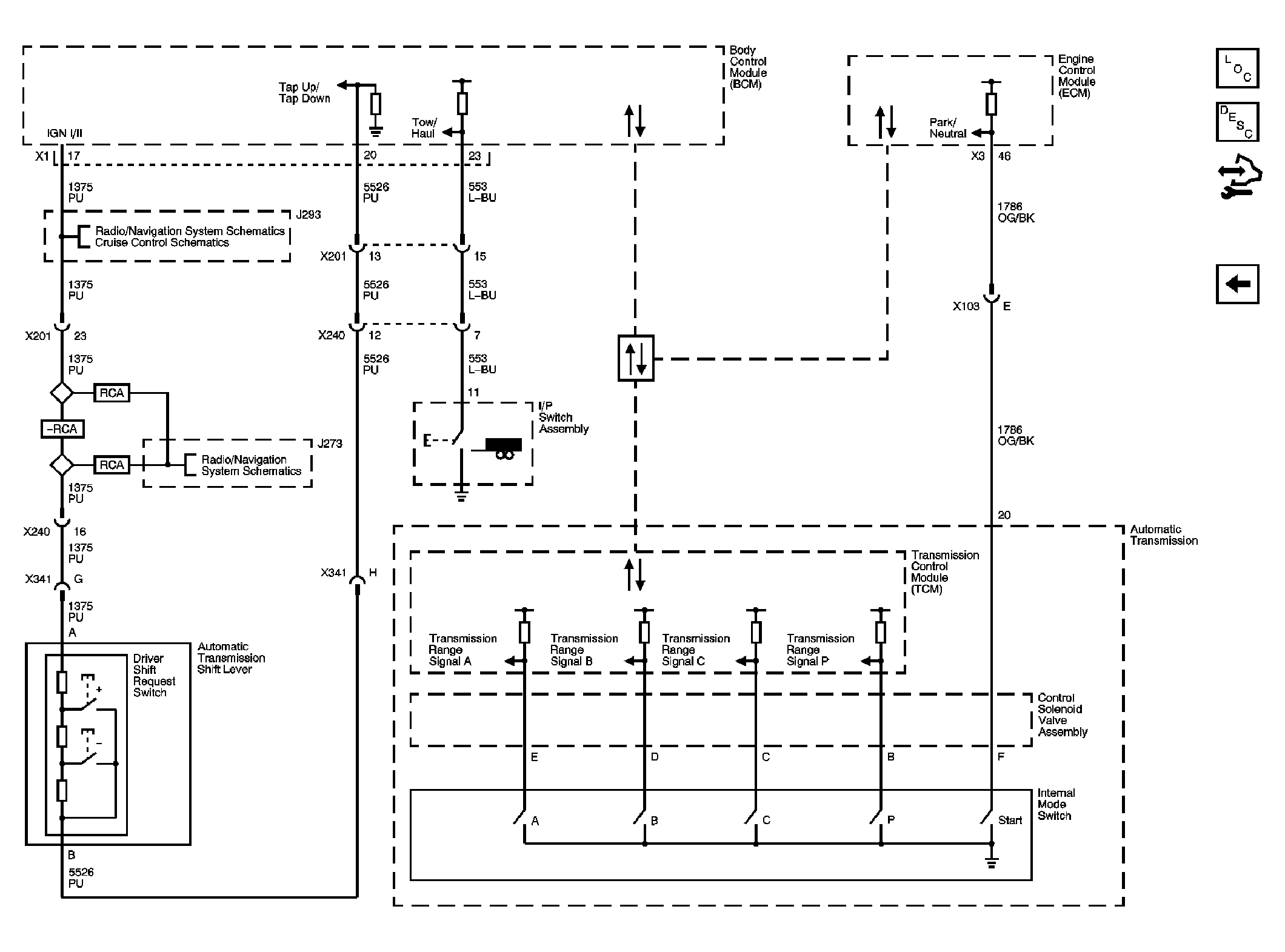

Fig 4: IMS And Tap Up/Tap Down - Schematic

Courtesy of GENERAL MOTORS CORP.
