Cigar Lighter/Power Outlet Schematics

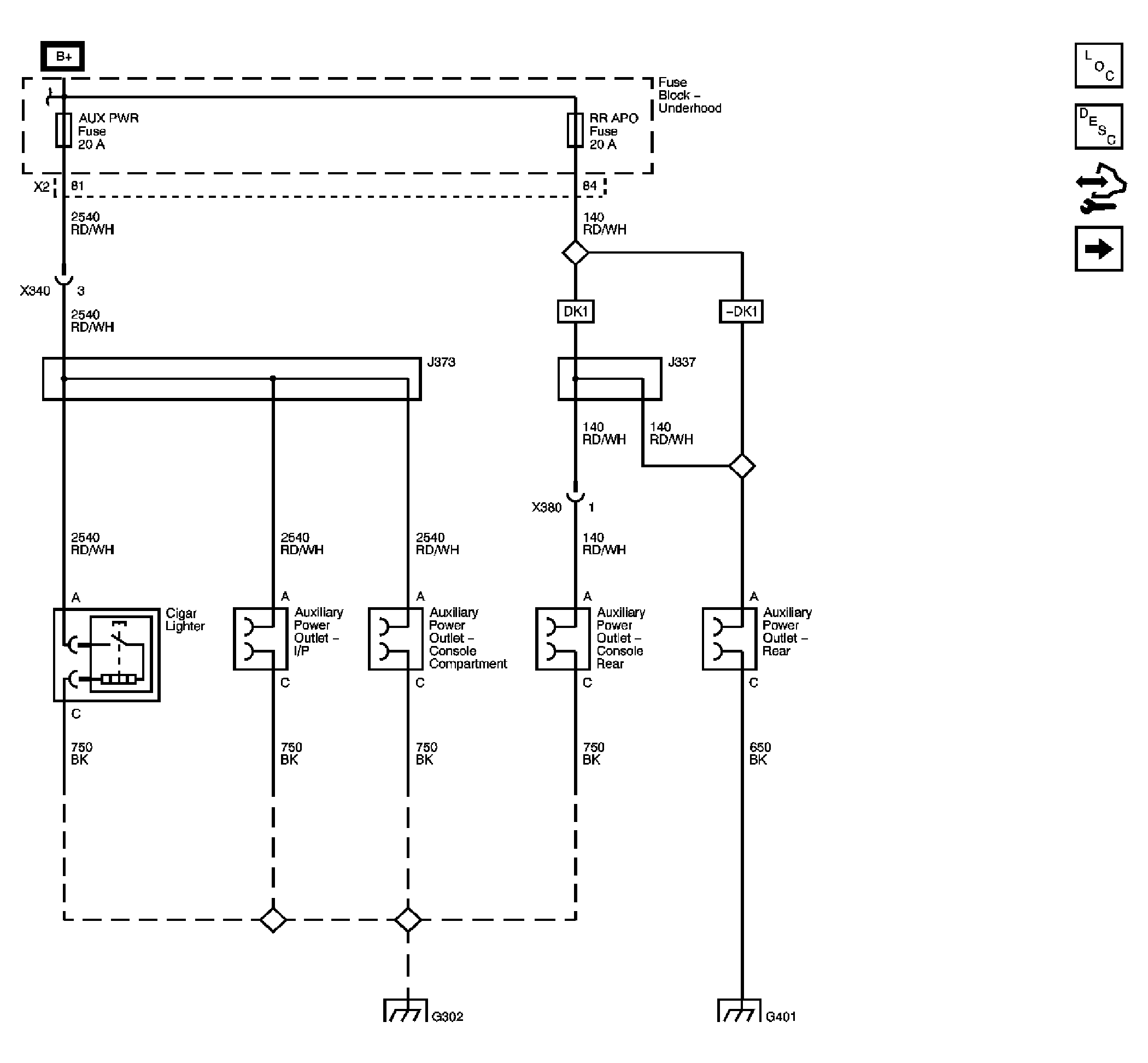

Fig 1: DC Power - Schematic

GM1843881

Courtesy of GENERAL MOTORS CORP.

Fig 2: AC Power (KV1) - Schematic

GM1843882

Courtesy of GENERAL MOTORS CORP.
