Instrument Cluster Schematics

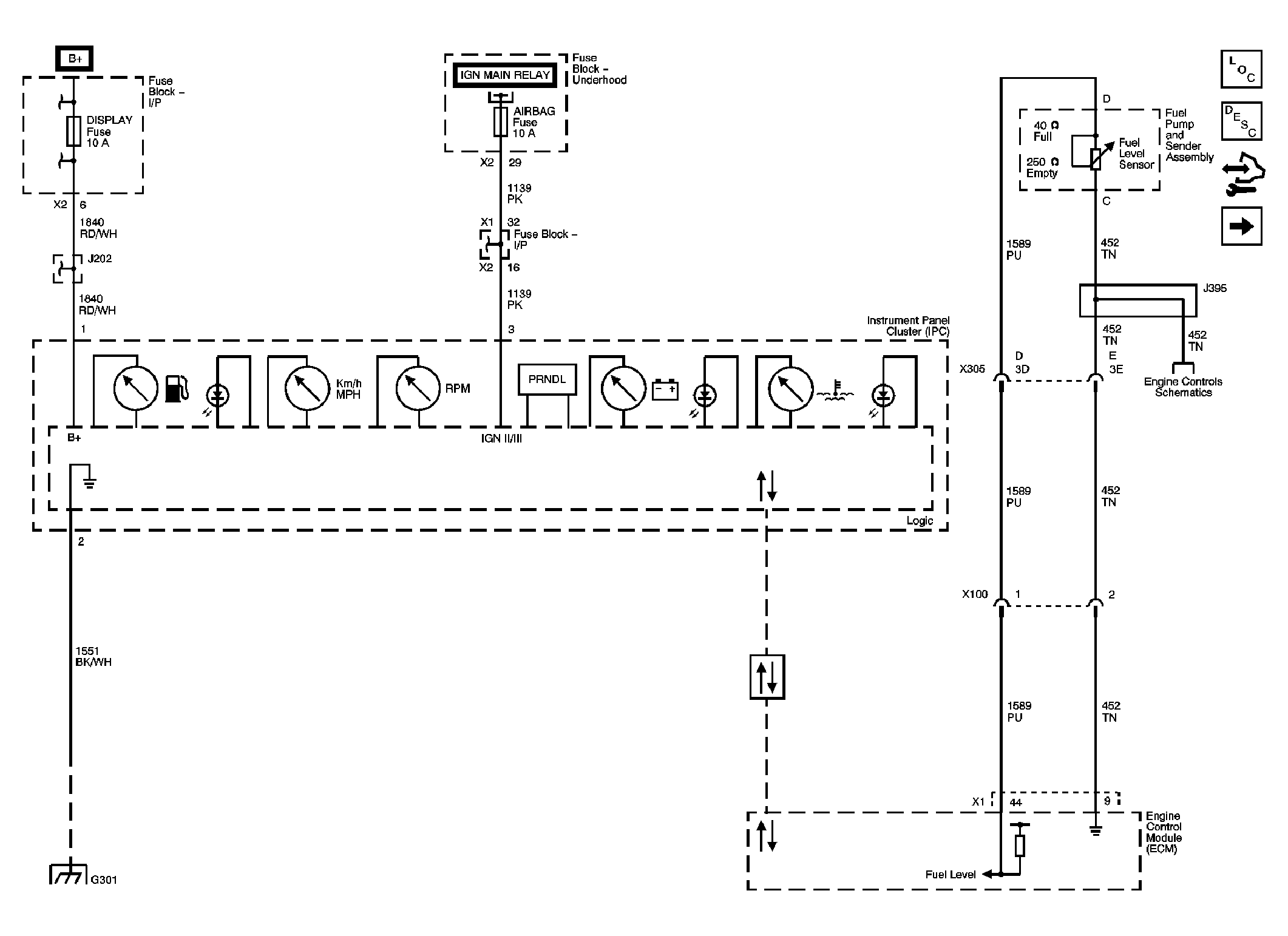

Fig 1: Gages, Ground, And Power - Schematic
GM1843920Courtesy of GENERAL MOTORS CORP.

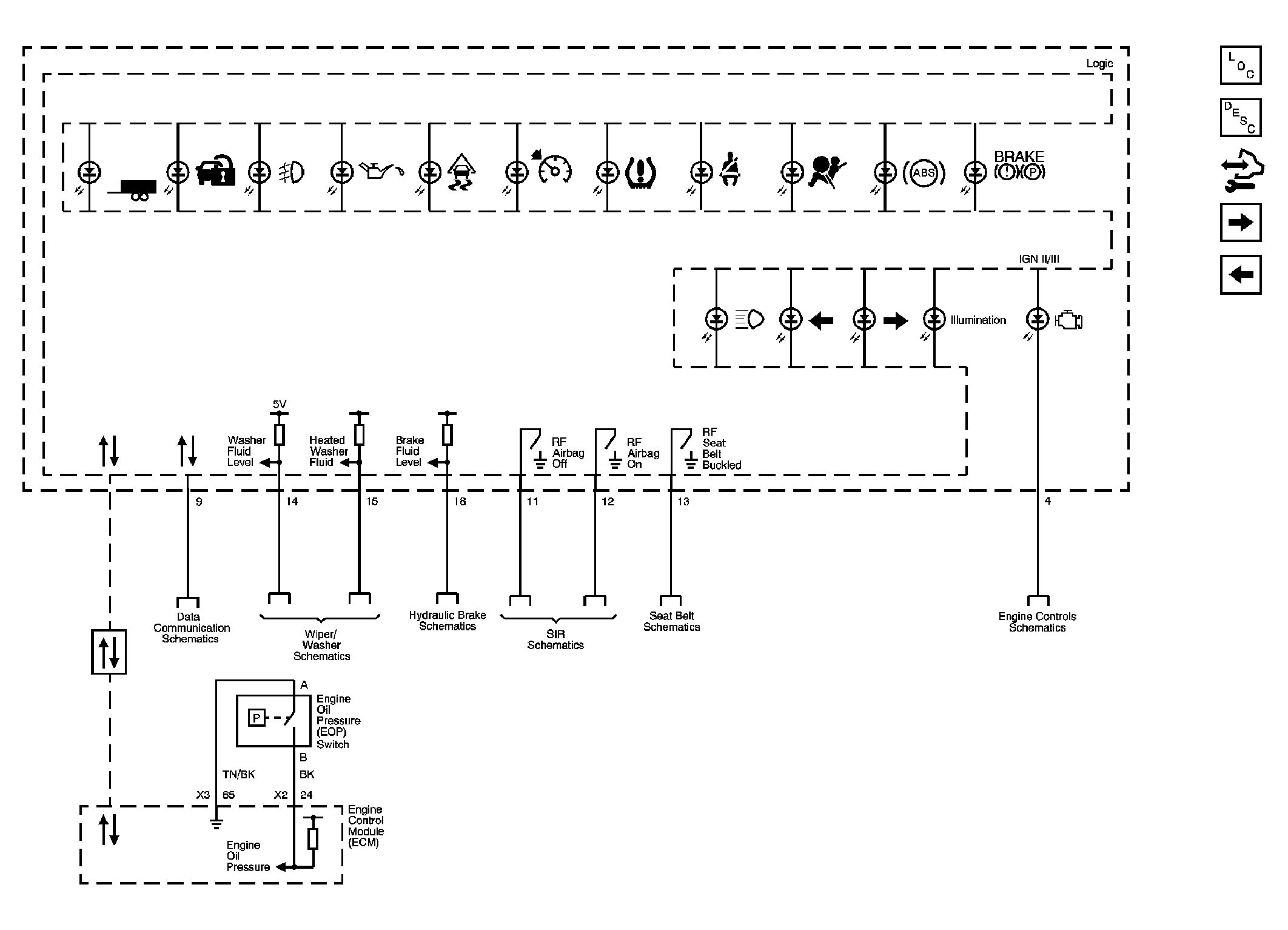

Fig 2: Indicators And Lighting - Schematic
GM1843921Courtesy of GENERAL MOTORS CORP.
Fig 3: DIC - UH9 - Schematic
GM1843922Courtesy of GENERAL MOTORS CORP.
