Instrument Cluster Replacement

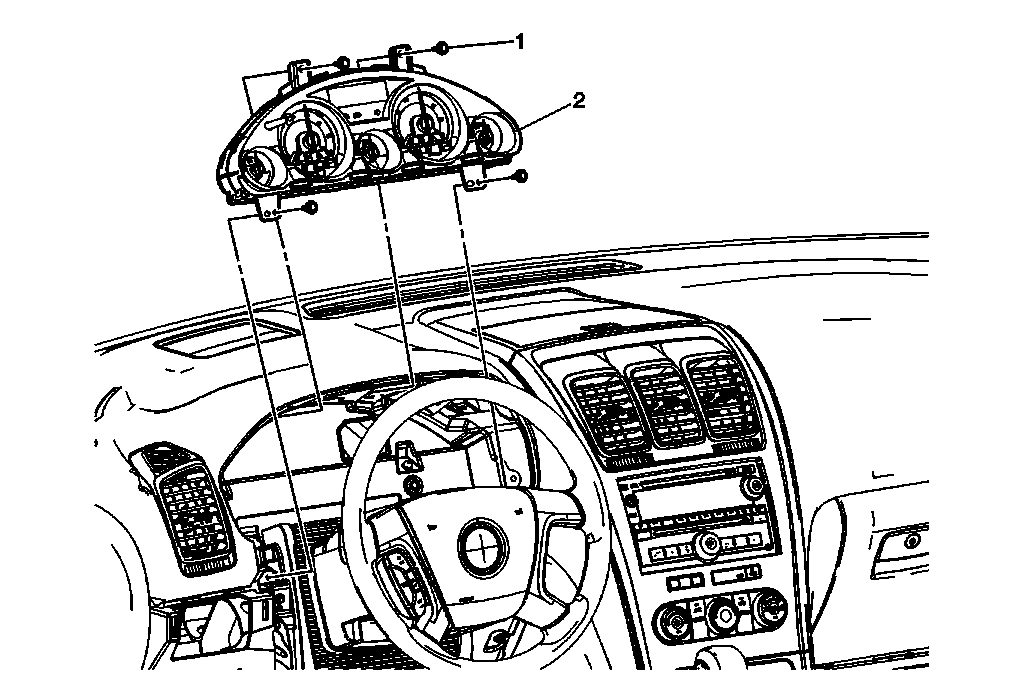

Fig 1: View Of Instrument Cluster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument cluster trim plate bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .
1	Instrument Cluster Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Instrument Cluster Assembly Procedures Disconnect the electrical connections. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure:
Remove the instrument cluster trim plate bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .

Instrument Cluster Screw (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Instrument Cluster Assembly

Procedures
