Heated/Cooled Seat Schematics (except A45)

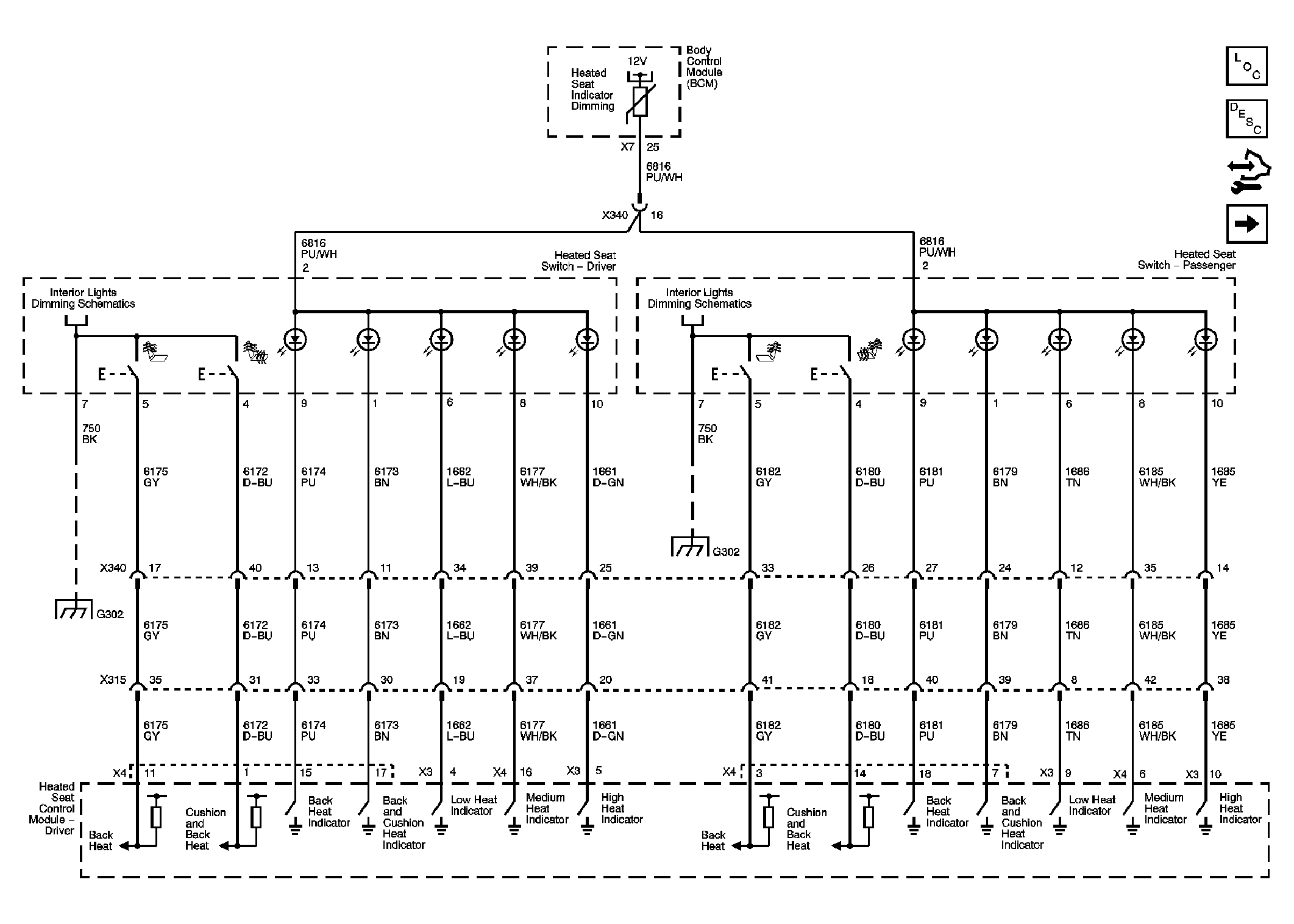

Fig 1: Indicators And Switches - Schematic (Except A45)

Courtesy of GENERAL MOTORS CORP.

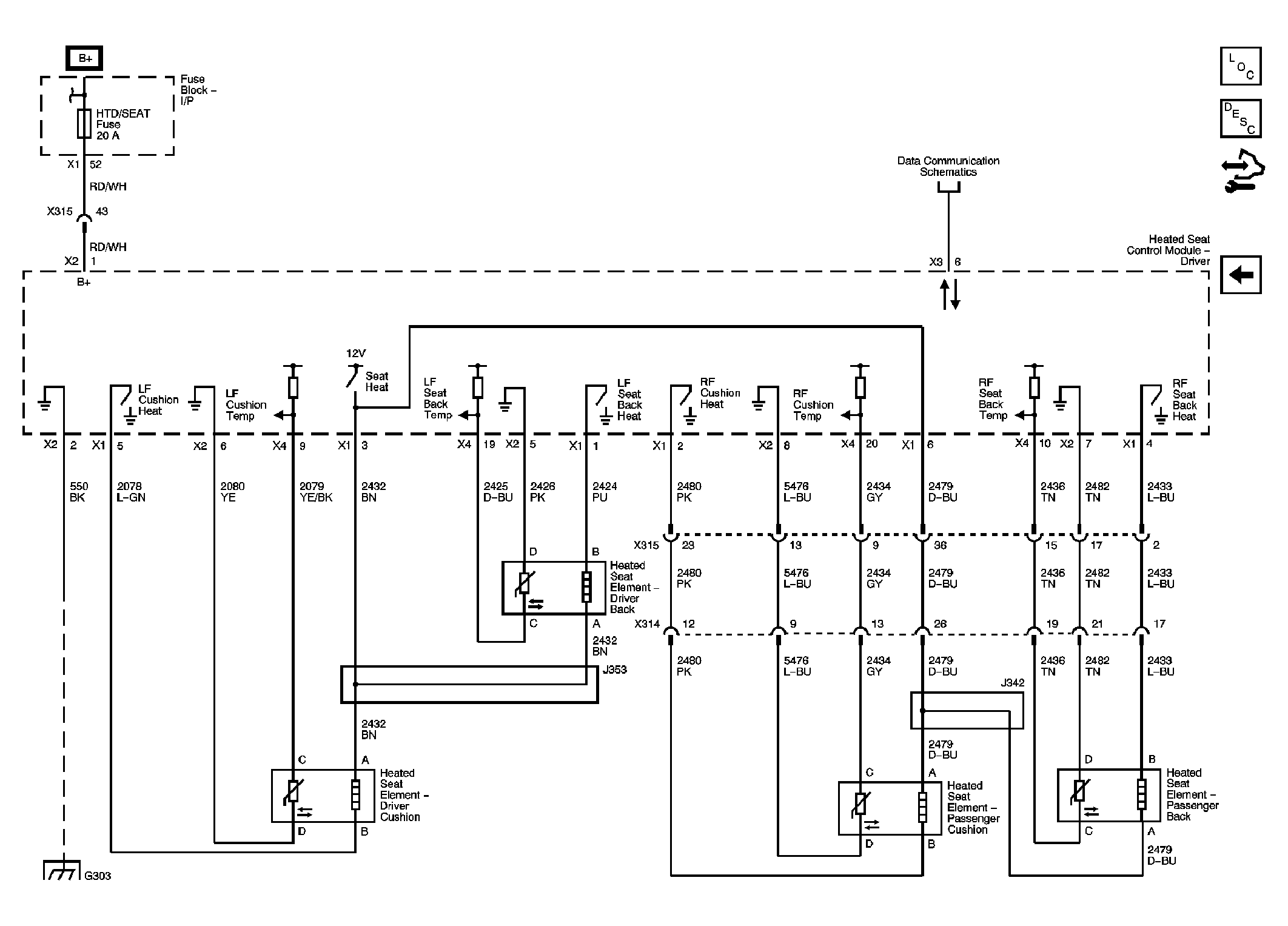

Fig 2: Heating Elements - Schematic (Except A45)

Courtesy of GENERAL MOTORS CORP.
