Heated/Cooled Seat Schematics (A45)

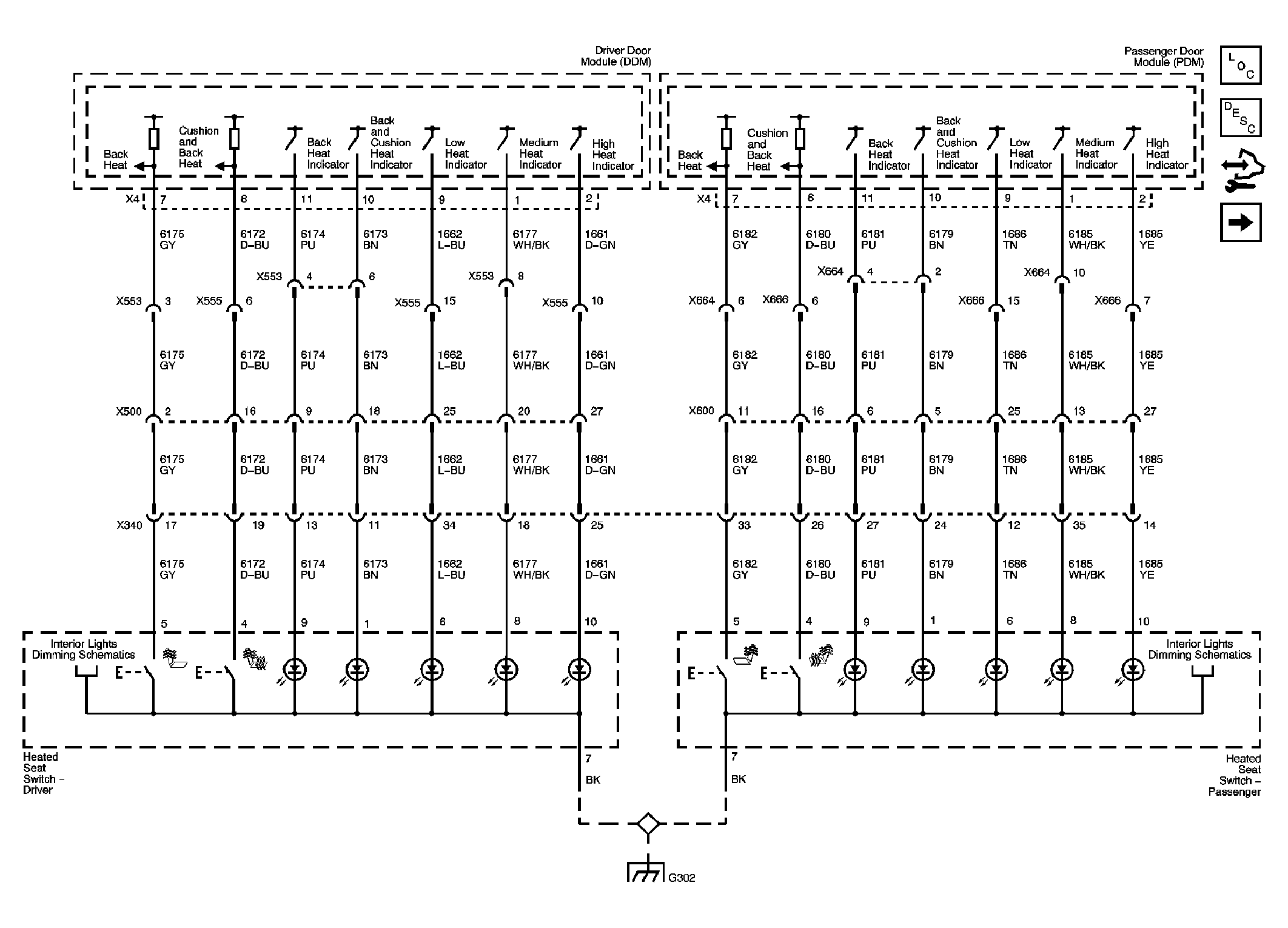

Fig 1: Indicators And Switches - Schematic (A45)

GM1844208

Courtesy of GENERAL MOTORS CORP.

Fig 2: Heating Elements - Schematic (A45)

GM1844209

Courtesy of GENERAL MOTORS CORP.
