Driver Seat Schematics

Fig 1: AG1 - Schematic
GM1844200Courtesy of GENERAL MOTORS CORP.

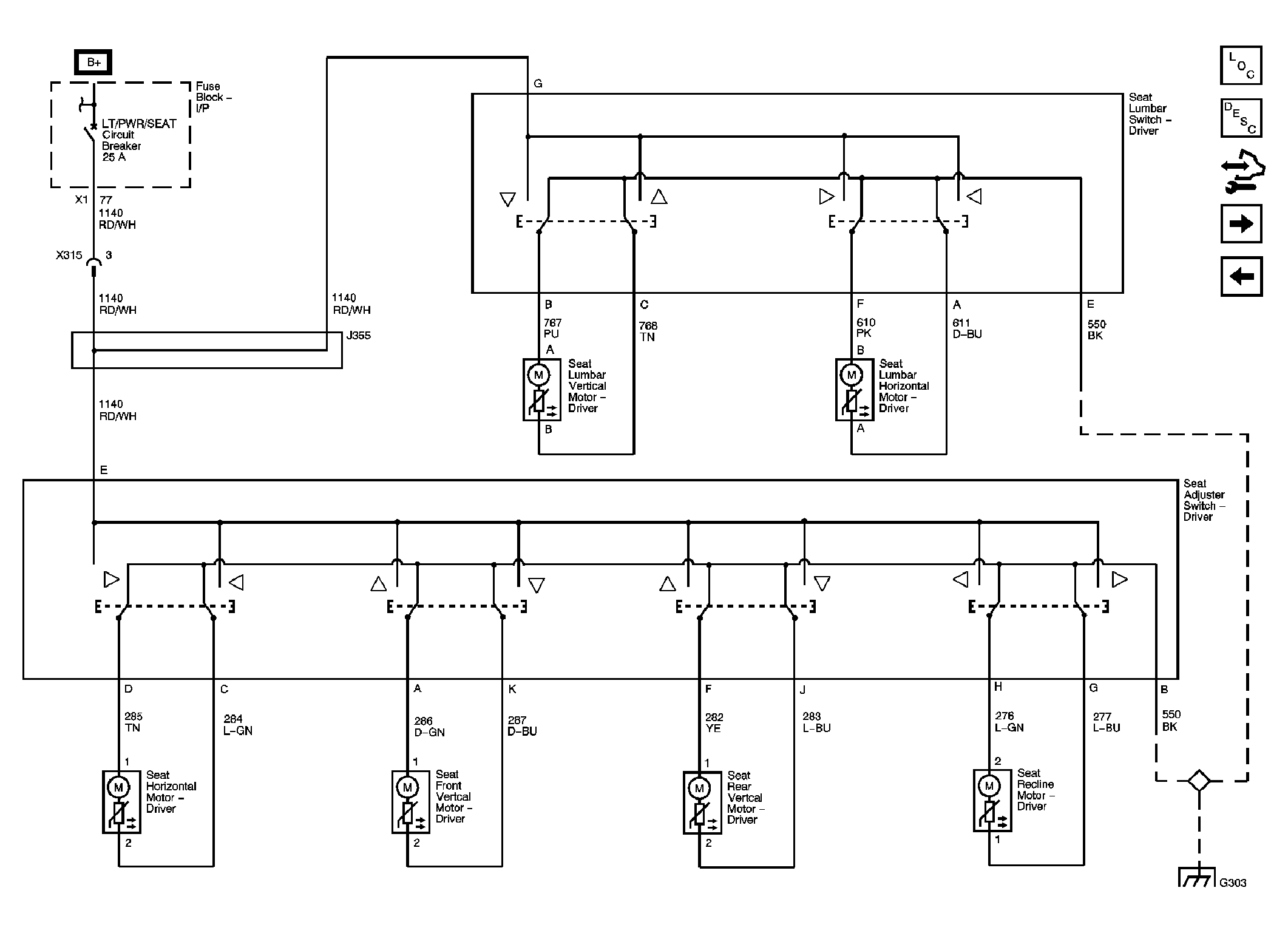

Fig 2: AH5 - Schematic
GM1844201Courtesy of GENERAL MOTORS CORP.

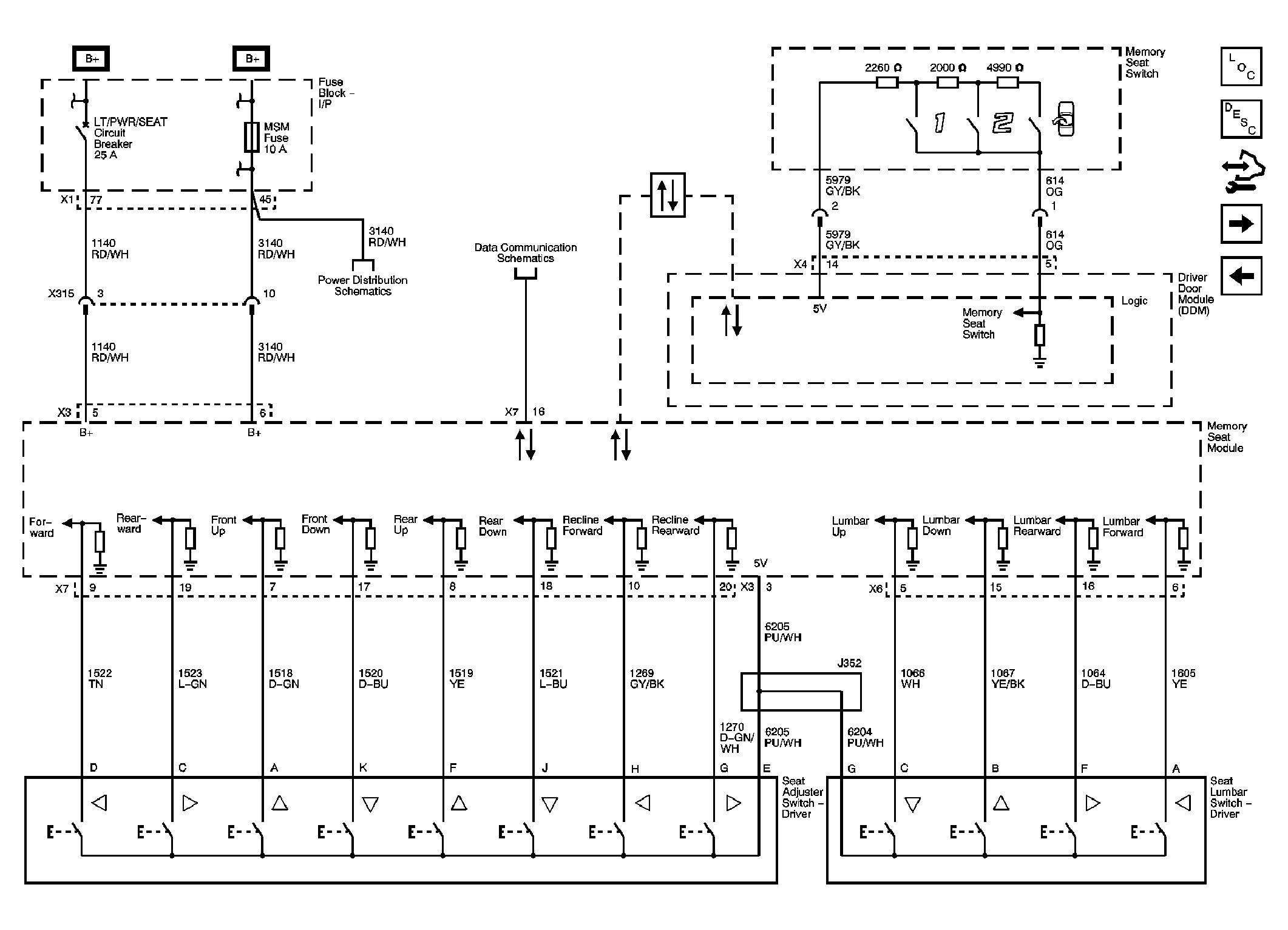

Fig 3: AG3 Module Power And Data Communication, Driver Switches - Schematic
GM1844202Courtesy of GENERAL MOTORS CORP.

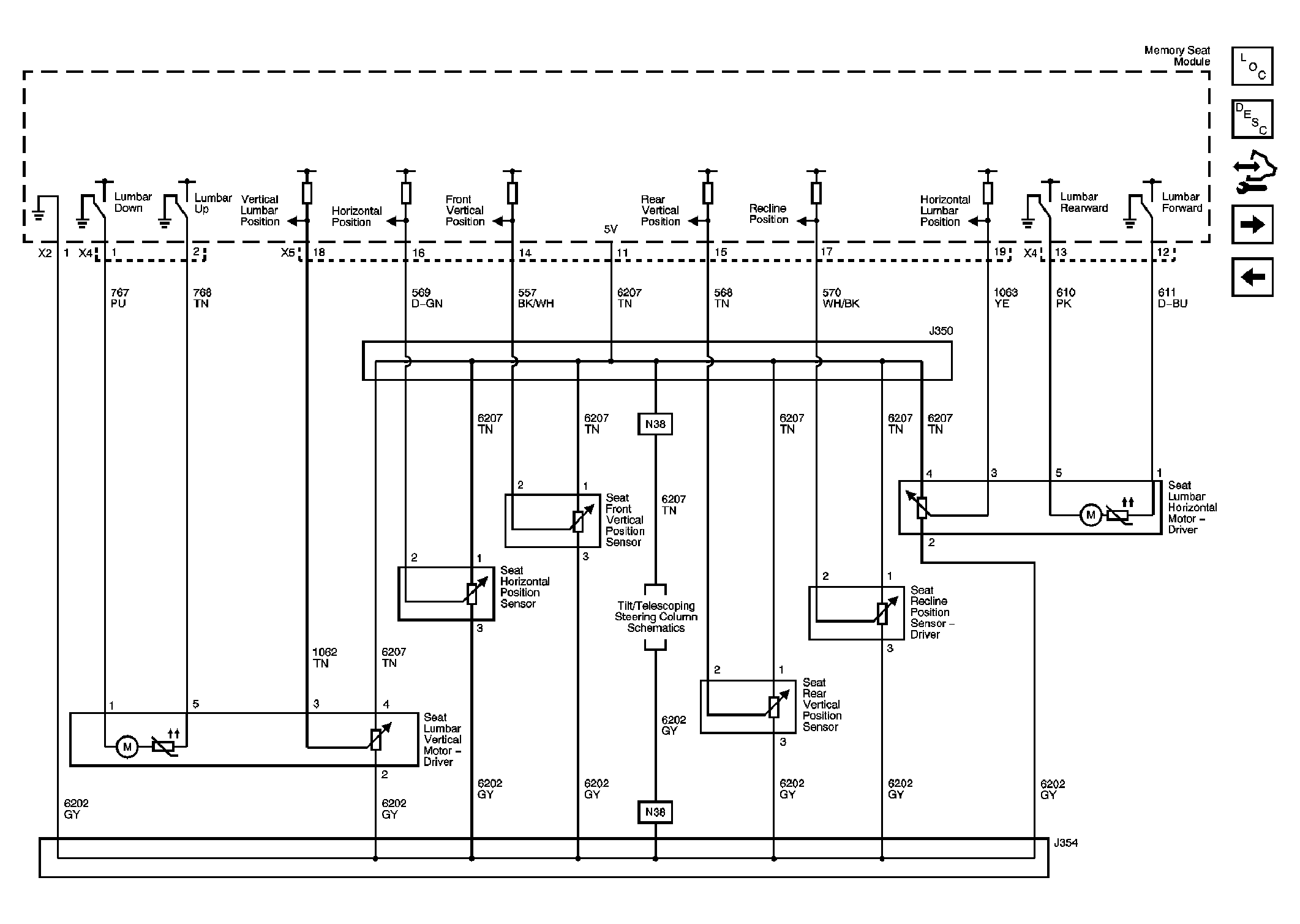

Fig 4: AG3 Position Sensors And Lumbar Motors - Schematic
GM1844203Courtesy of GENERAL MOTORS CORP.
Fig 5: AG3 Module Ground, Recline, Horizontal, And Vertical Motors - Schematic
GM1844204Courtesy of GENERAL MOTORS CORP.
