Front Floor Console Extension Accessory Upper Bezel Replacement

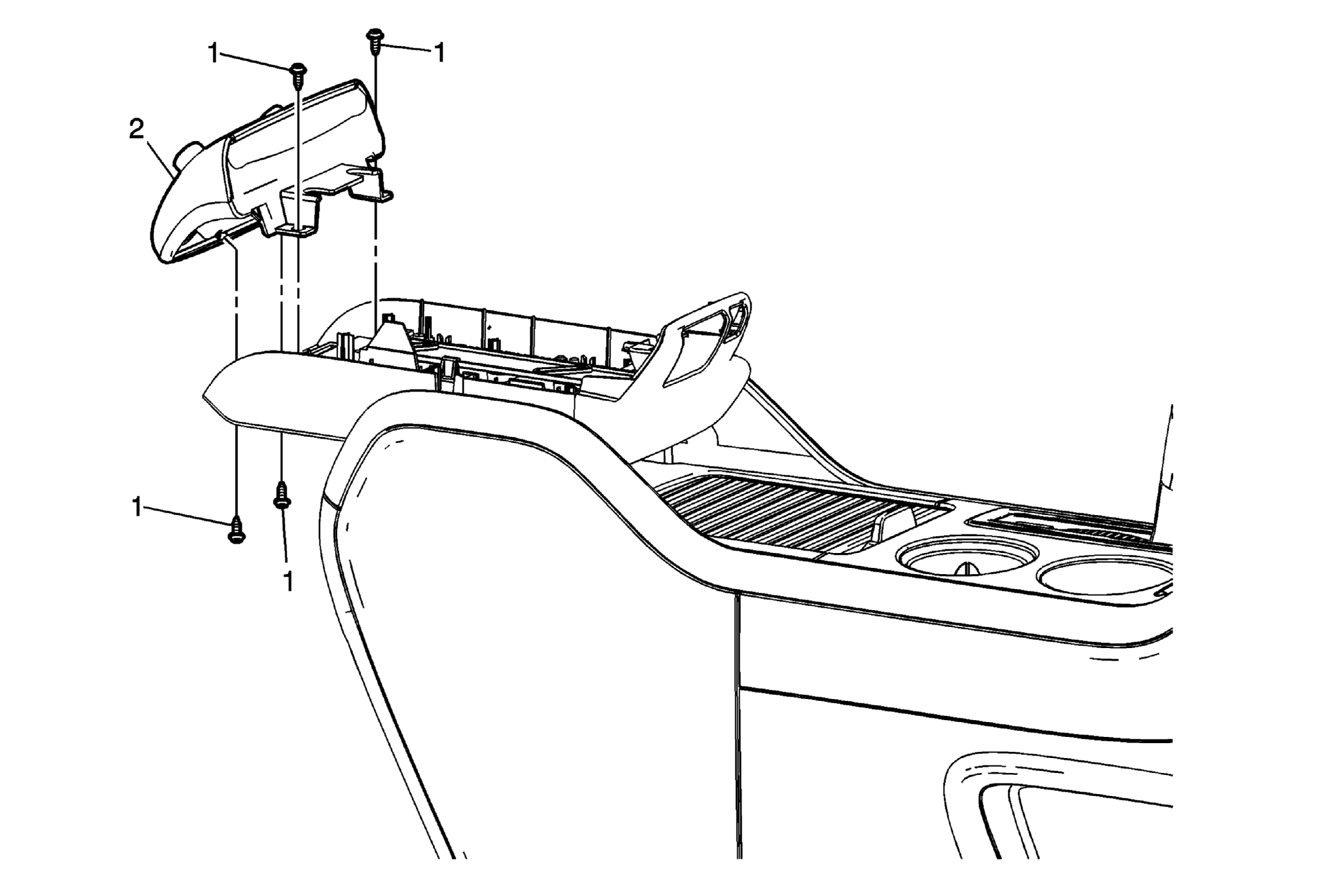

Fig 1: Identifying Front Floor Console Extension Accessory Upper Bezel
GM1843994Courtesy of GENERAL MOTORS CORP.
Front Floor Console Extension Accessory Upper Bezel Replacement

Callout Component Name
Preliminary Procedure:
Remove the front floor console armrest bin assembly. Refer to Front Floor Console Armrest Compartment Replacement .
1 Front Floor Console Extension Accessory Upper Bezel Screw (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
2 Front Floor Console Extension Accessory Upper Bezel
Procedure:
  1. Disconnect the electrical connections.
  2. Remove the console slide spring.
