Door Lock/Indicator Schematics (AXC/AXE)

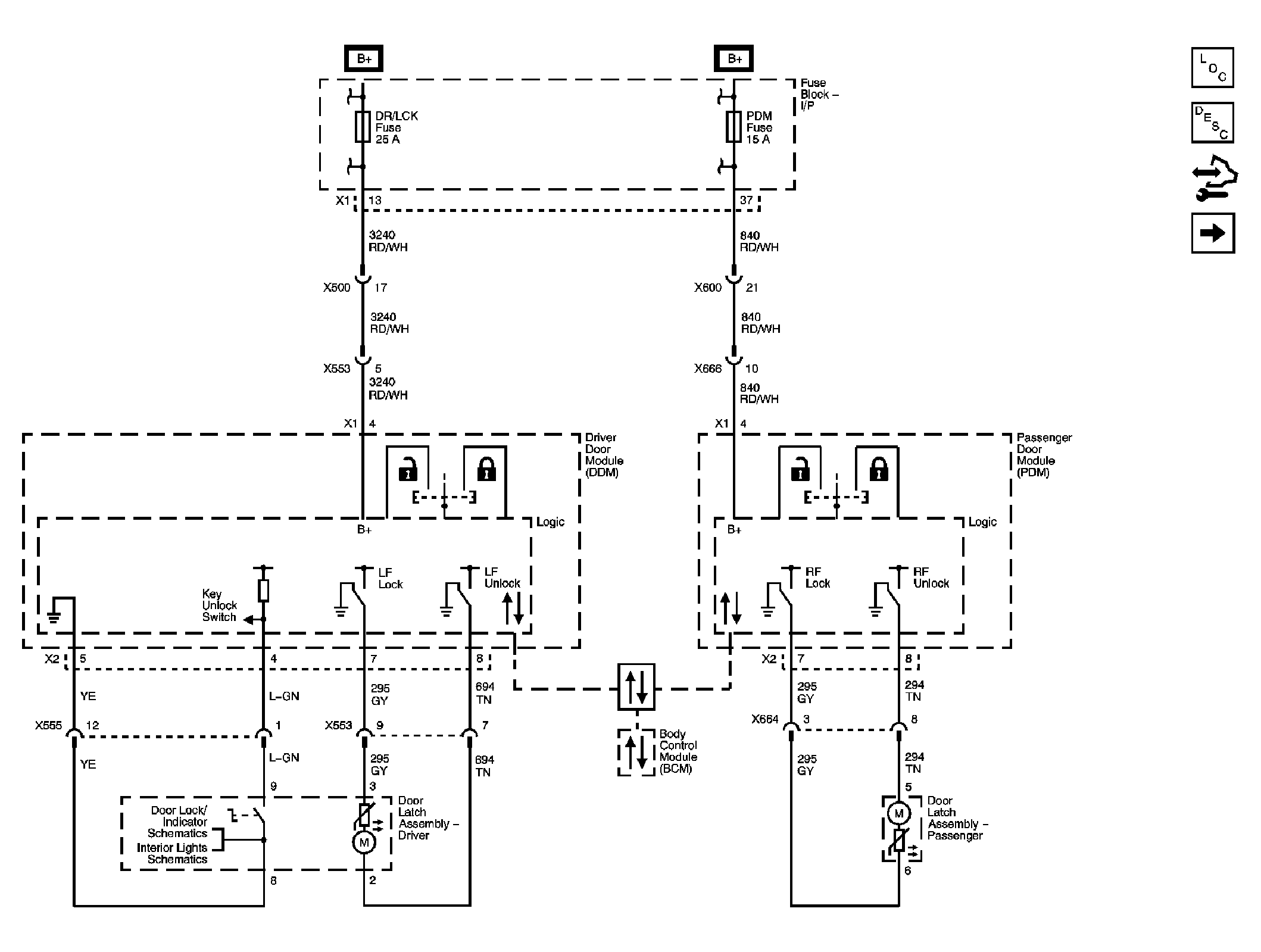

Fig 1: Front Doors - Schematic

Courtesy of GENERAL MOTORS CORP.

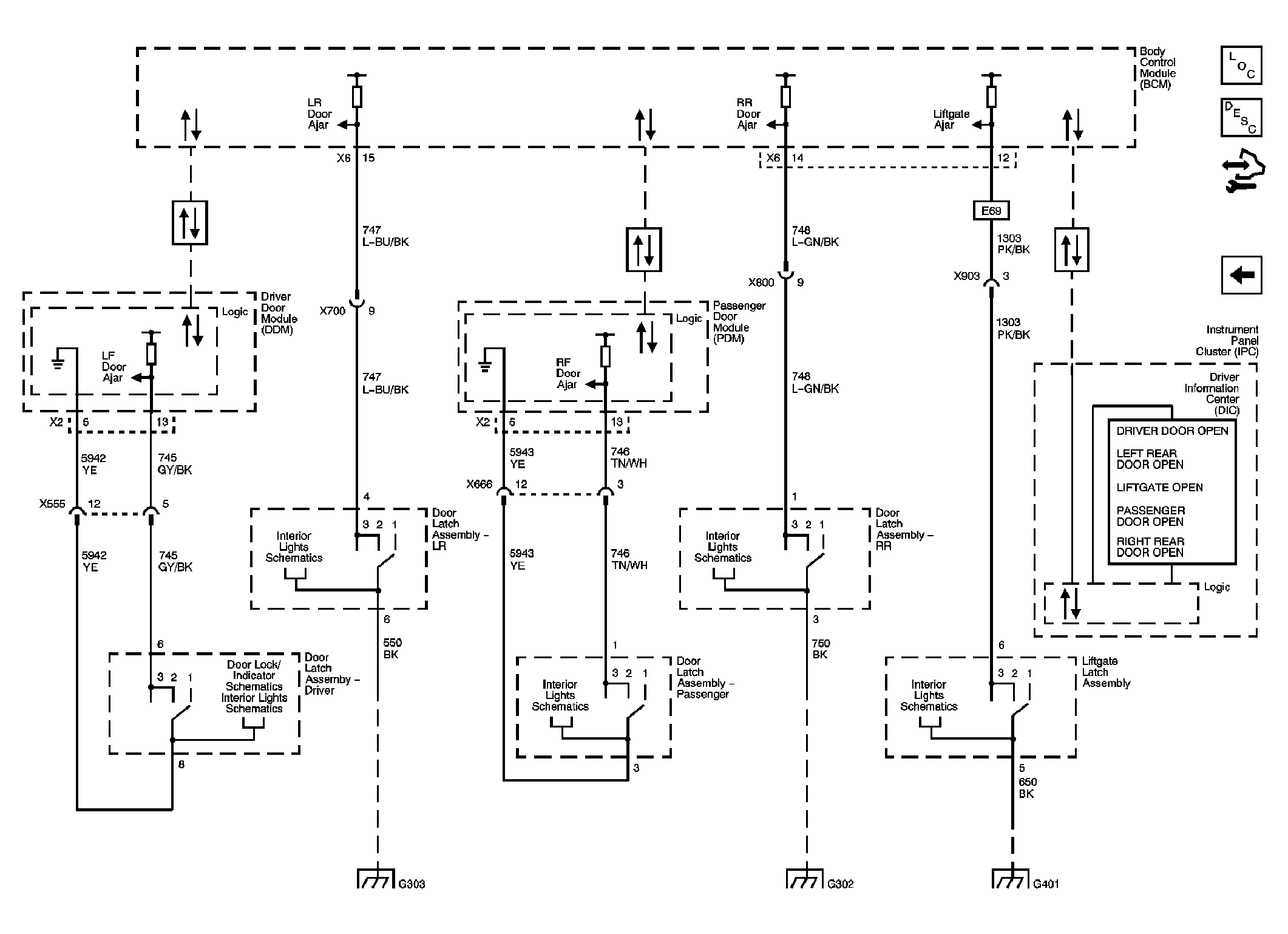

Fig 2: Rear Doors - Schematic

Courtesy of GENERAL MOTORS CORP.

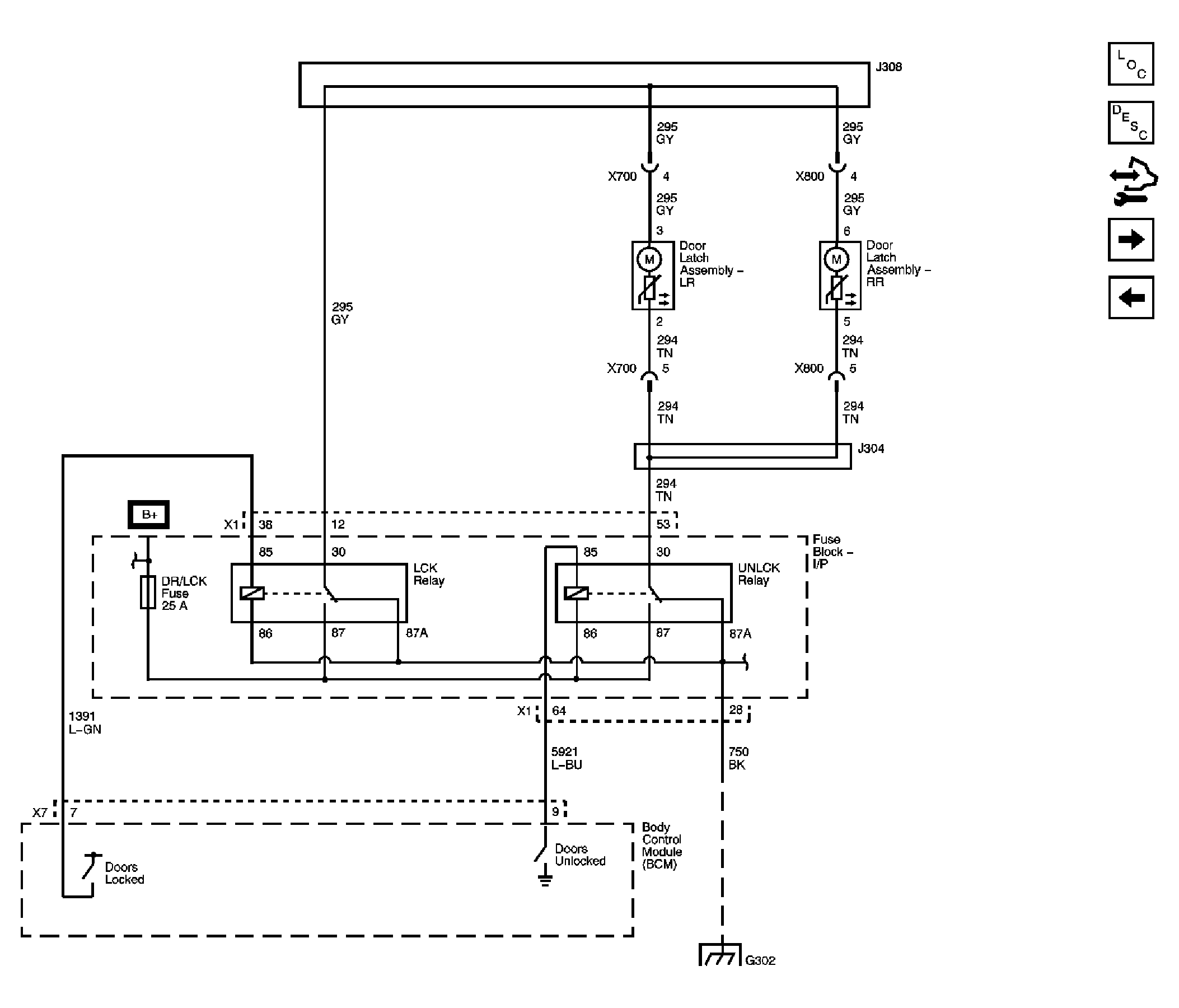

Fig 3: Indicators - Schematic

Courtesy of GENERAL MOTORS CORP.
