Liftgate Actuator Replacement

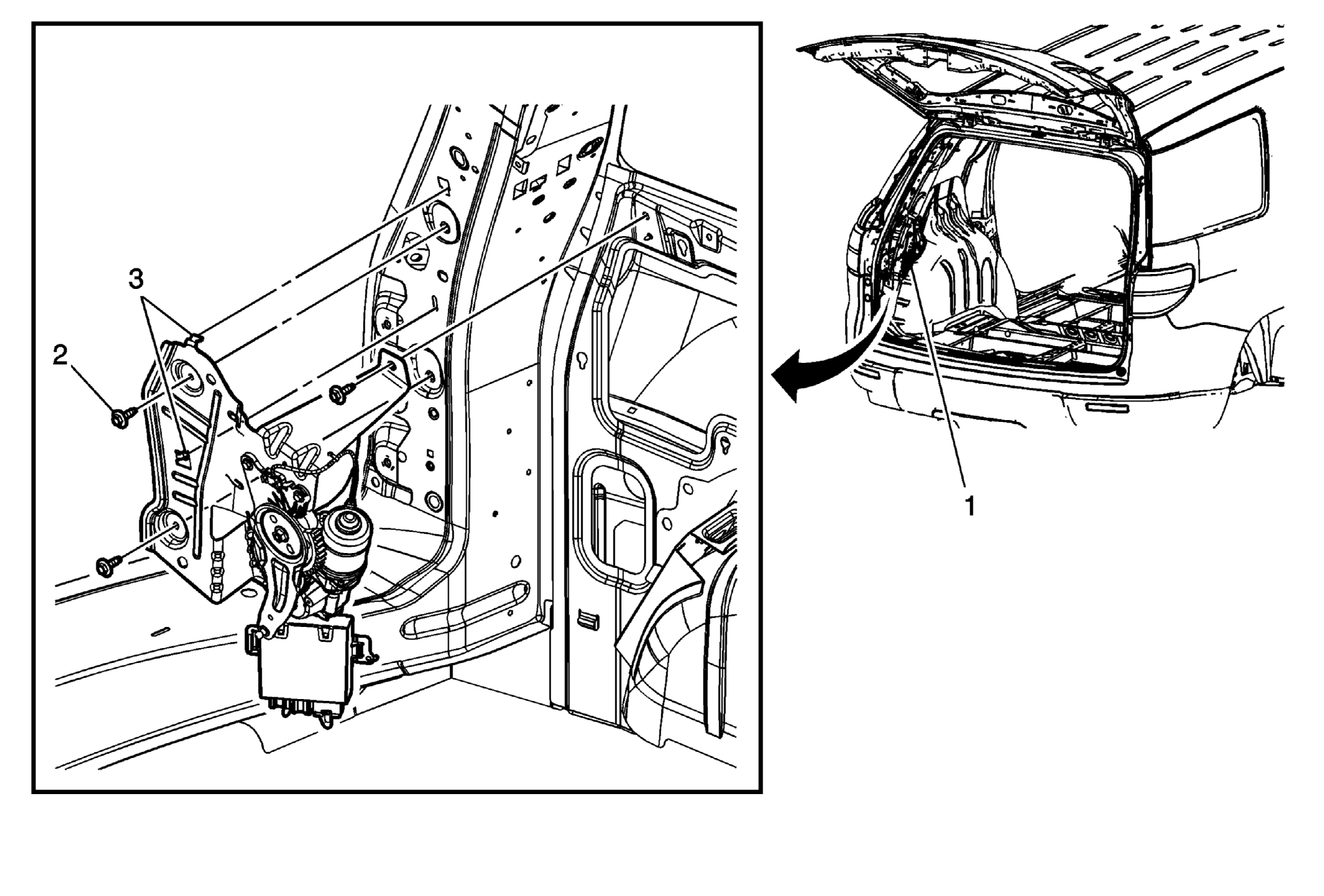

Fig 1: View Of Liftgate Actuator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the bodyside trim panel. Refer to Rear Quarter Lower Trim Panel Replacement (without RPO E61) or Rear Quarter Lower Trim Panel Replacement (with RPO E61) . Disconnect the power liftgate actuator rod. Refer to Liftgate Actuator Rod Replacement .
1	Liftgate Close Actuator Control Module Procedure Disconnect the electrical connector. Cut the tie strap, if equipped.
2	Liftgate Close Actuator Motor Control Module Bolt (Qty: 5) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
3	Liftgate Close Actuator Control Module Procedure: Reprogram liftgate module. Refer to Liftgate Calibration Procedure
