Door Lock and Side Window Switch Replacement - Passenger Side (with RPO AXE or AXC)

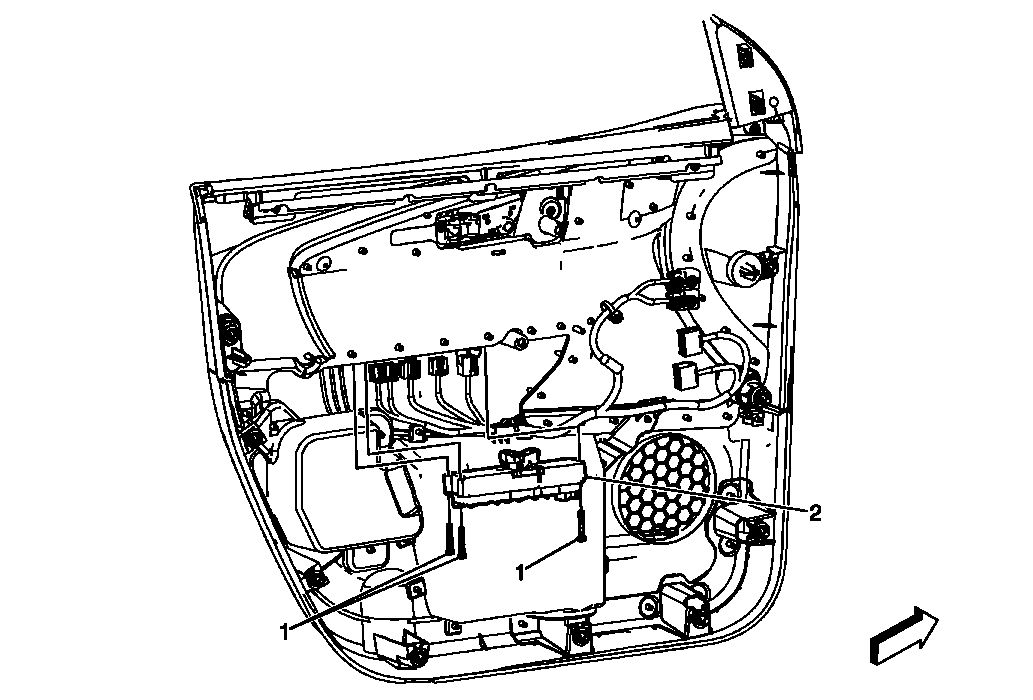

Fig 1: Identifying Door Lock And Side Window Switch - Passenger Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the passenger side door trim panel. Refer to FRONT SIDE DOOR TRIM PANEL REPLACEMENT - RIGHT SIDE .
1	Front Side Door Lock and Side Window Switch Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 3 N.m (27 lb in)
2	Front Side Door Lock and Side Window Switch Assembly Tip: Disconnect the electrical connectors.
