Interior Lights Dimming Schematics

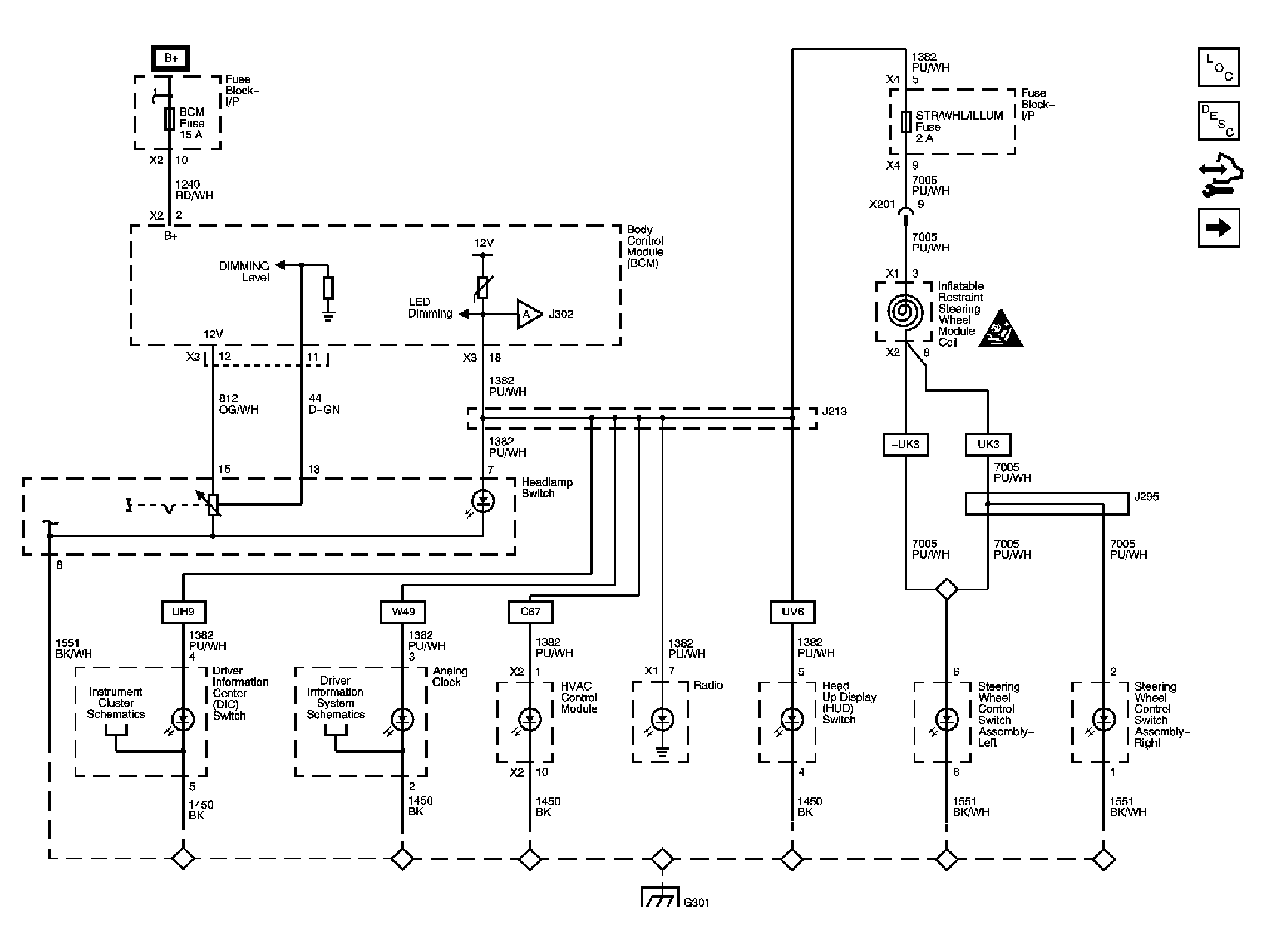

Fig 1: Controls, I/P, And Steering Wheel LEDs - Schematic
GM1843956Courtesy of GENERAL MOTORS CORP.

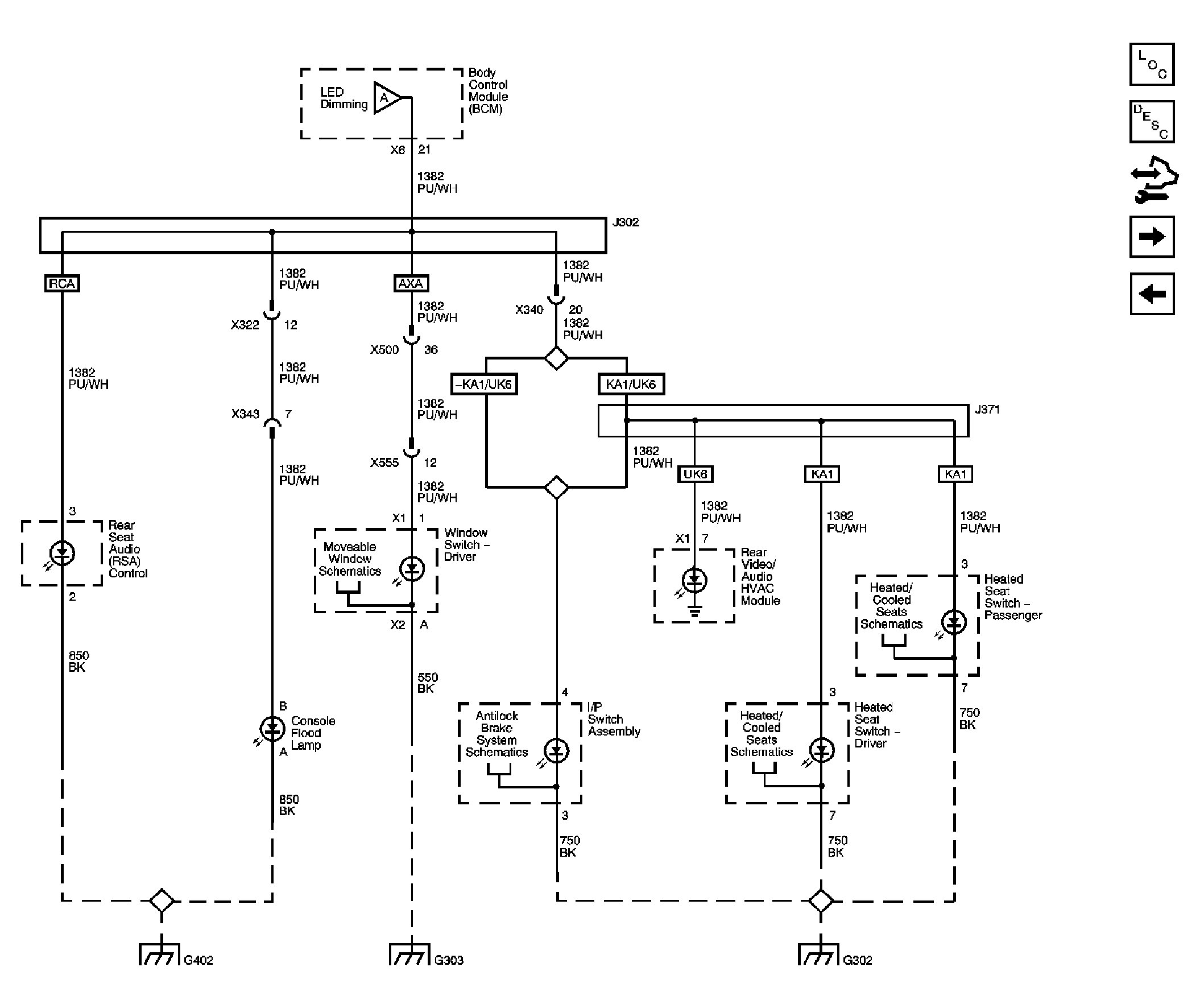

Fig 2: Console And Driver Door LEDs - Schematic
GM1843958Courtesy of GENERAL MOTORS CORP.

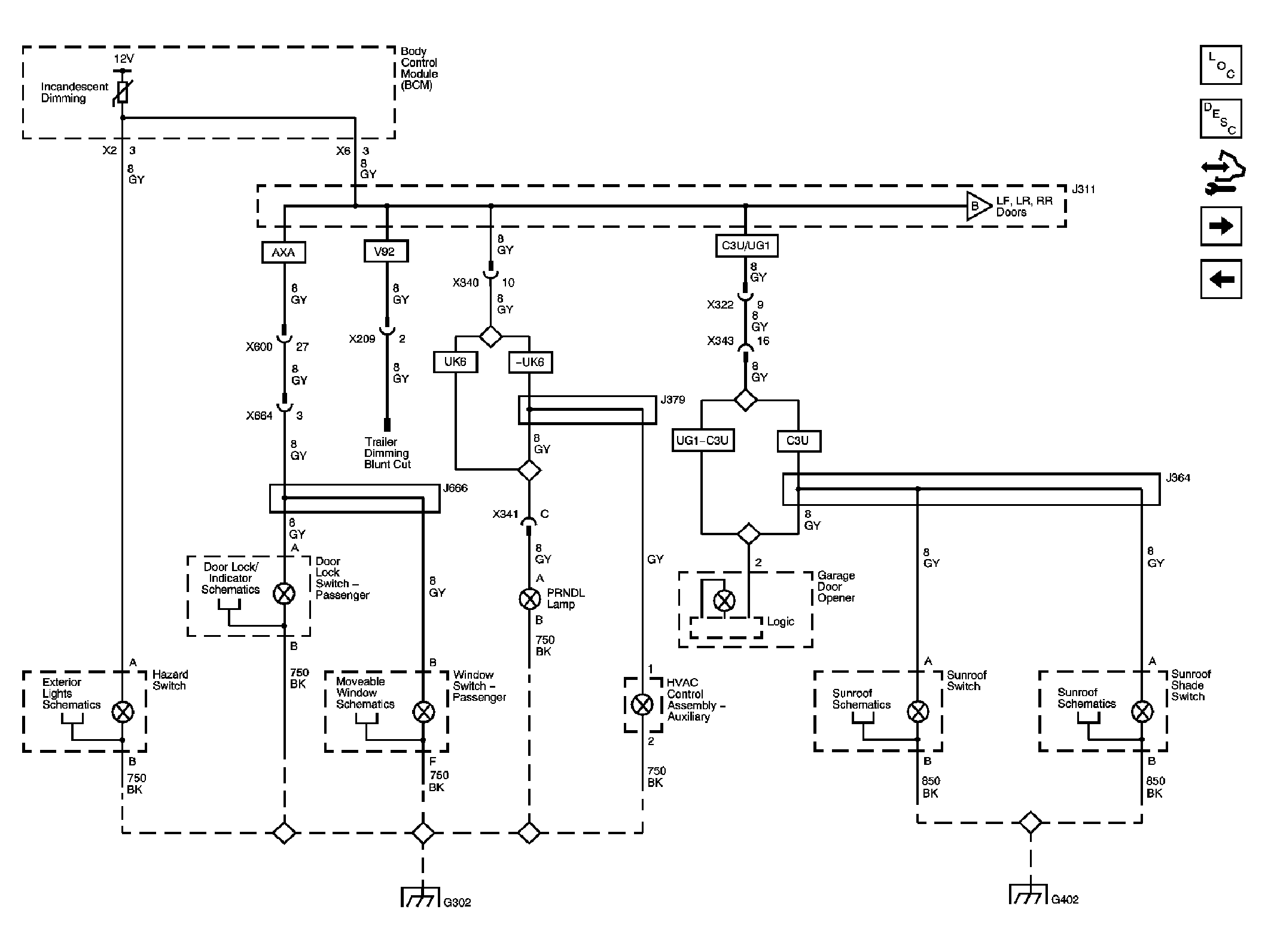

Fig 3: Console, I/P, Passenger Door, And Roof Lamps - Schematic
GM1843959Courtesy of GENERAL MOTORS CORP.

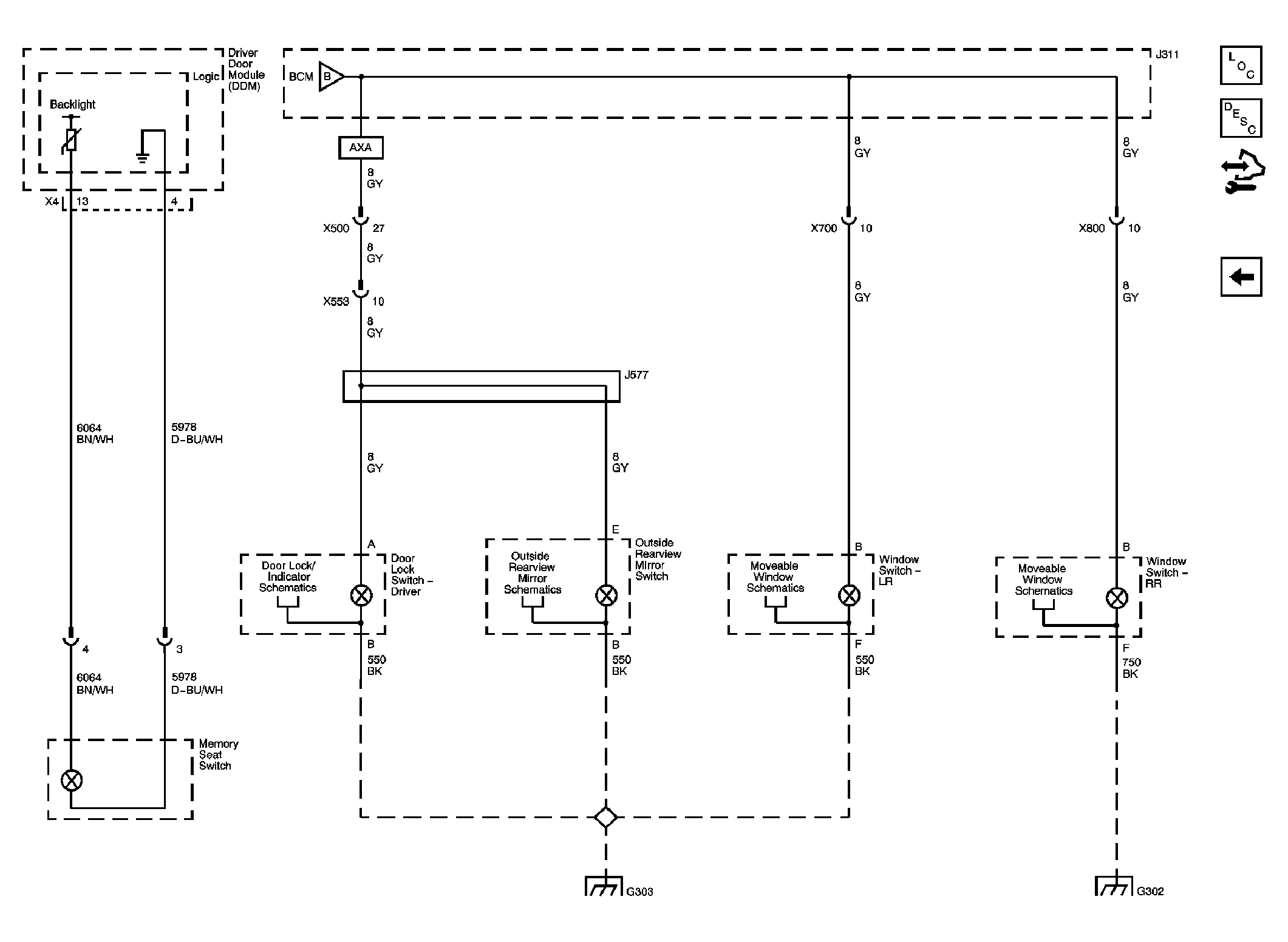

Fig 4: Driver, Left Rear, And Right Rear Door Lamps - Schematic
GM1843960Courtesy of GENERAL MOTORS CORP.
