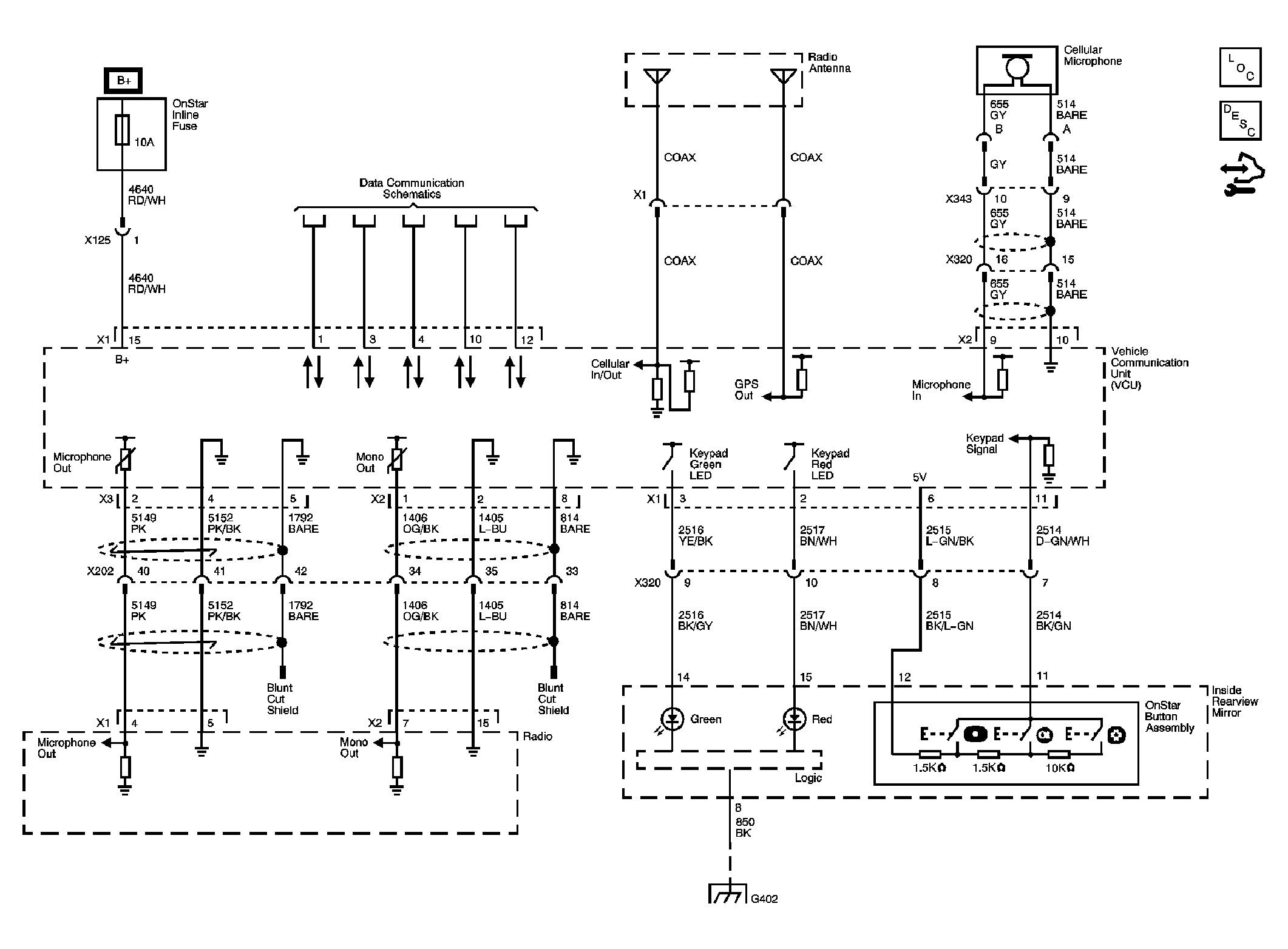

Home >> GMC >> 2007 >> Acadia SLT, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Cellular System, Entertainment System, And Navigation System >> Schematic and Routing Diagrams >> OnStar Schematics
