Ambient Air Temperature Gage Sensor Replacement

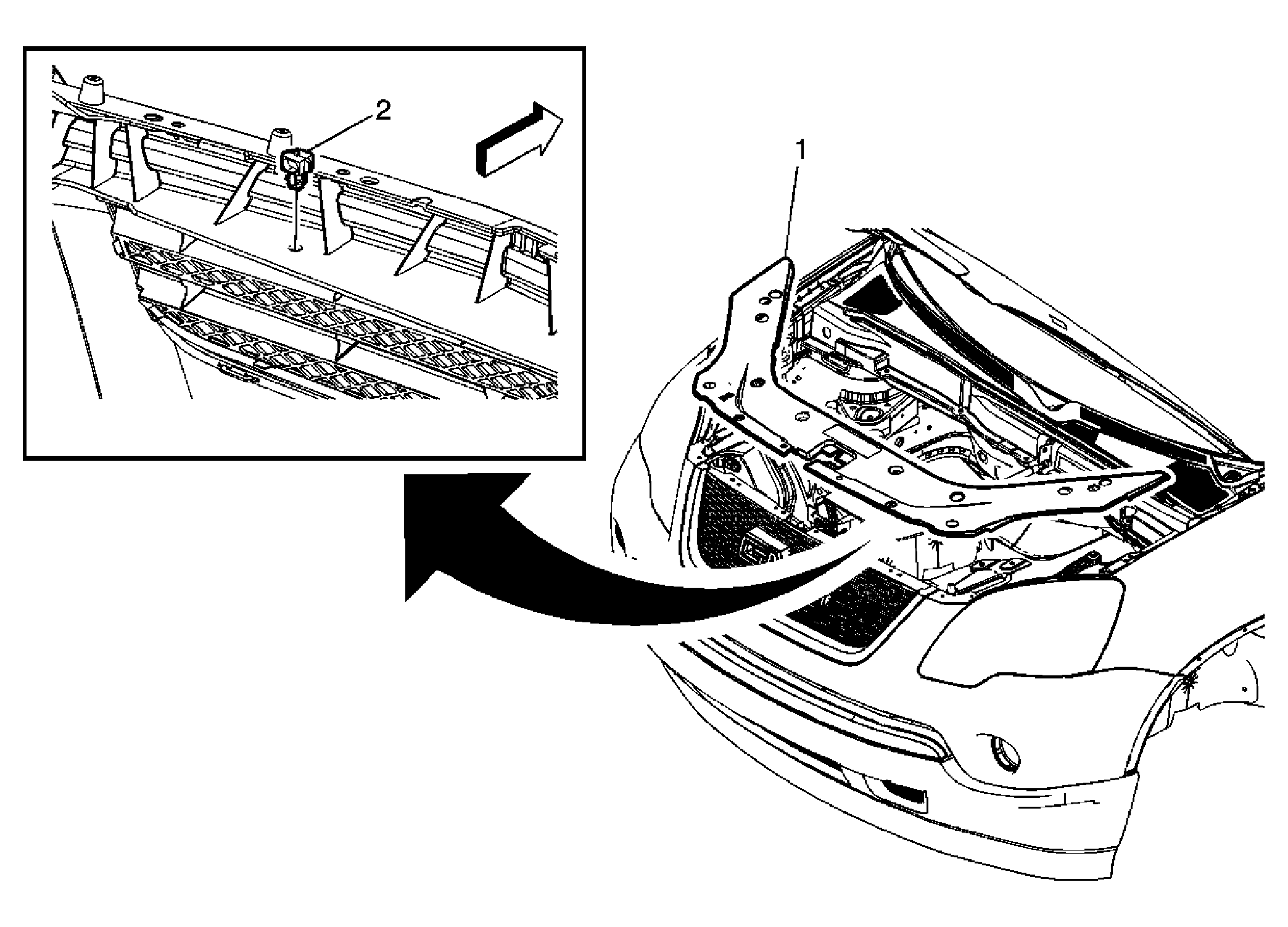

Fig 1: Locating Ambient Air Temperature Gage Sensor
GM1853882Courtesy of GENERAL MOTORS CORP.
Ambient Air Temperature Gage Sensor Replacement

Callout Component Name
1 Front Compartment Sight Shield
Refer to Front Compartment Sight Shields Replacement .
2 Ambient Air Temperature Sensor

Procedures

  1. Disconnect the electrical connector from the sensor.
  2. Unsnap the sensor from the front fascia.
