SIR Schematics

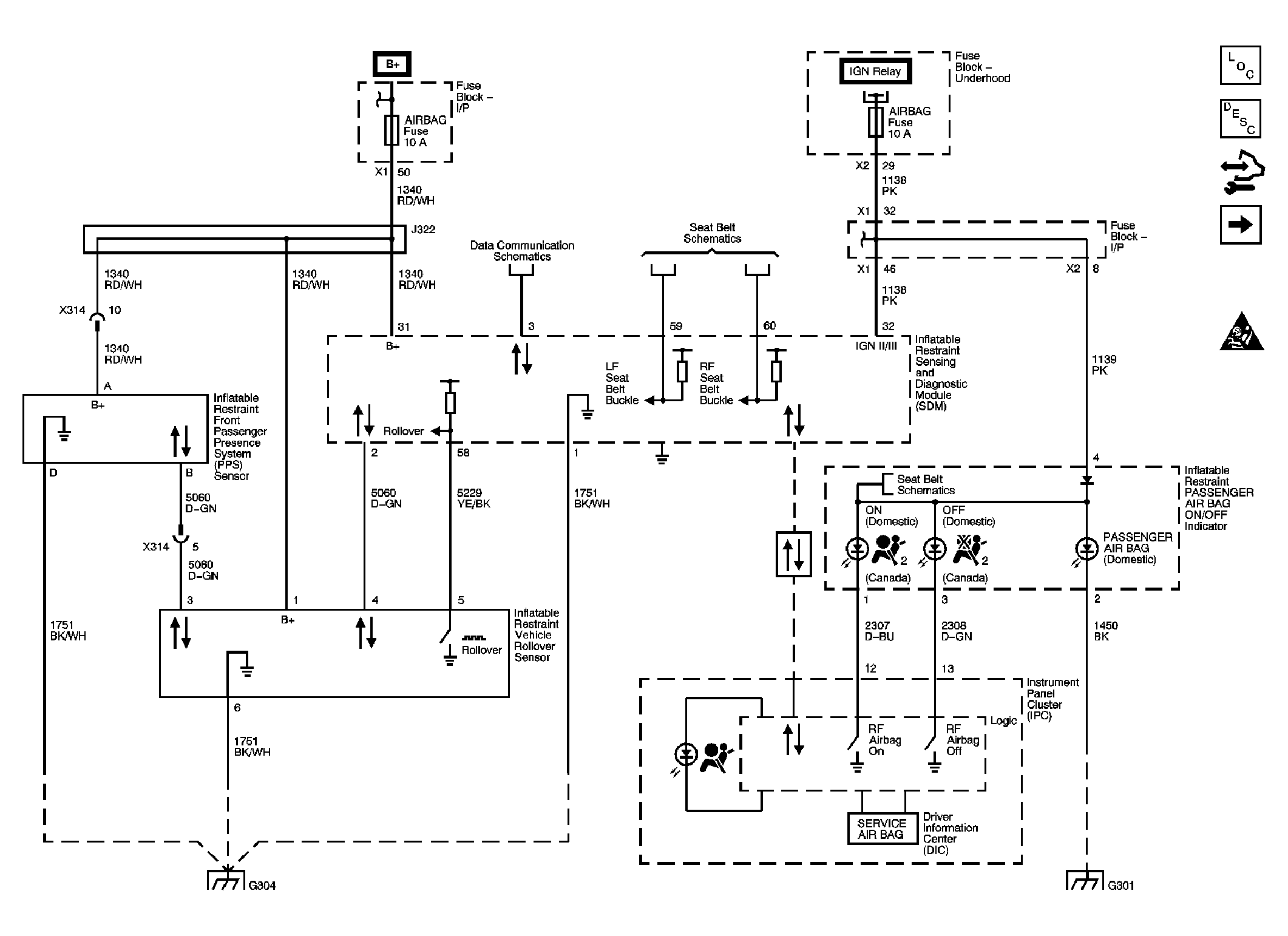

Fig 1: Module Power, Ground, Indicators, Rollover/Passenger Presence Sensors - Schematic
GM1843928Courtesy of GENERAL MOTORS CORP.

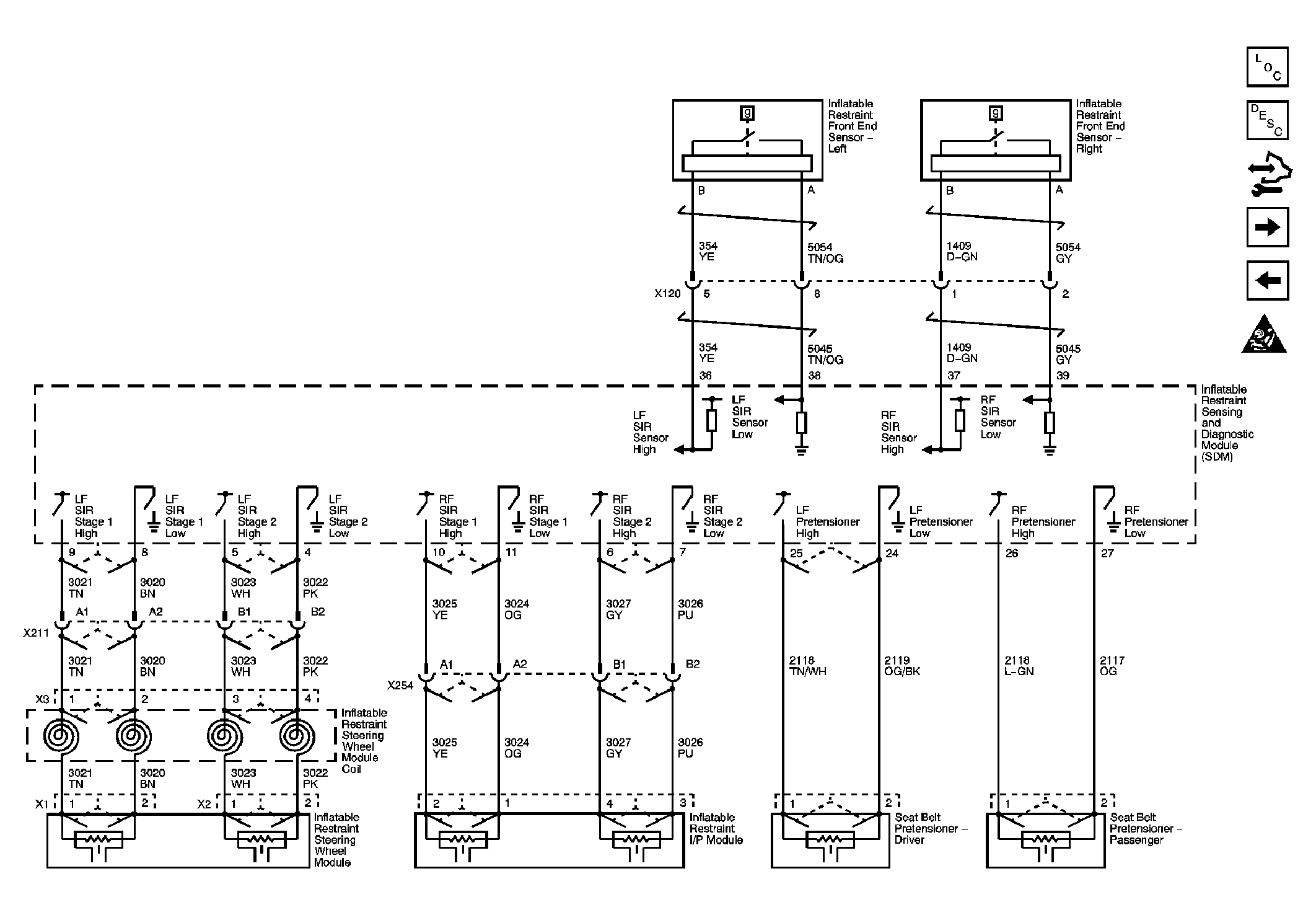

Fig 2: Front End Sensors, Seat Belt Pretensioners, And Front Air Bags - Schematic
GM1843929Courtesy of GENERAL MOTORS CORP.

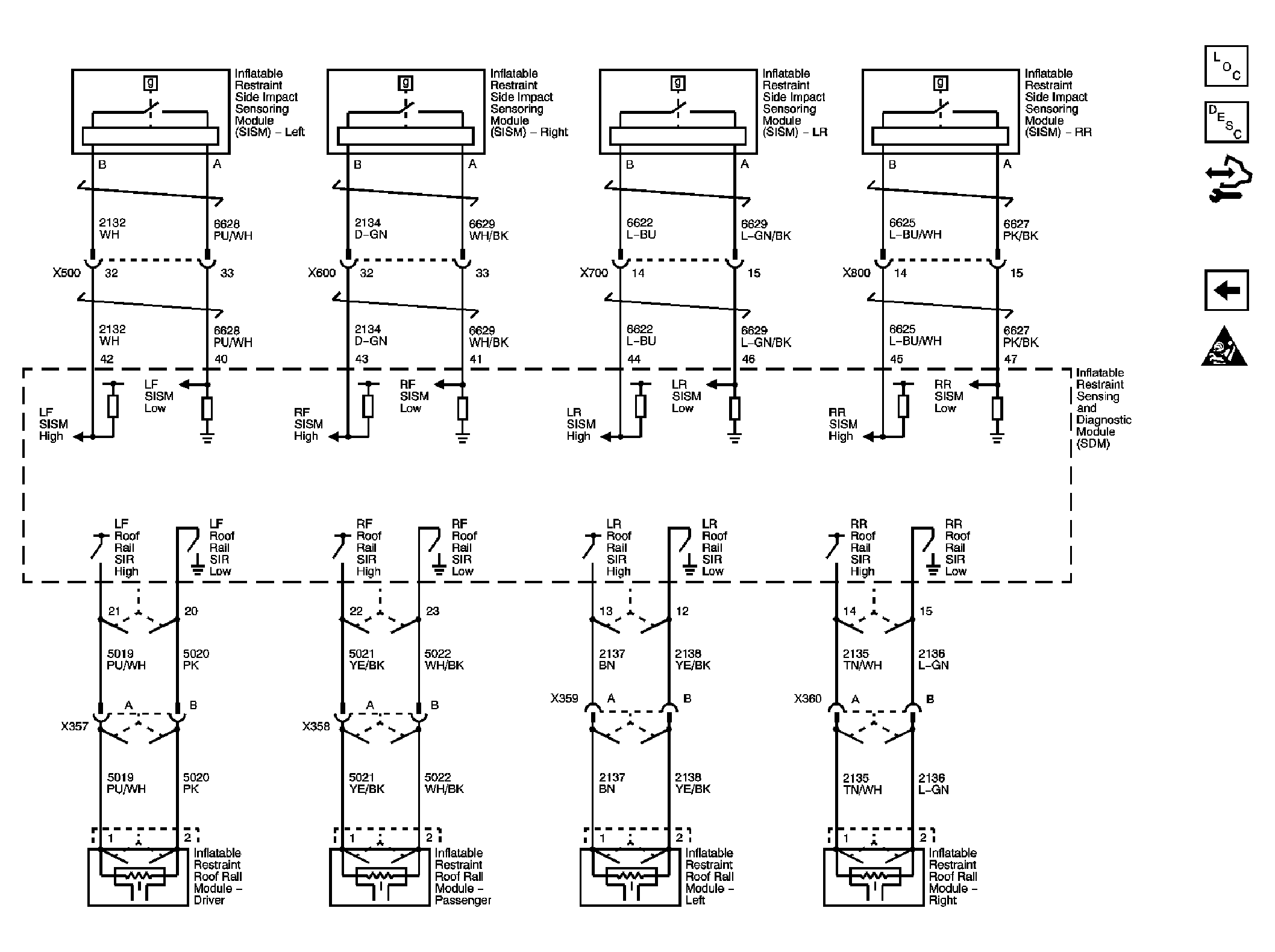

Fig 3: Side Impact Sensors And Roof Rail/Side Impact Air Bags - Schematic
GM1843930Courtesy of GENERAL MOTORS CORP.
