HVAC Component Views

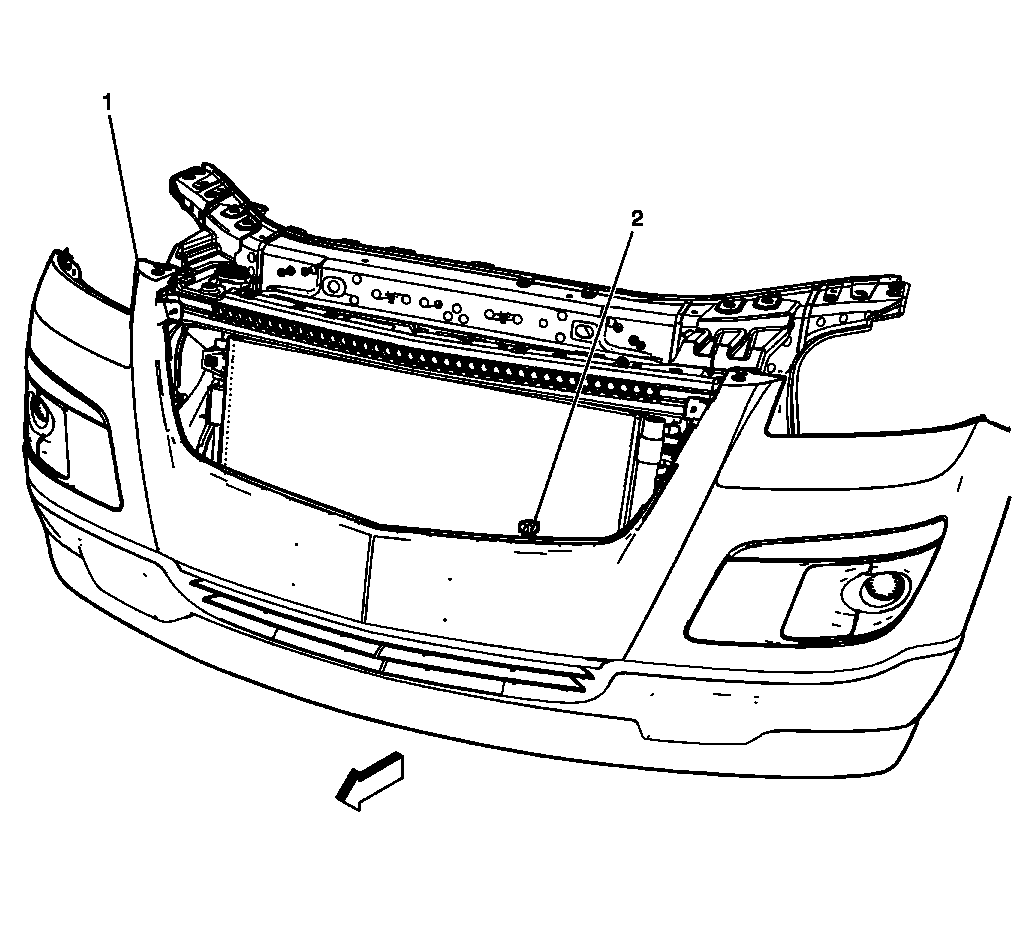

Fig 1: Identifying Ambient Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fascia
2	Ambient Temperature Sensor

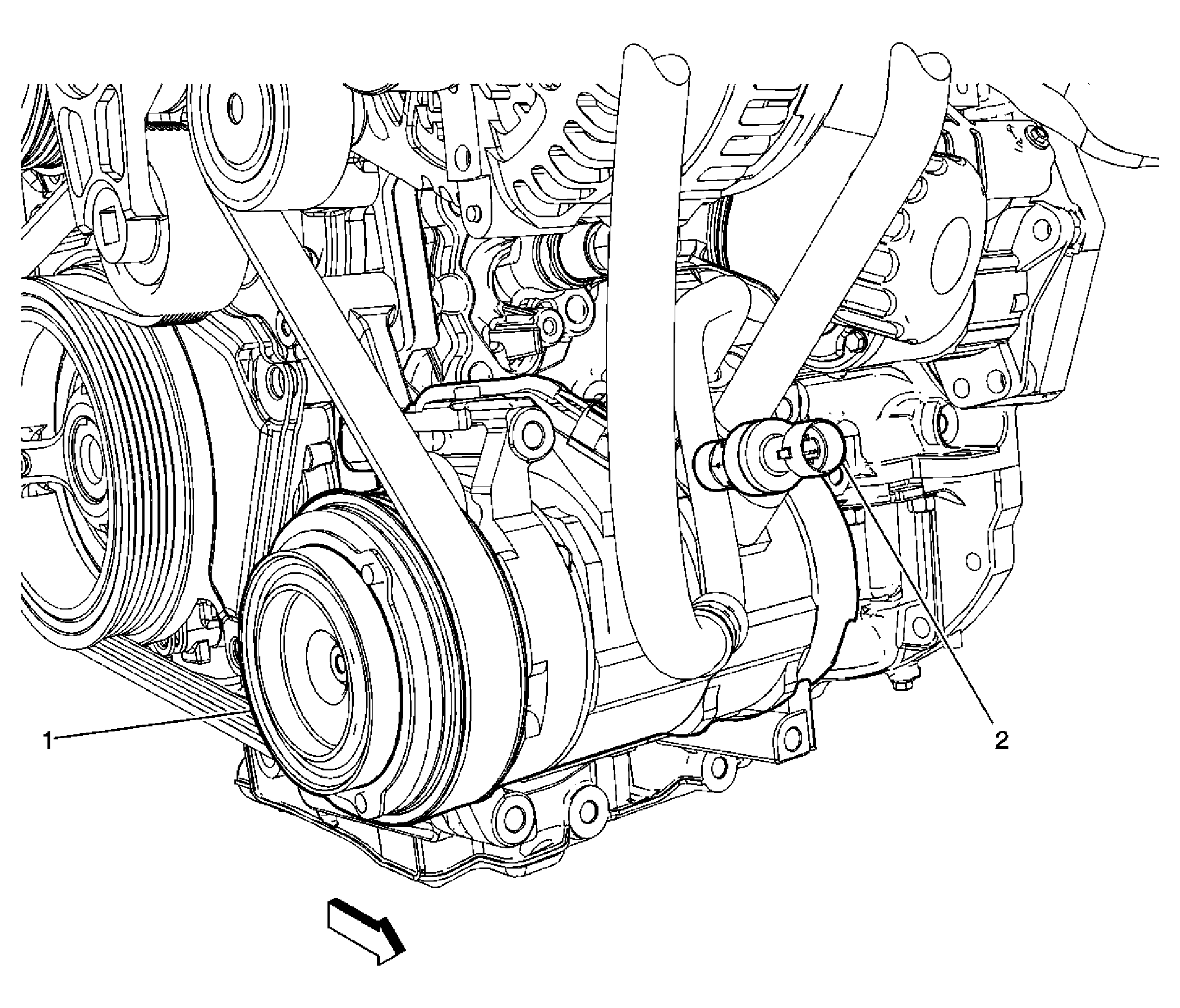

Fig 2: Identifying A/C Refrigerant Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor
2	A/C Refrigerant Pressure Sensor

Fig 3: View Of Camshaft Position (CMP) Actuator Solenoids And Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1
2	Camshaft Position (CMP) Sensor - Intake Bank 1
3	Camshaft Position (CMP) Sensor - Intake Bank 2
4	Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2
5	Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2
6	Camshaft Position (CMP) Sensor - Exhaust Bank 2
7	Generator
8	A/C Compressor Clutch
9	Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 1
10	Camshaft Position (CMP) Sensor - Exhaust Bank 1

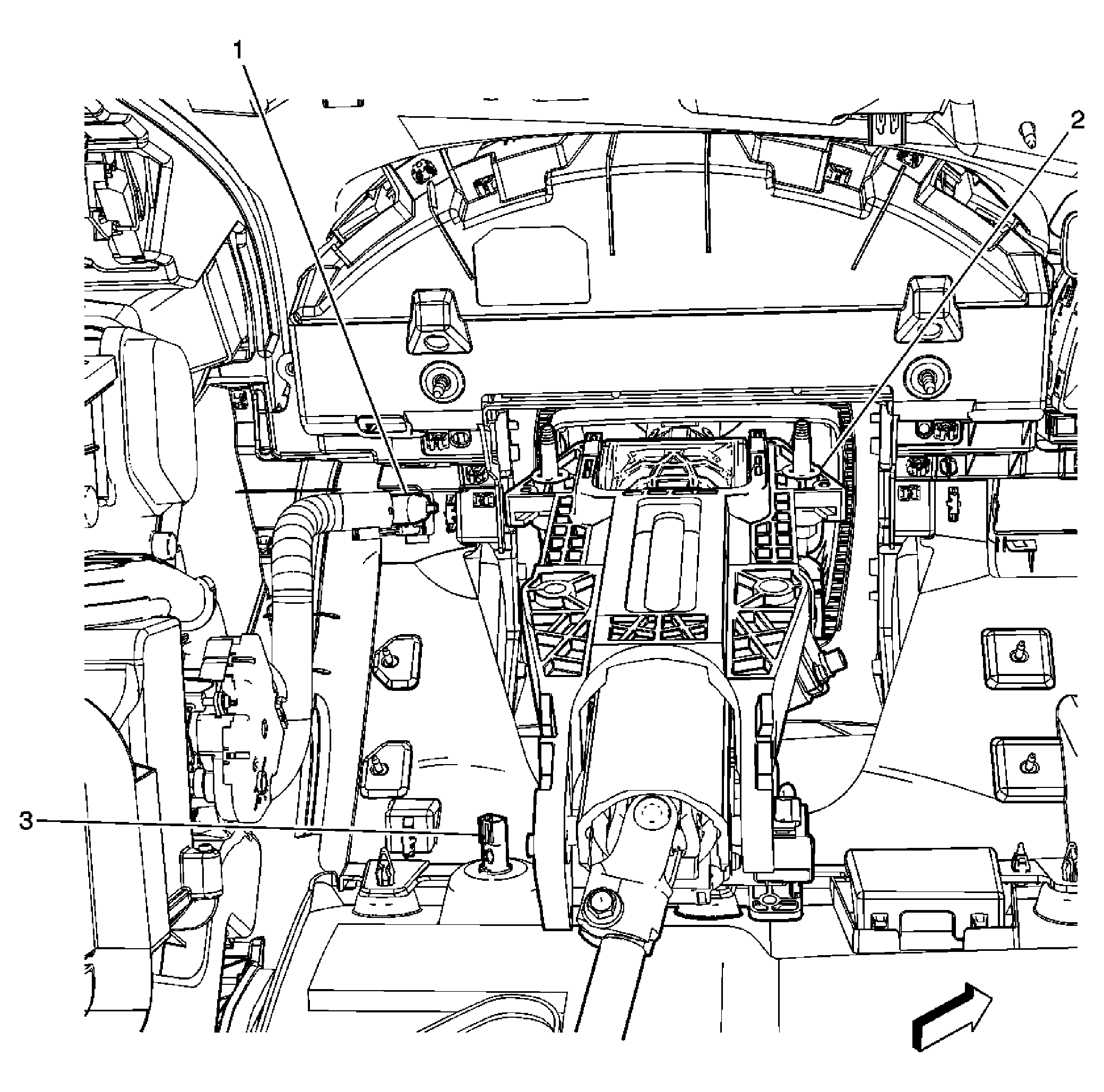

Fig 4: View Near The Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor
2	Steering Column
3	Courtesy Lamp - Left Footwell

Fig 5: View Of Air Temperature Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Sensor - Upper Left
2	Air Temperature Actuator - Left
3	Air Temperature Sensor - Lower Right
4	Air Temperature Actuator - Right
5	Mode Actuator
6	Air Temperature Sensor - Upper Right
7	Blower Motor
8	Blower Motor Control Module
9	Evaporator Temperature Sensor
10	Air Temperature Sensor - Lower Left

Fig 6: Locating I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Instrument Panel Cluster (IPC)
3	Radio
4	Sunload Sensor (CJ2) / Ambient Light Sensor (C67)
5	I/P Trim
6	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
7	HVAC Control Module
8	Heated Seat Switch - Passenger (KA1)
9	Auxiliary Power Outlet - I/P
10	I/P Switch Assembly
11	Heated Seat Switch - Driver (KA1)
12	Hazard Switch
13	Driver Information Center (DIC) Switch (UH9)

Fig 7: Identifying Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Audio/HVAC Control (UK6)/HVAC Control Assembly - Auxiliary (without UK6)
2	Heated Seat Switch - Driver (KA1)
3	Heated Seat Switch - Passenger (KA1)
4	Auxiliary Power Outlet - I/P
5	Auxiliary Power Outlet - Console Rear
6	Audio/Video Adapter (U42)

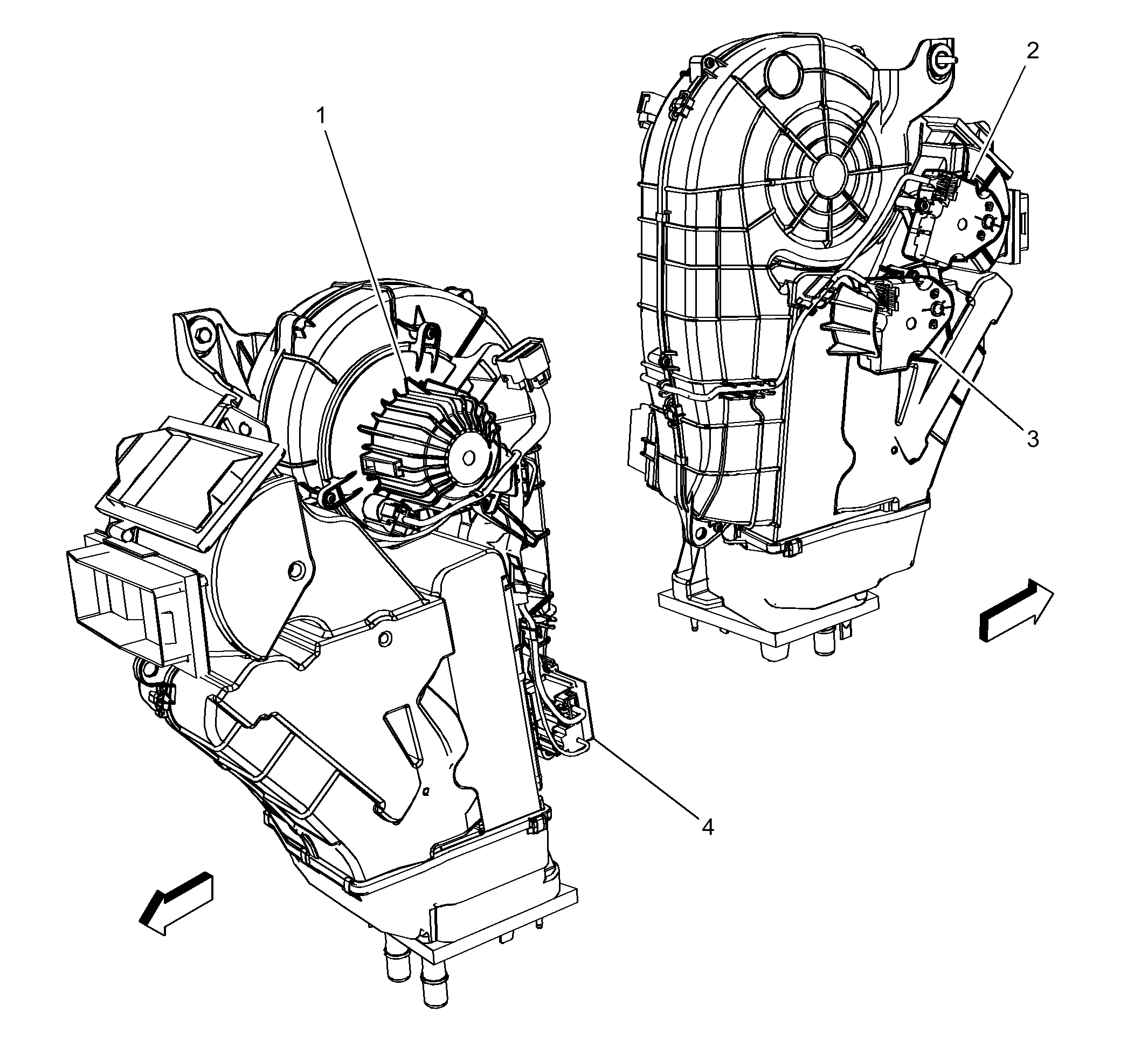

Fig 8: Identifying Interior HVAC Module - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor - Auxiliary
2	Mode Actuator - Auxiliary
3	Air Temperature Actuator - Auxiliary
4	Blower Motor Control Module - Auxiliary
