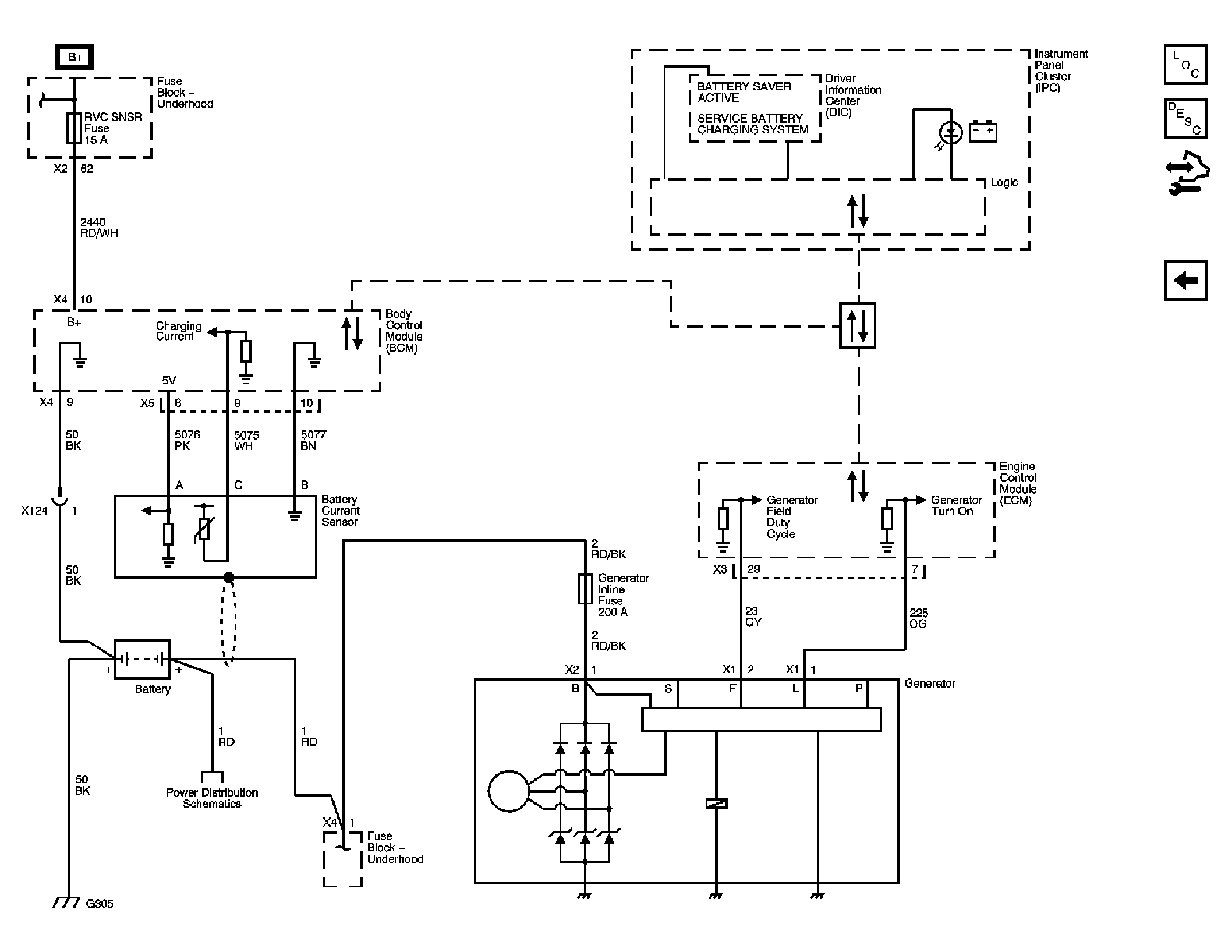

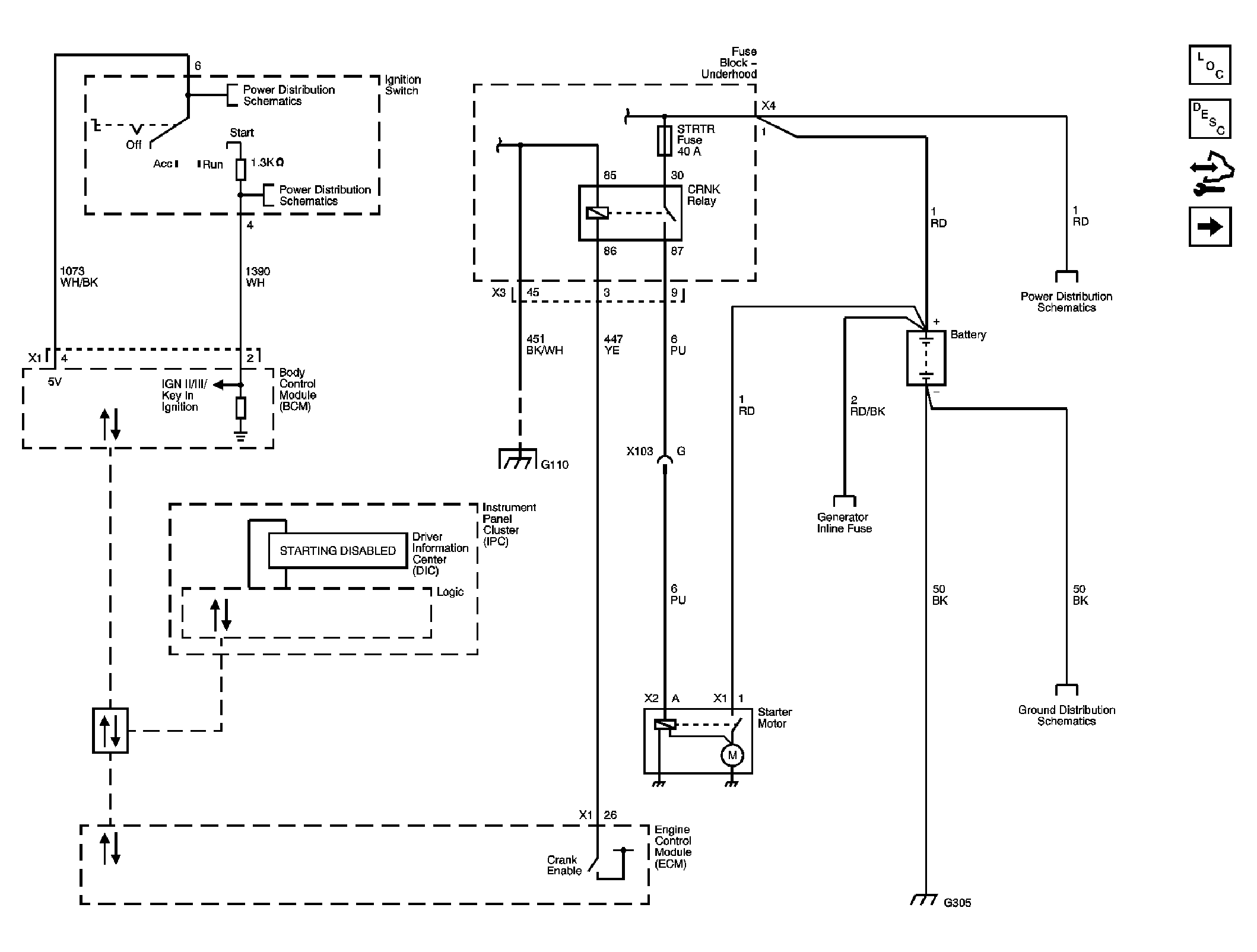

Home >> GMC >> 2007 >> Acadia SLE, AWD >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Battery, Charging System And Starting System >> Schematic and Routing Diagrams >> Starting and Charging Schematics
