Trailer Connector/Provision Schematics

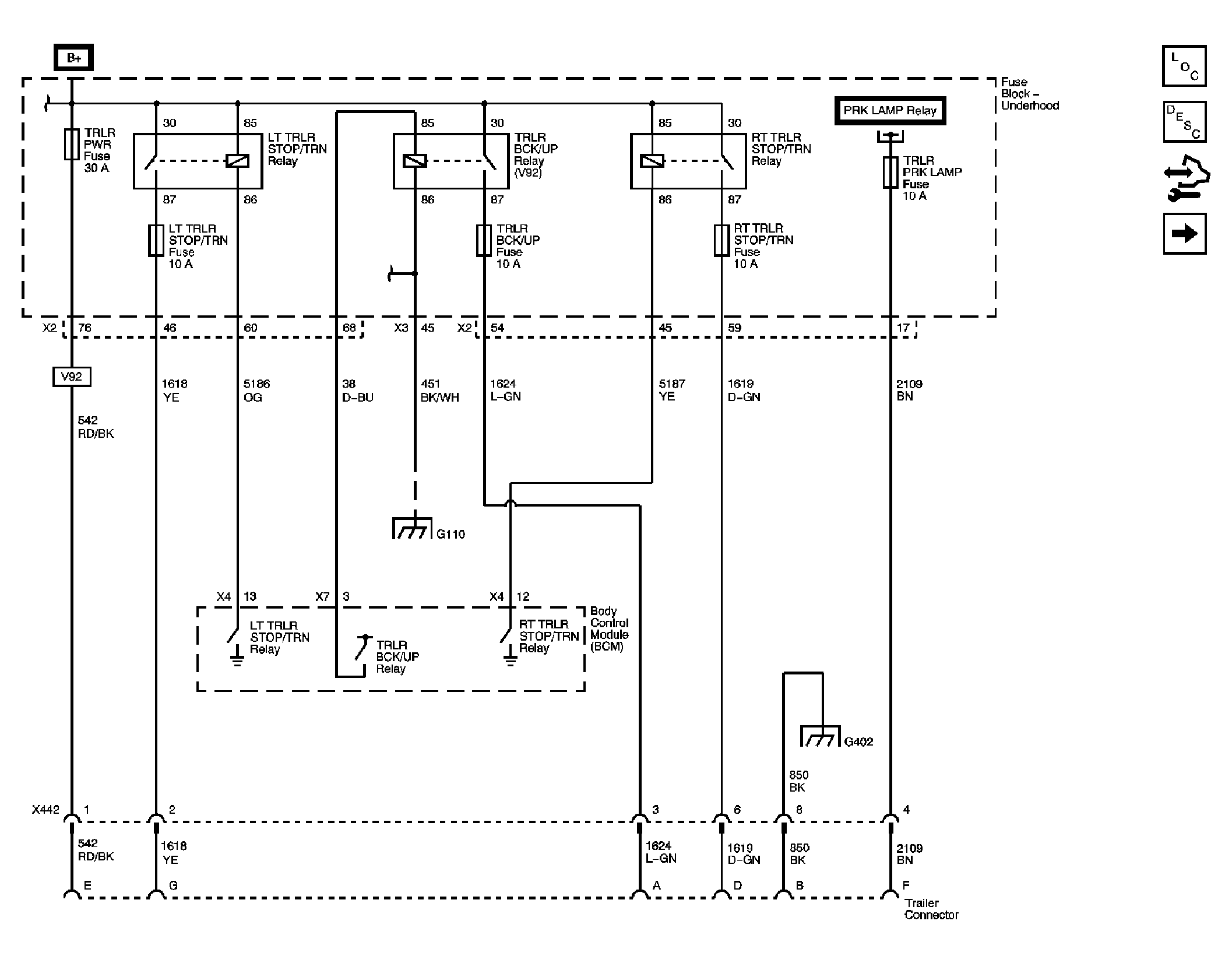

Fig 1: Trailer Connector - Schematic

GM1844239

Courtesy of GENERAL MOTORS CORP.

Fig 2: Blunt Cuts - V92 - Schematic

GM1844240

Courtesy of GENERAL MOTORS CORP.
