Displays and Gages Component Views

Fig 1: View Of Engine Components - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Coolant Temperature (ECT) Sensor
2	Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
3	Starter Motor
4	Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
5	Knock Sensor (KS) 2
6	Engine Oil Pressure (EOP) Switch

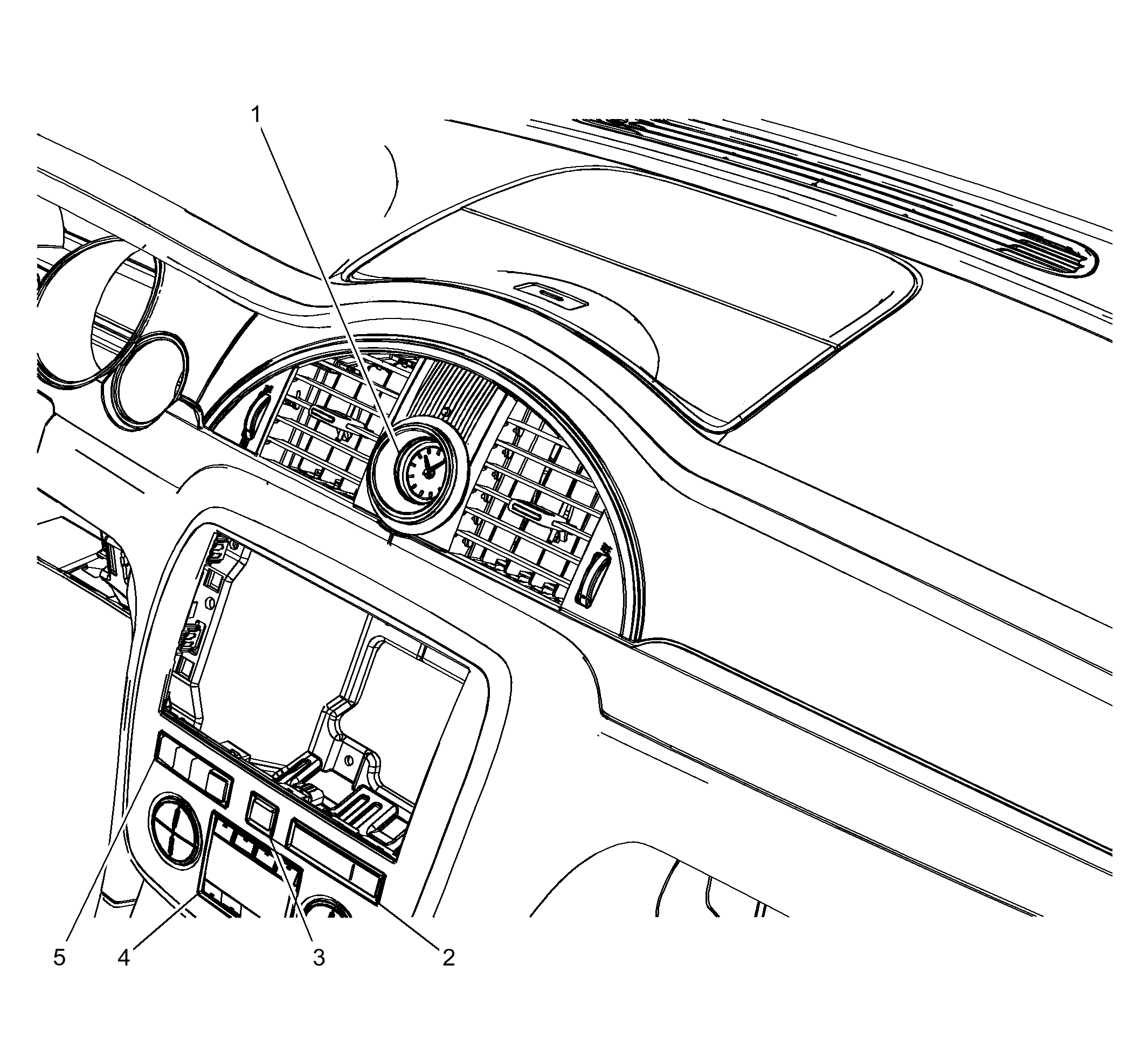

Fig 2: View Of Analog Clock (W49)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Analog Clock
2	I/P Trim

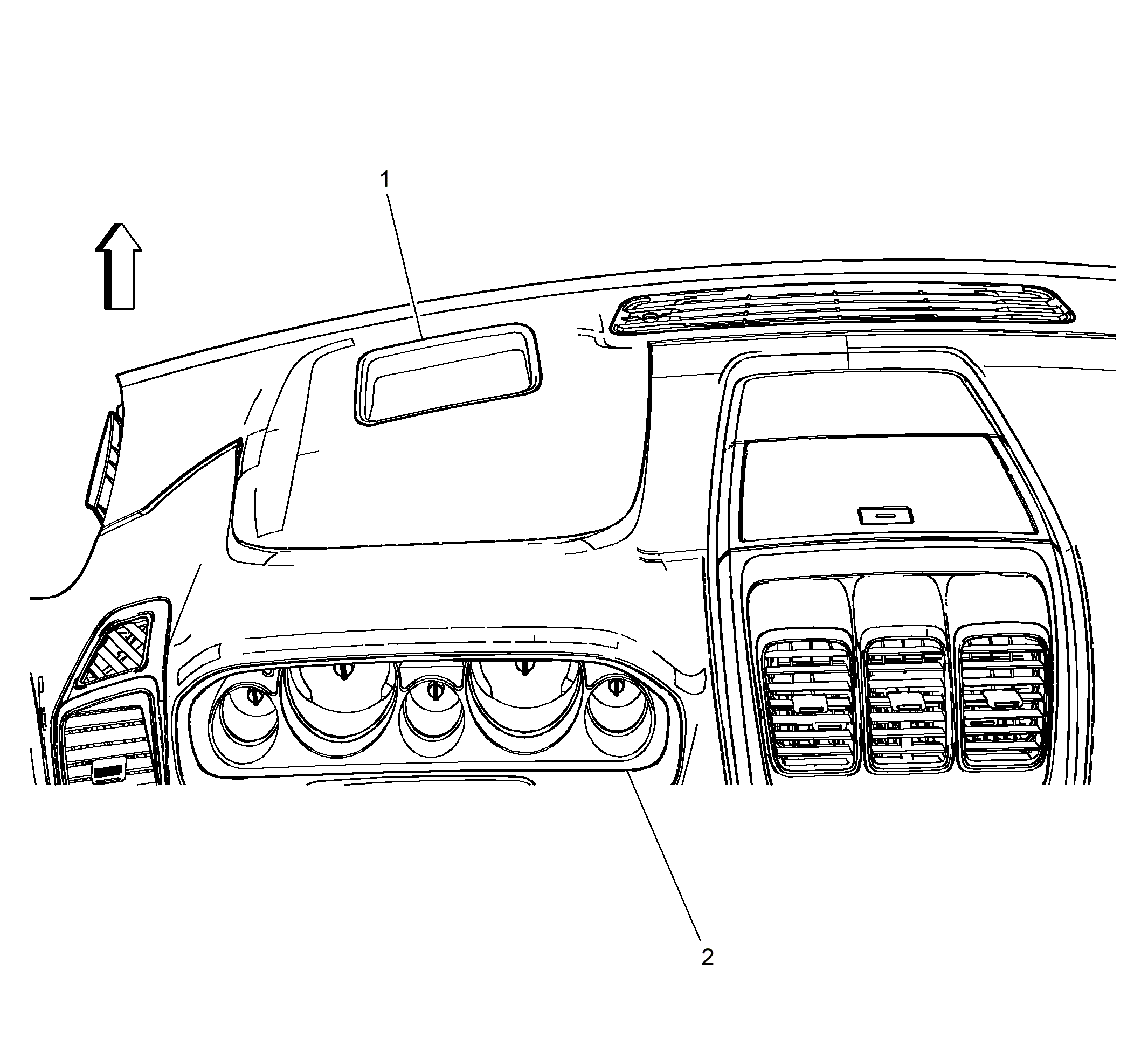

Fig 3: View Of Above The Instrument Cluster (UV6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Head Up Display
2	I/P Trim
3	Instrument Panel Cluster (IPC)

Fig 4: Locating I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Instrument Panel Cluster (IPC)
3	Radio
4	Sunload Sensor (CJ2) / Ambient Light Sensor (C67)
5	I/P Trim
6	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
7	HVAC Control Module
8	Heated Seat Switch - Passenger (KA1)
9	Auxiliary Power Outlet - I/P
10	I/P Switch Assembly
11	Heated Seat Switch - Driver (KA1)
12	Hazard Switch and Driver Information Center (DIC) Switch (W49/Z88)
13	Head Up Display (HUD) Switch (WDA with UV6))
14	Driver Information Center (DIC) Switch (WDA with UH9)/Head Up Display (HUD) Switch (W49 or Z88 with UV6)
