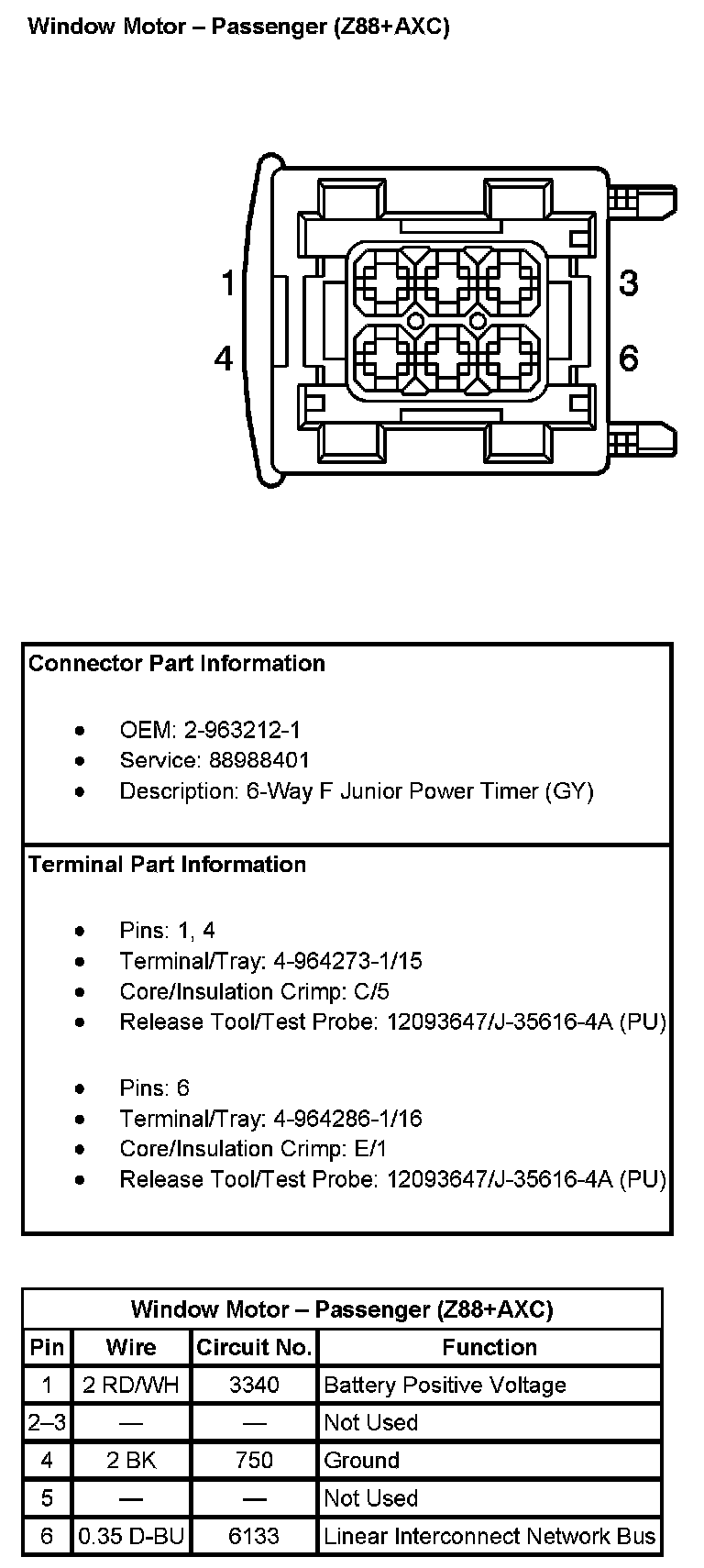

Window Motor - Passenger (With RPO Code Z88+AXC)
Window Motor - Passenger (With RPO Code Z88+AXC)
Window Motor - Passenger (With RPO Code Z88+AXC) Pin 1 To 6:
