Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - A/T >> Transmission Speed Sensor >> Locations

Transmission Speed Sensor: Locations

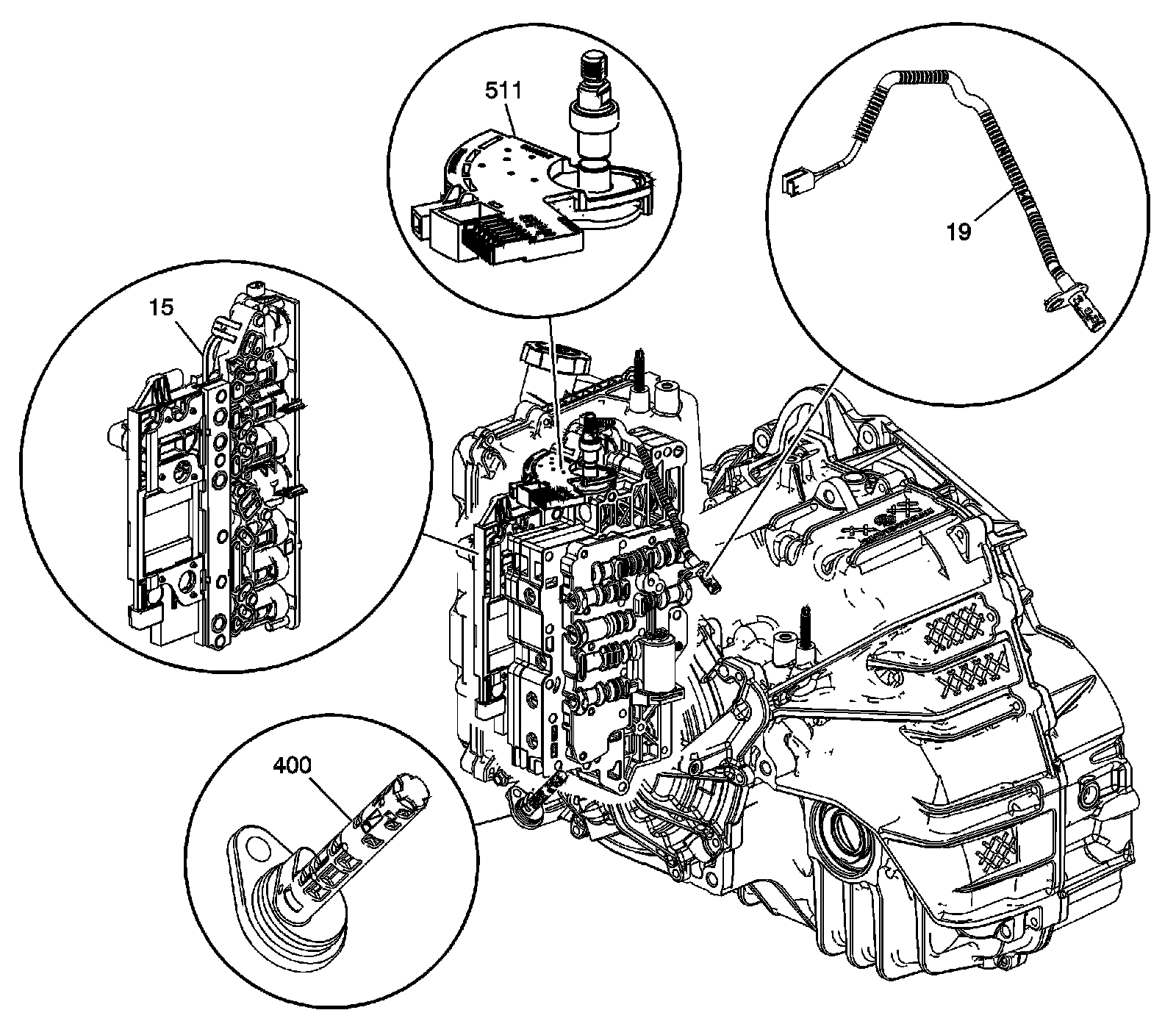

Automatic Transmission Electronic Component Views

Electronic Components

Electronic Components:




19 - A/Trans Output Speed Sensor Assembly
400 - A/Trans Input Speed Sensor Assembly
