Front Differential Drive Pinion Gear Bearing Thrust Washer and Front Differential Bearing Washer Measurement



Front Differential Drive Pinion Gear Bearing Thrust Washer and Front Differential Bearing Washer Measurement

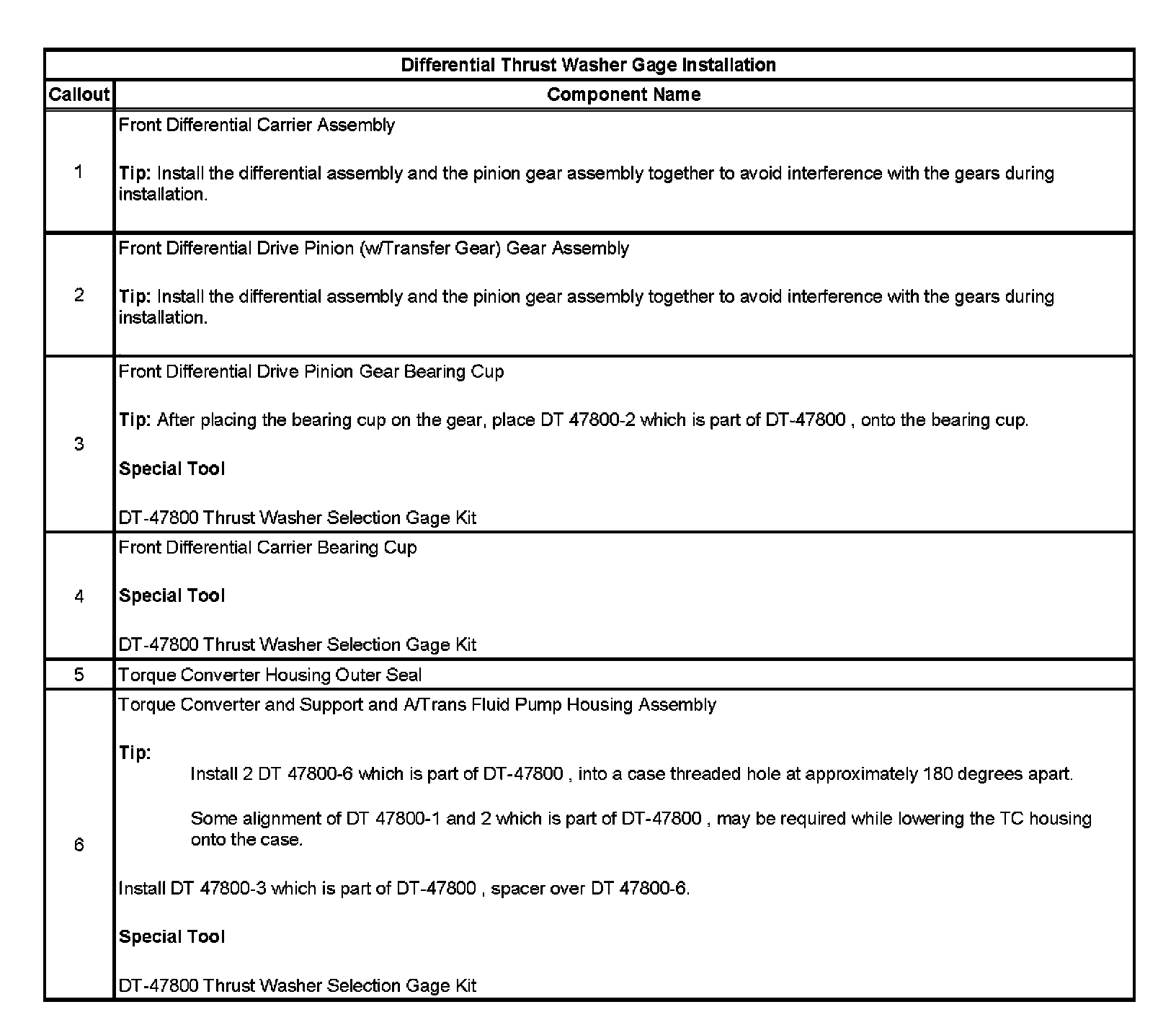

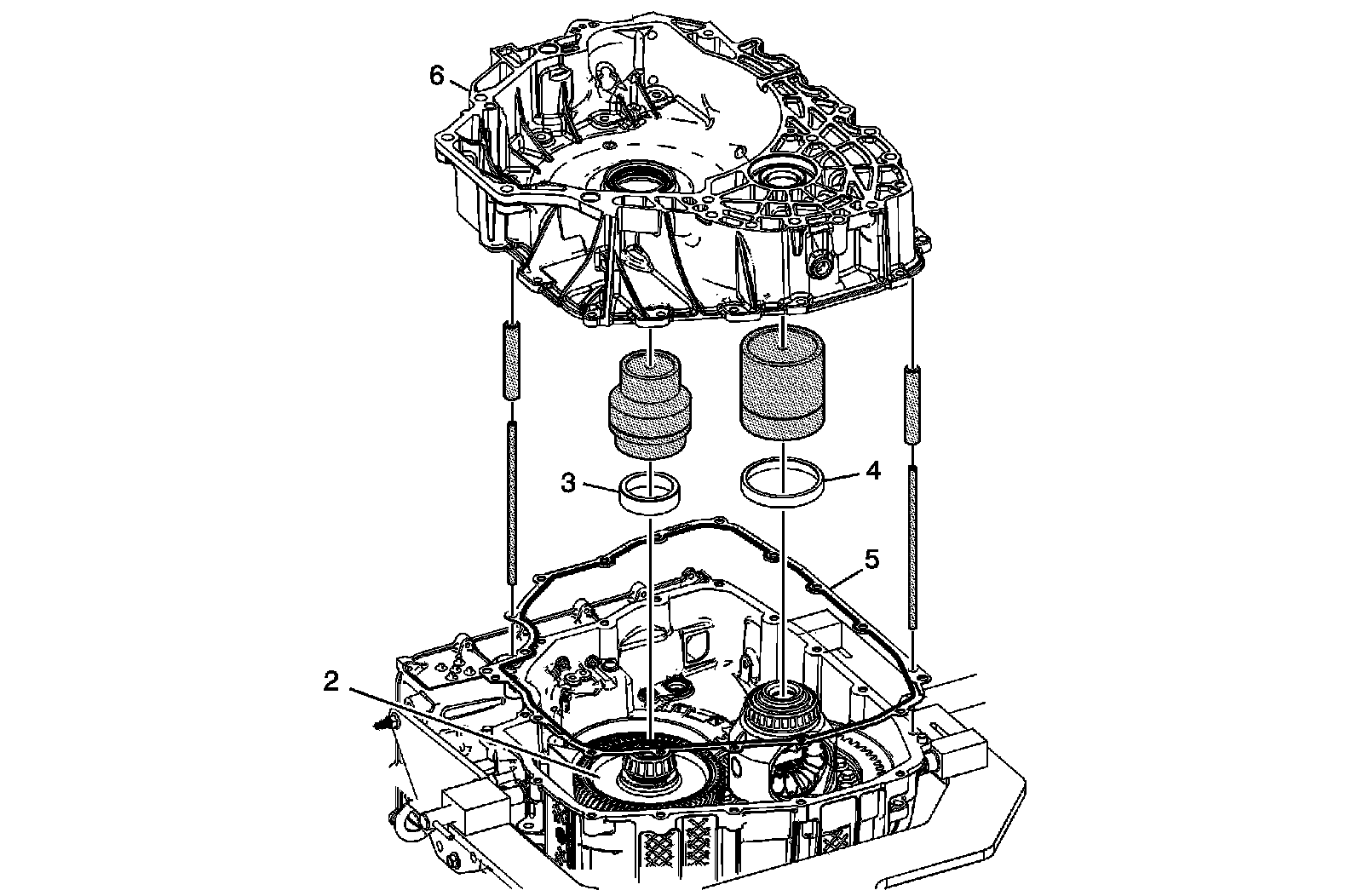

Differential Thrust Washer Gage Installation

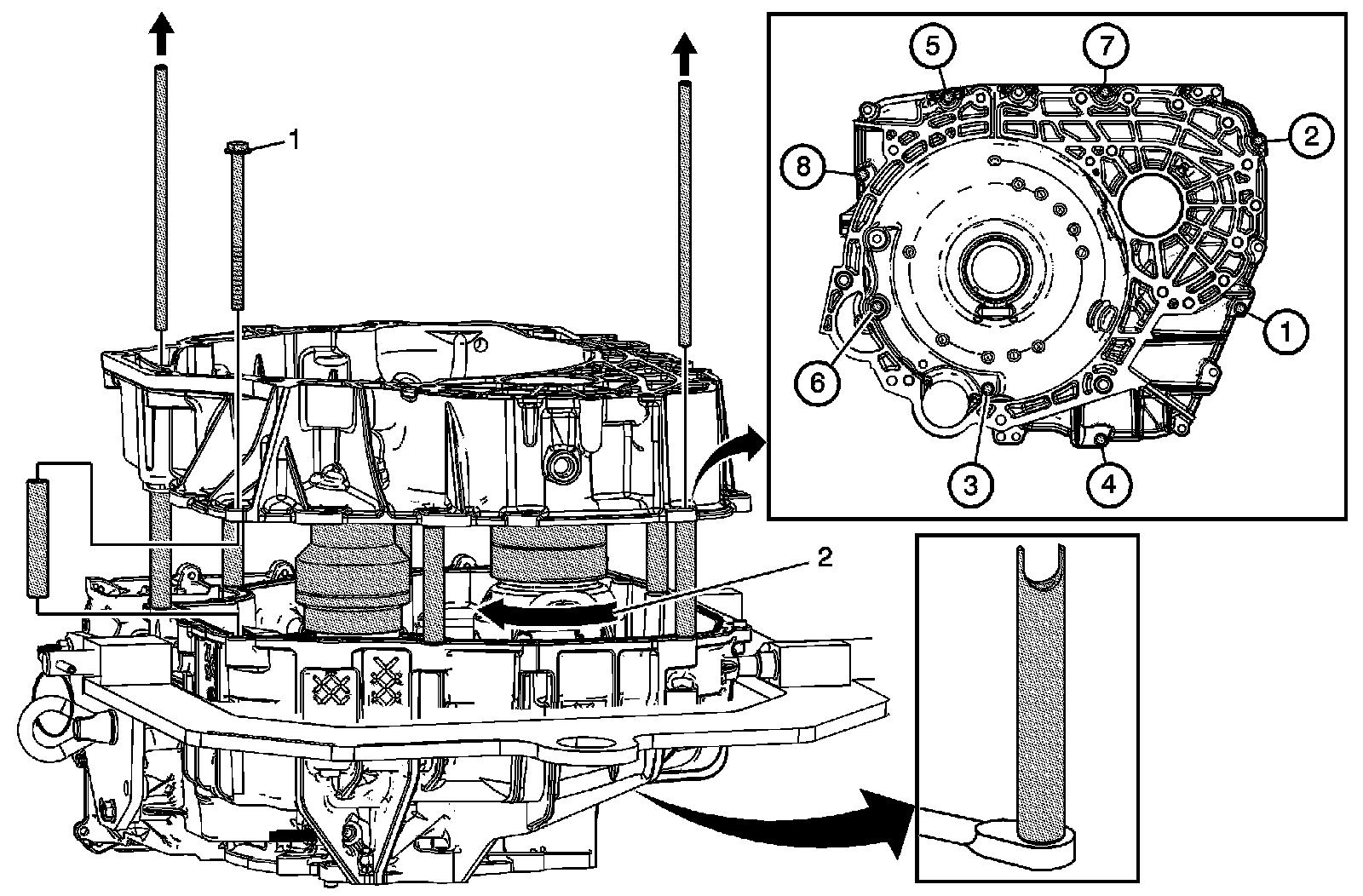

Torque Sequence

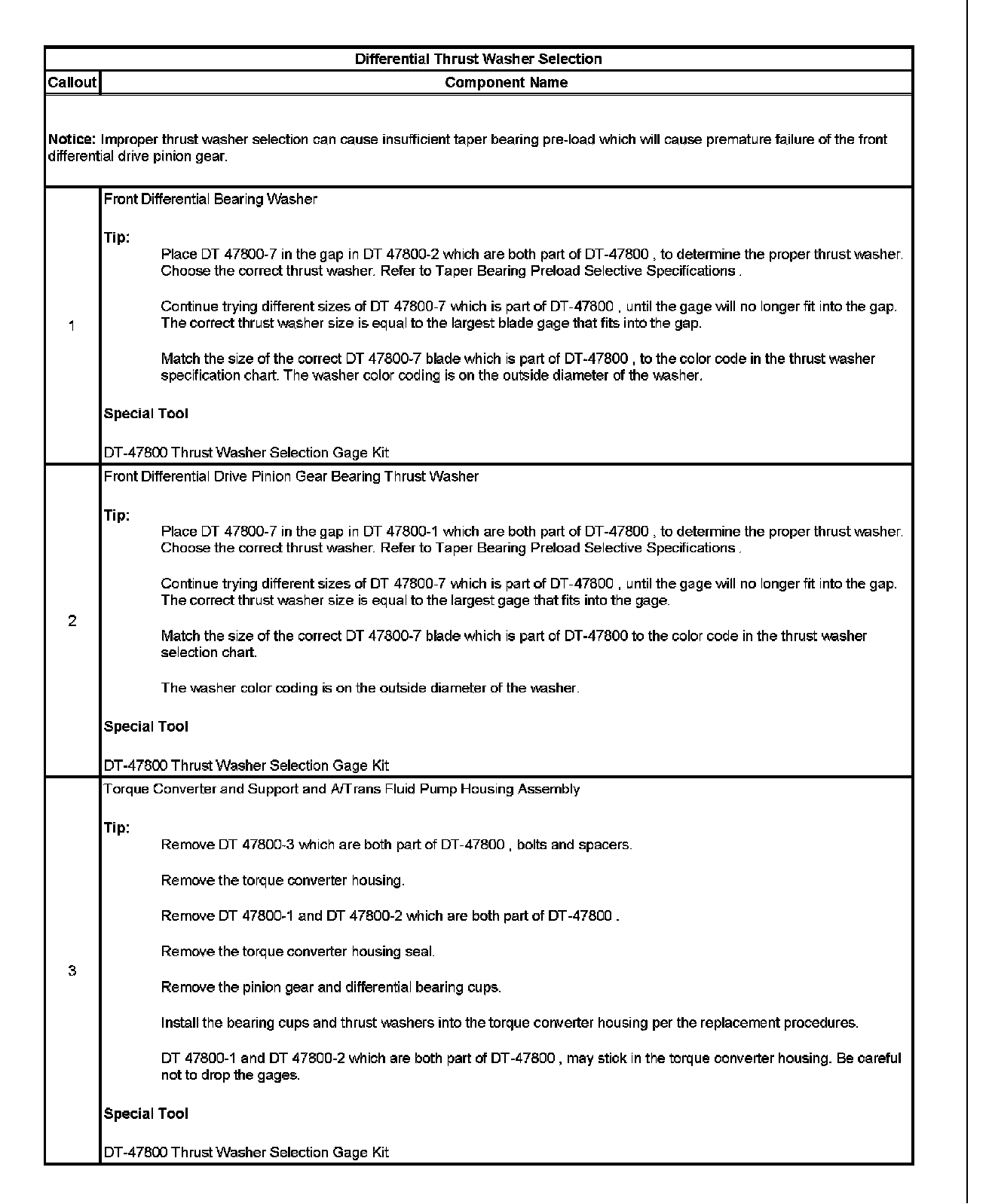

Differential Thrust Washer Selection
