Front Differential Drive Pinion Bearing Cup, Washer, and Lubricant Dam Replacement - Torque Converter Housing Side



Front Differential Drive Pinion Bearing Cup, Washer, and Lubricant Dam Replacement - Torque Converter Housing Side

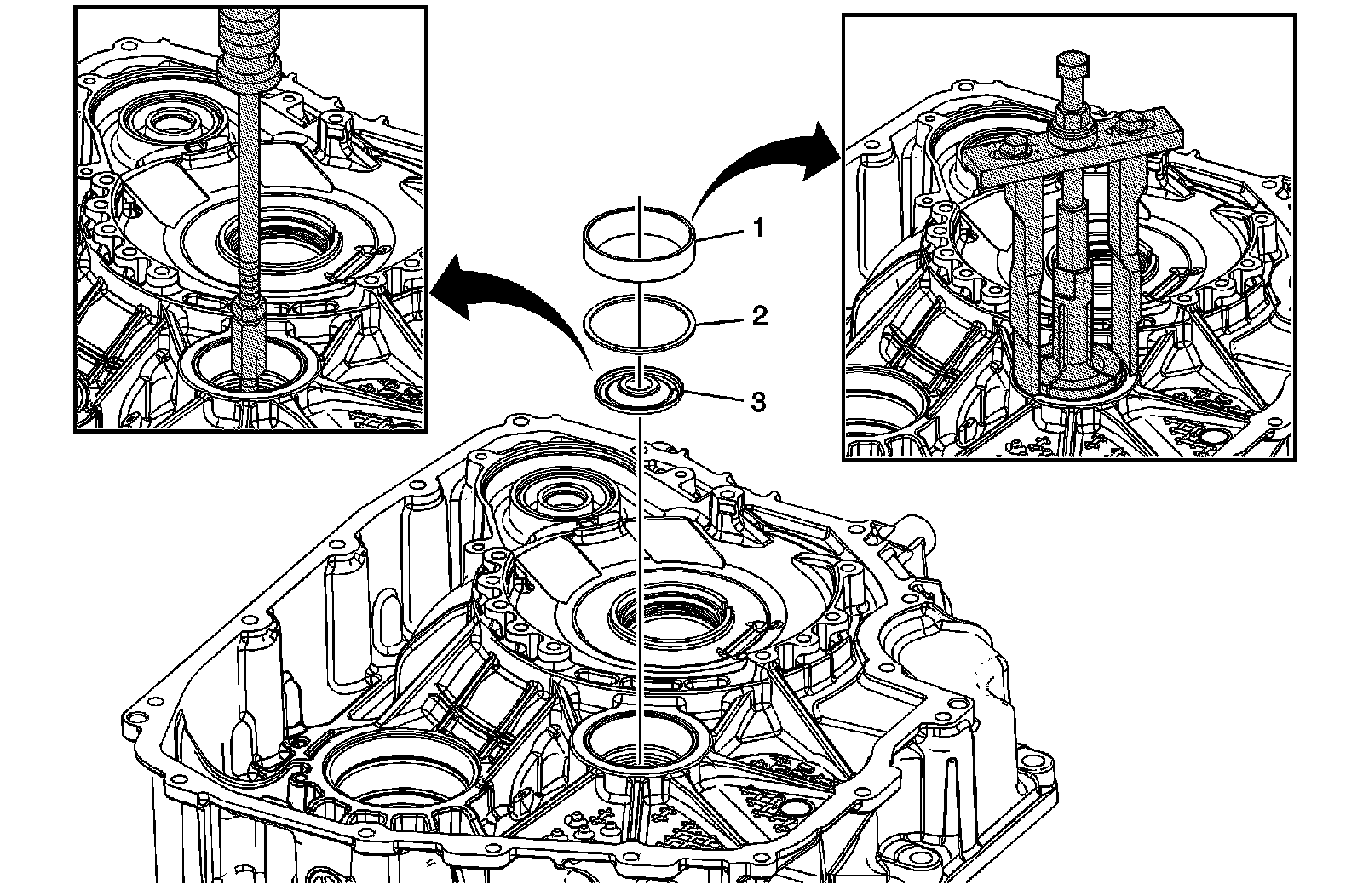

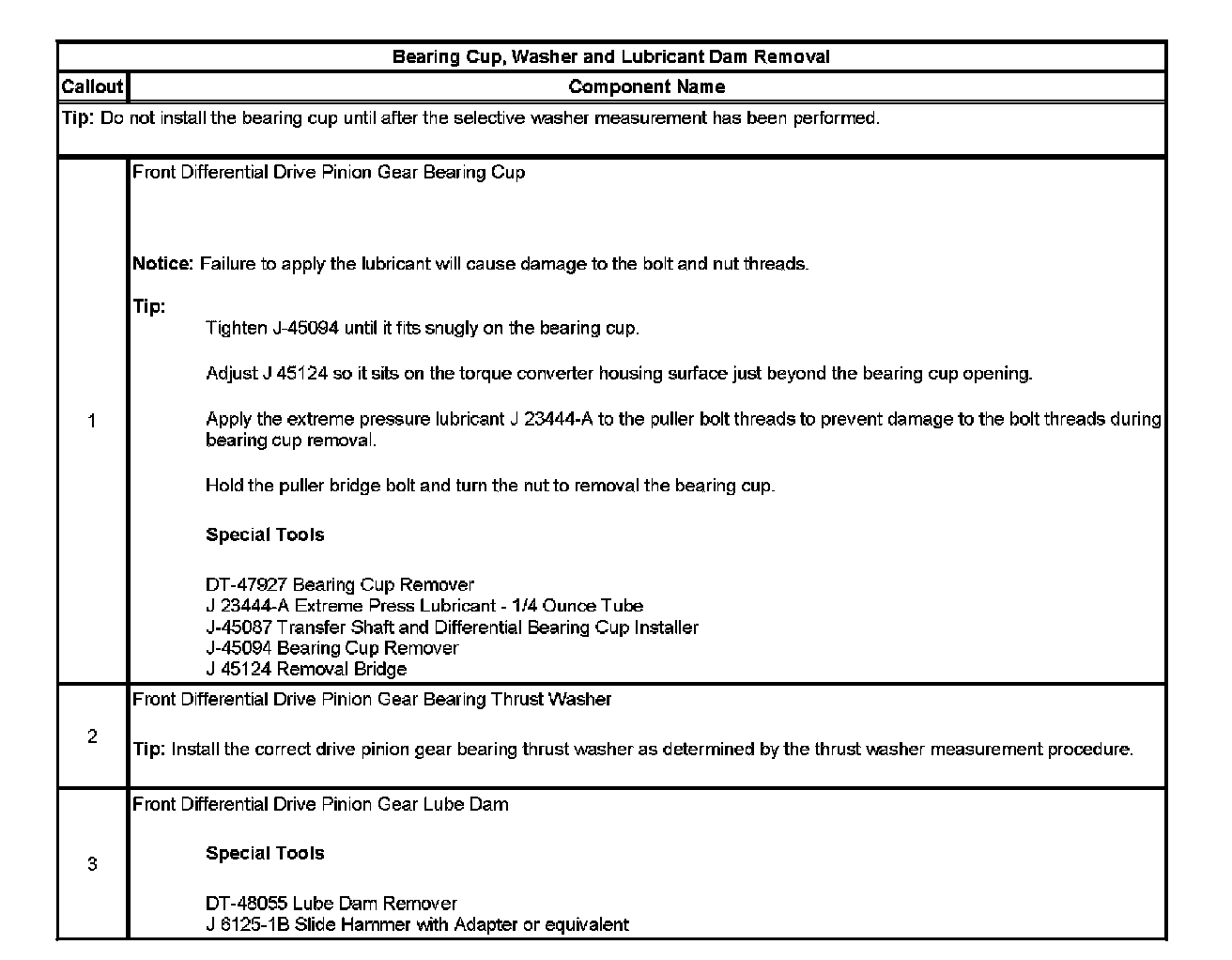

Bearing Cup, Washer and Lubricant Dam Removal

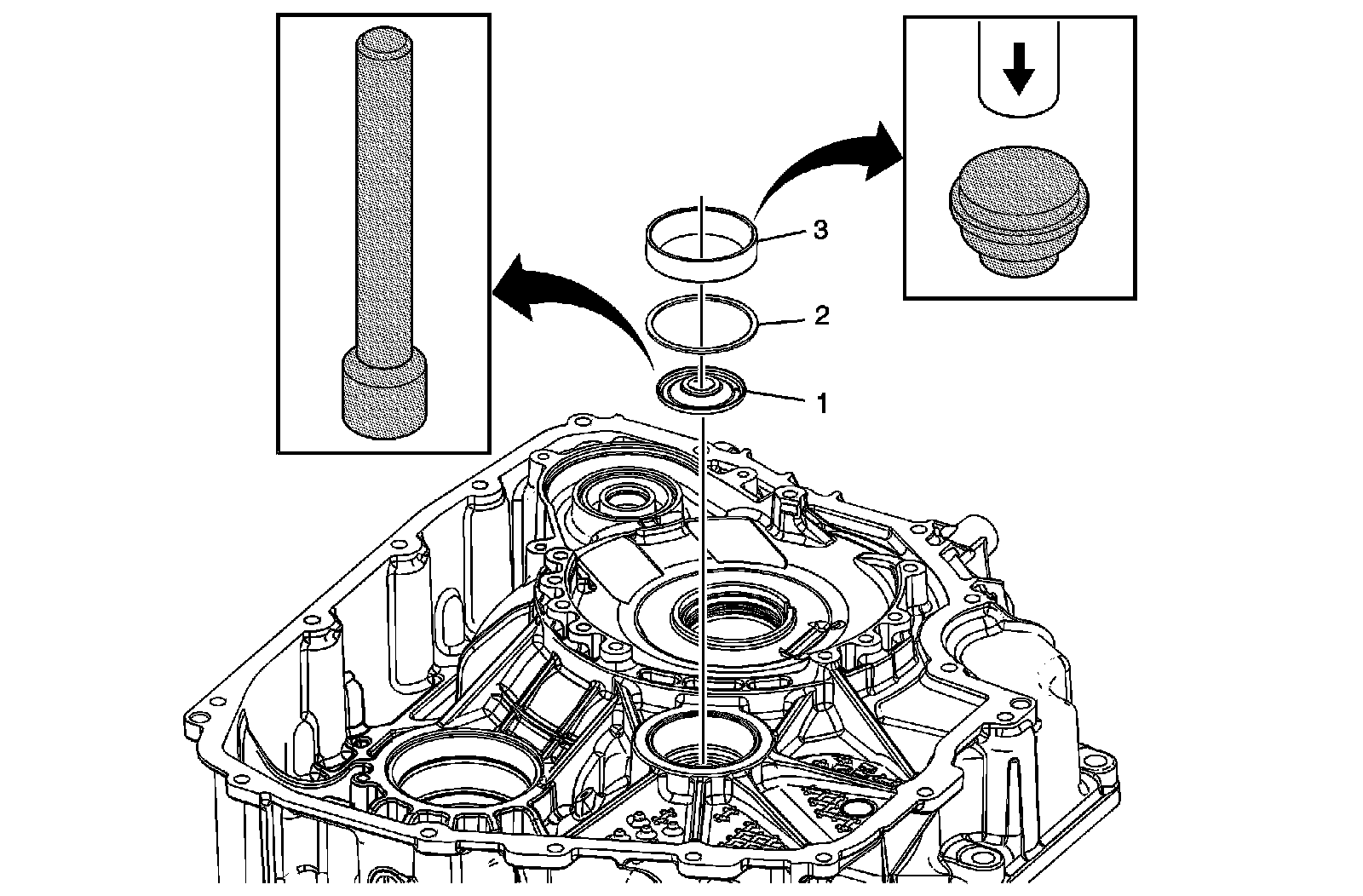

Bearing Cup, Washer and Lubricant Dam Installation
