3-5 Reverse and 4-5-6 Clutch Housing Assemble



3-5 Reverse and 4-5-6 Clutch Housing Assemble

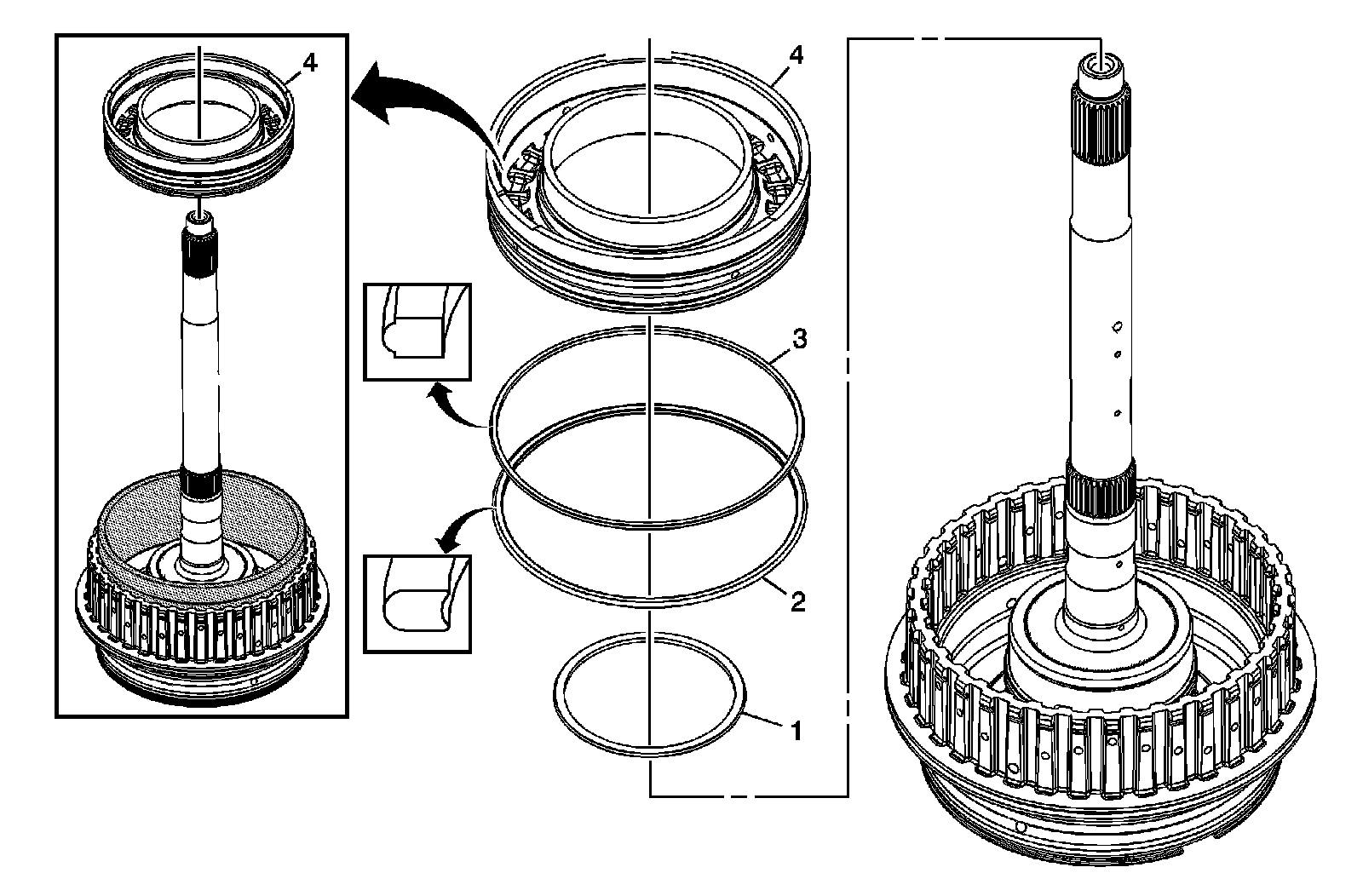

4-5-6 Clutch Piston Installation

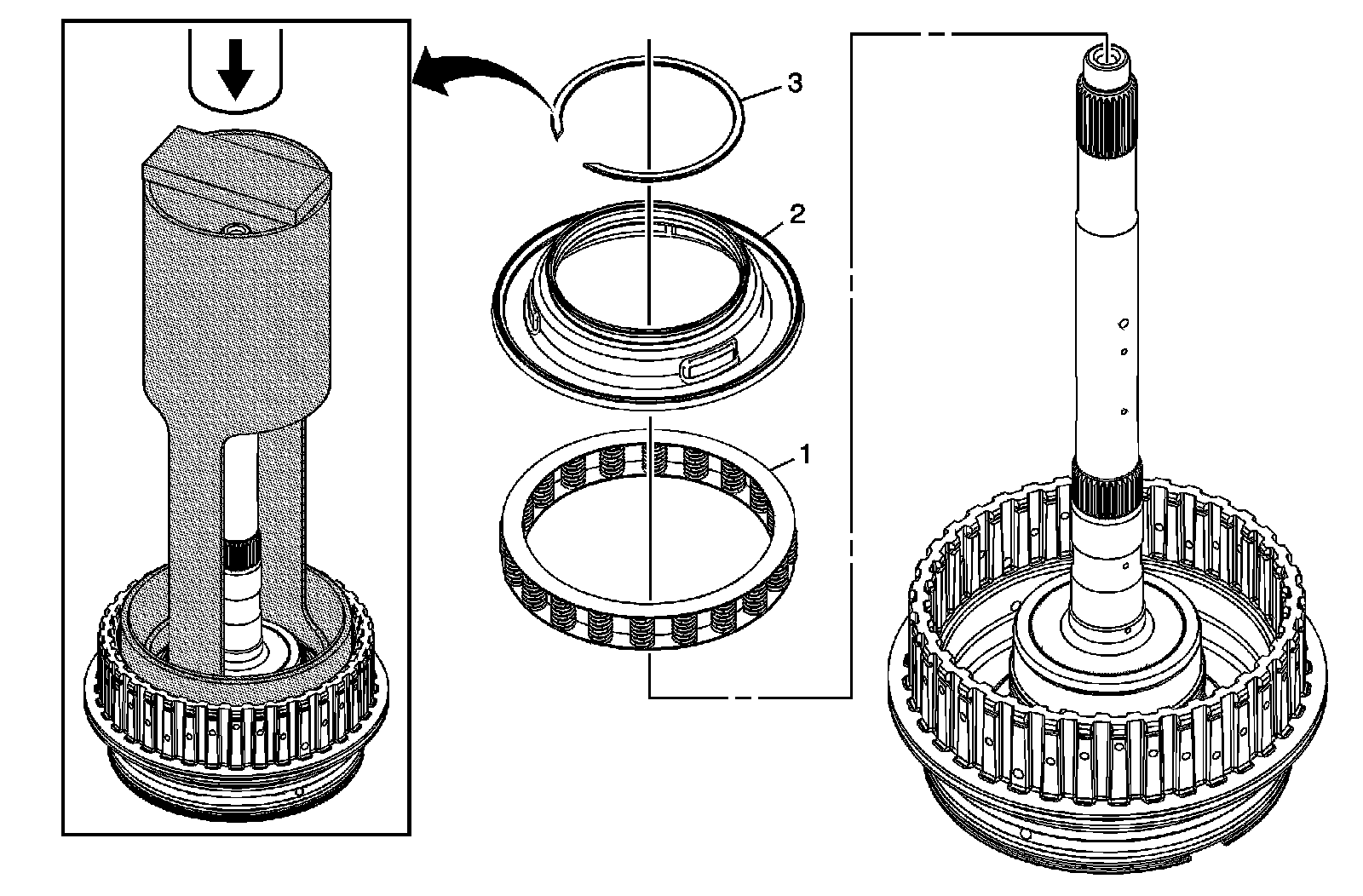

4-5-6 Clutch Dam Installation

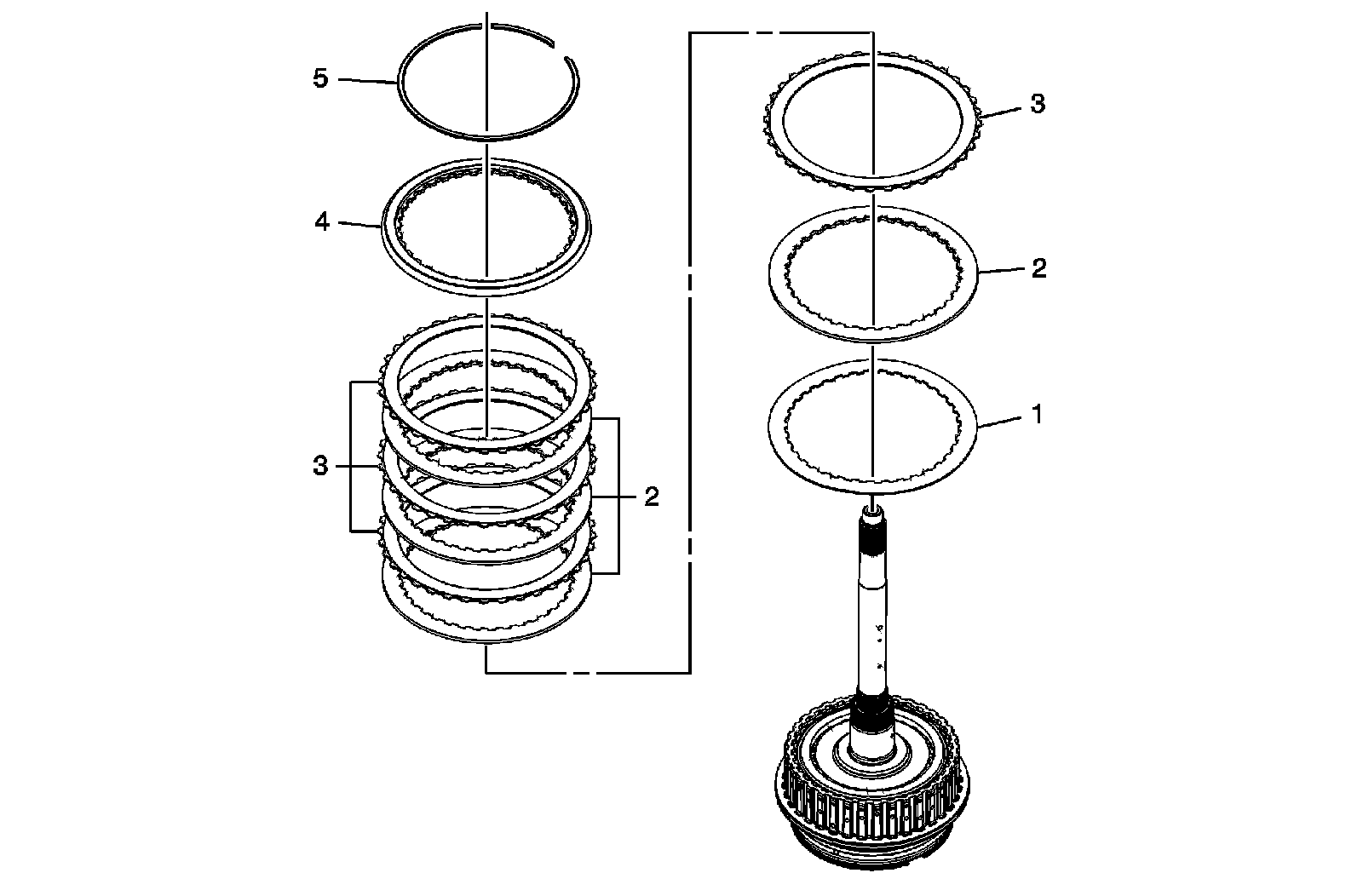

4-5-6 Clutch Plates Installation

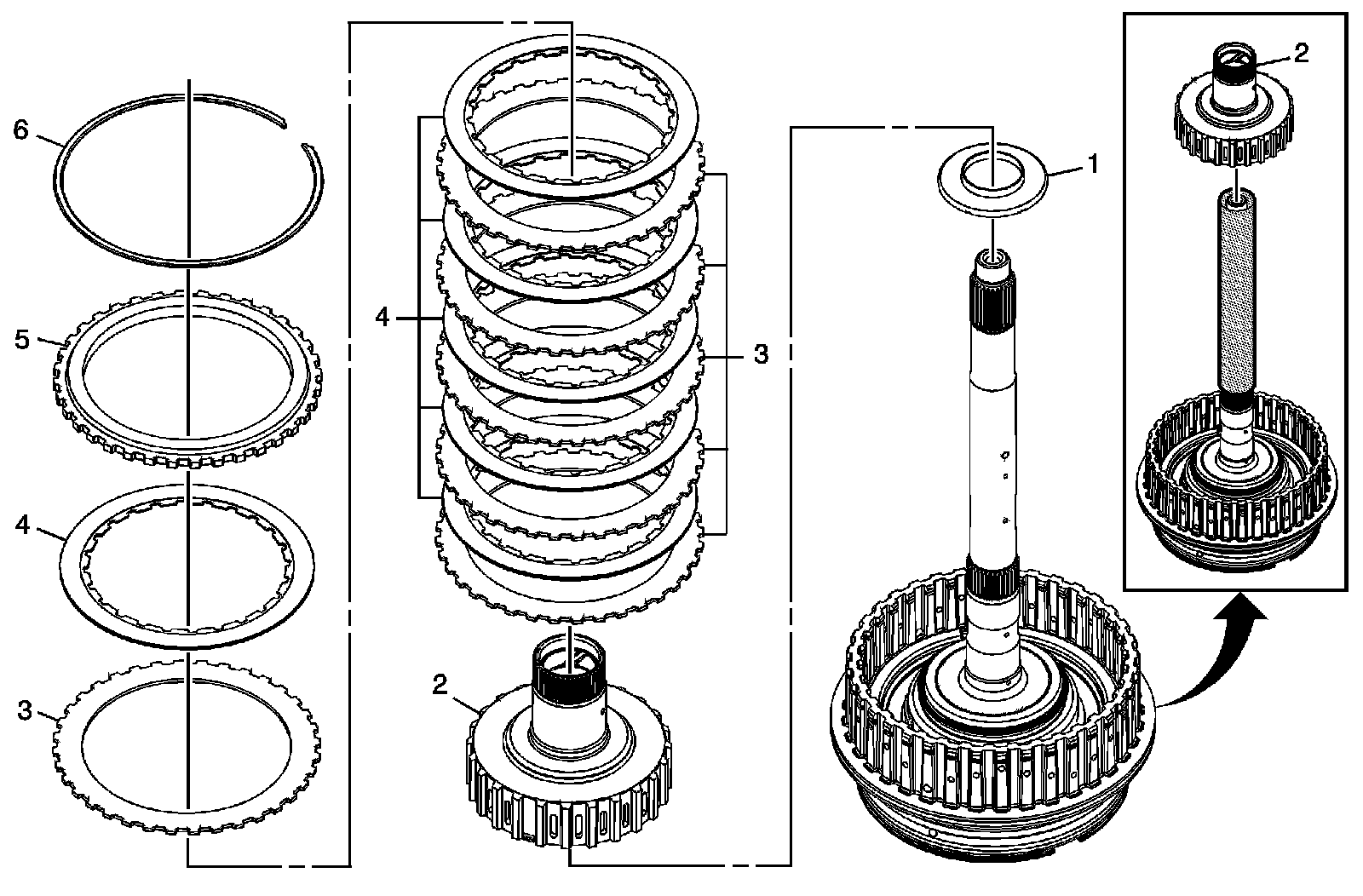

3-5 Reverse Clutch Plates Installation

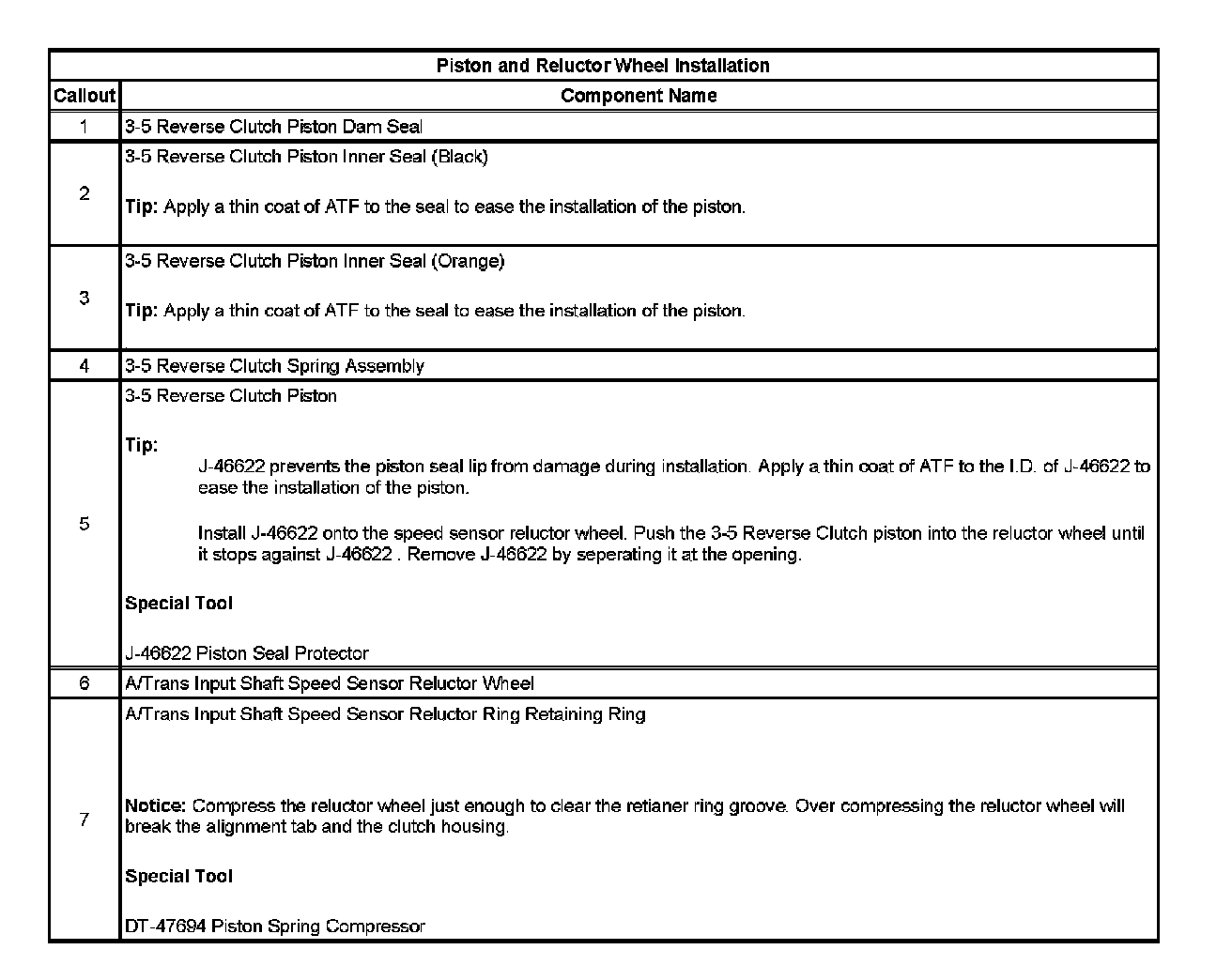

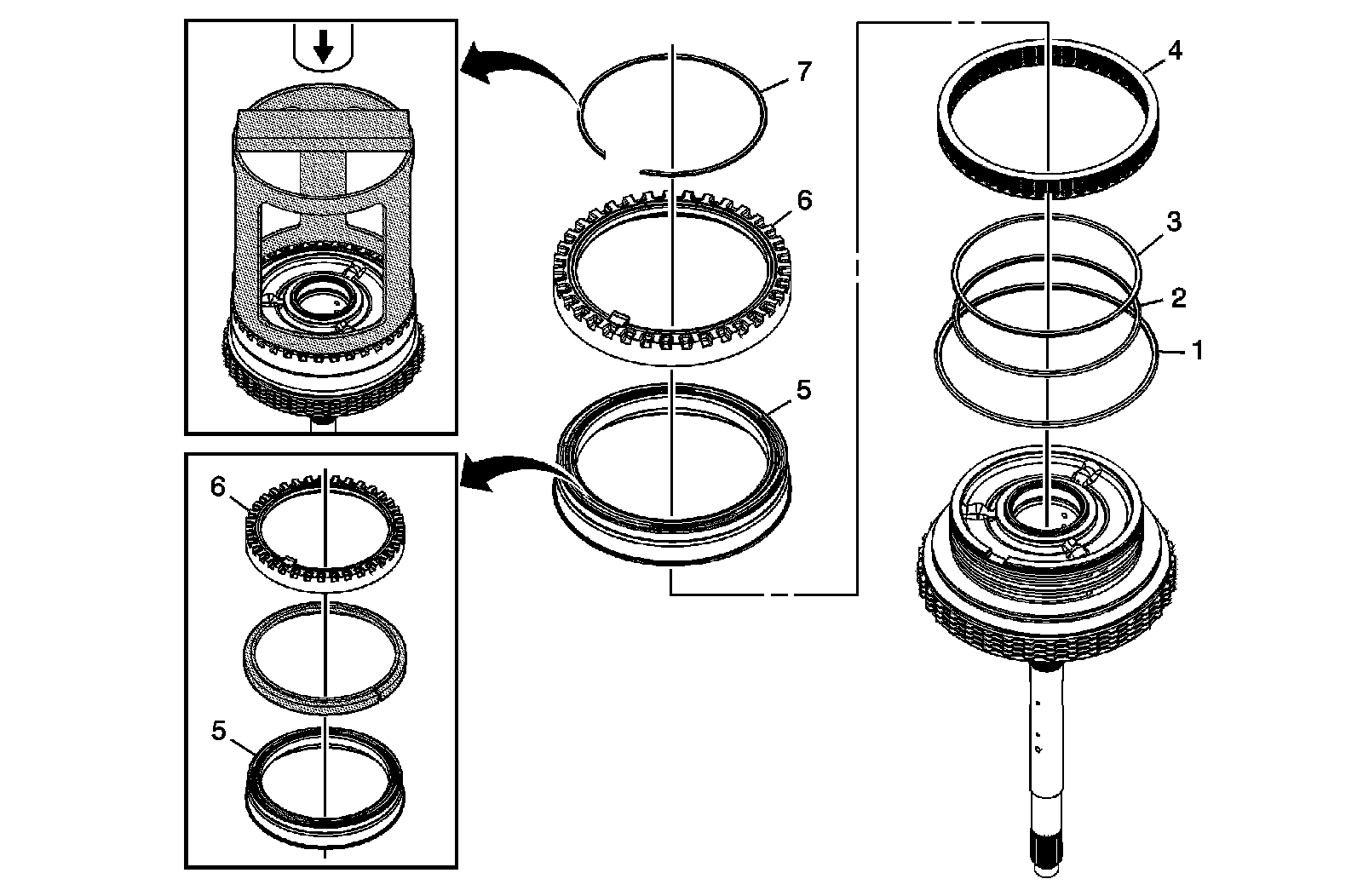

Piston and Reluctor Wheel Installation
