Body - Roof Panel Joint Finish Molding Retainer Clip
Bulletin No.: 07-08-111-1002Date: February 08, 2007
INFORMATION
Subject:
Information on Roof Panel Joint Finish (Ditch) Molding Retainer Clip
Models:
2007 GMC Acadia
2007 Saturn Outlook
This bulletin is being issued to provide dealers with information on the availability and replacement of the roof panel joint finish molding retainer clip. If the retainer clip needs replacement, use the procedure listed below. Also, until the retainer clip is available through GMSPO, it can be obtained from the GM Warranty Parts Center (WPC).
Use a plastic, flat-bladed tool to prevent damage when removing the molding.

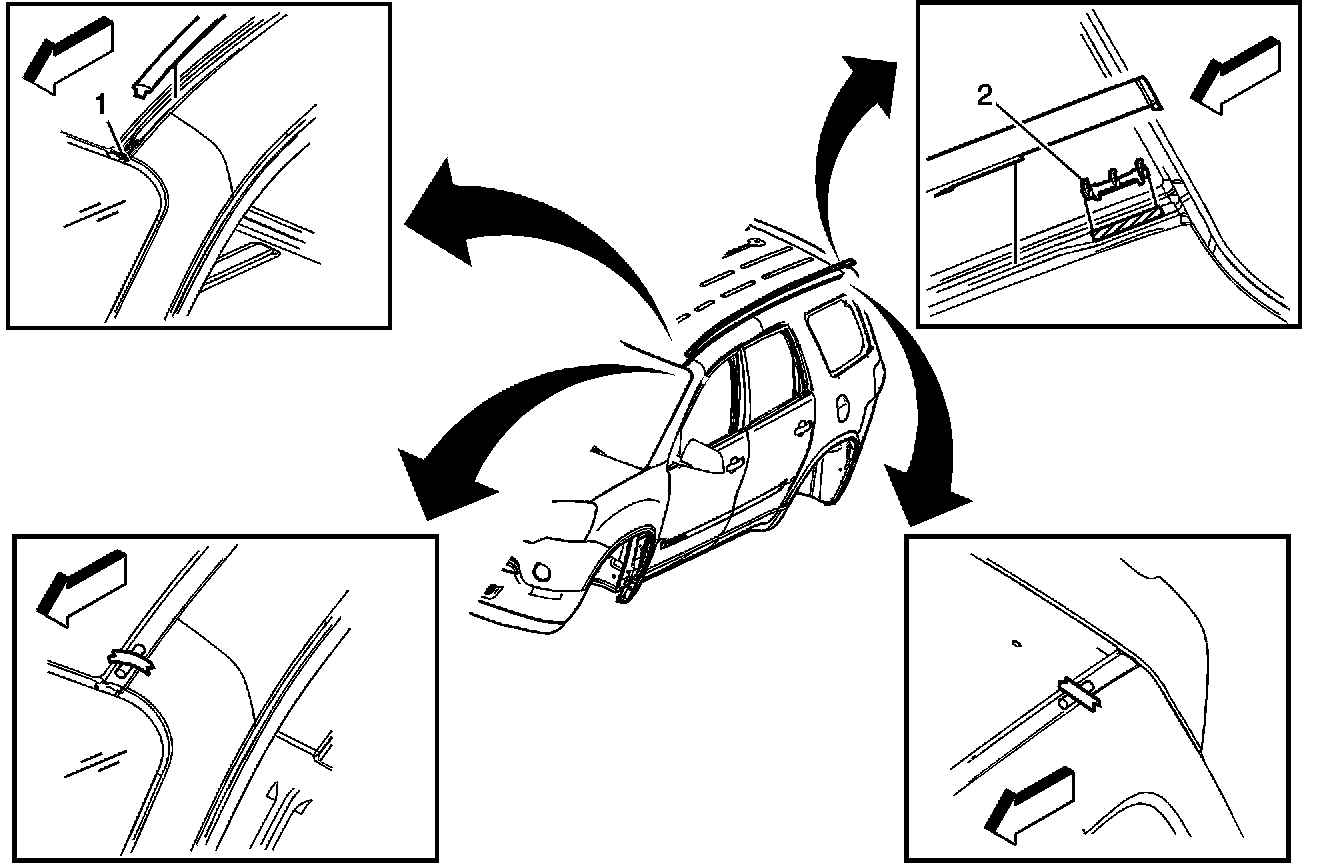

Lift the roof panel molding in order to access the retainer clip.
Carefully cut the epoxy bond at both edges of the retainer clip using a sharp tool.
Cut far enough into the epoxy in order to help release the retainer clip and not damage the painted surface of the ditch.
Protect the painted surface of the ditch using a clean towel when releasing the retainer from the ditch.
Use fine grit sand paper to scuff the bonding surface where the new retainer clip will be installed.
Wipe the surface with the alcohol solution and let the solution evaporate prior to bonding the new clip.
Position and secure the new retainer clip to the molding.
Apply adhesive, 3M Duramix(TM) Super-Fast Adhesive, or equivalent, to the underside of the retainer.
Ambient and body panel temperature should be at least 21°C (70°F) prior to bonding.
Press the ditch molding into the ditch to achieve proper positioning.
Place a small piece of wooden block, or equivalent, above the molding to gain downward pressure for proper clip position.
Apply masking tape over the wooden block and secure to the body.
Allow approximately 15 minutes to develop sufficient bond strength.
Remove the masking tape after the bonding time has elapsed.
Parts Information

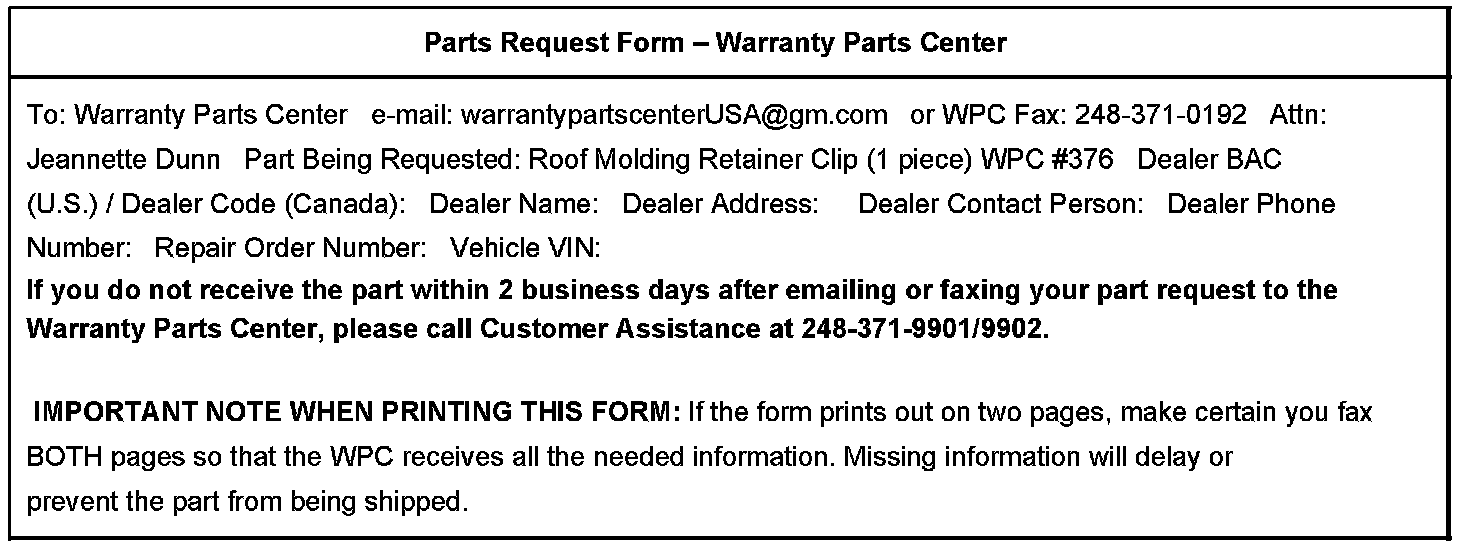

To obtain the new retainer, fax the form shown to the GM Warranty Parts Center (WPC).
Warranty Information
For vehicles repaired under warranty, use the table.
IMPORTANT NOTE WHEN PRINTING THIS FORM: If the form prints out on two pages, make certain you fax BOTH pages so that the WPC receives all the needed information. Missing information will delay or prevent the part from being shipped.
