Tire Pressure Sensor: Locations

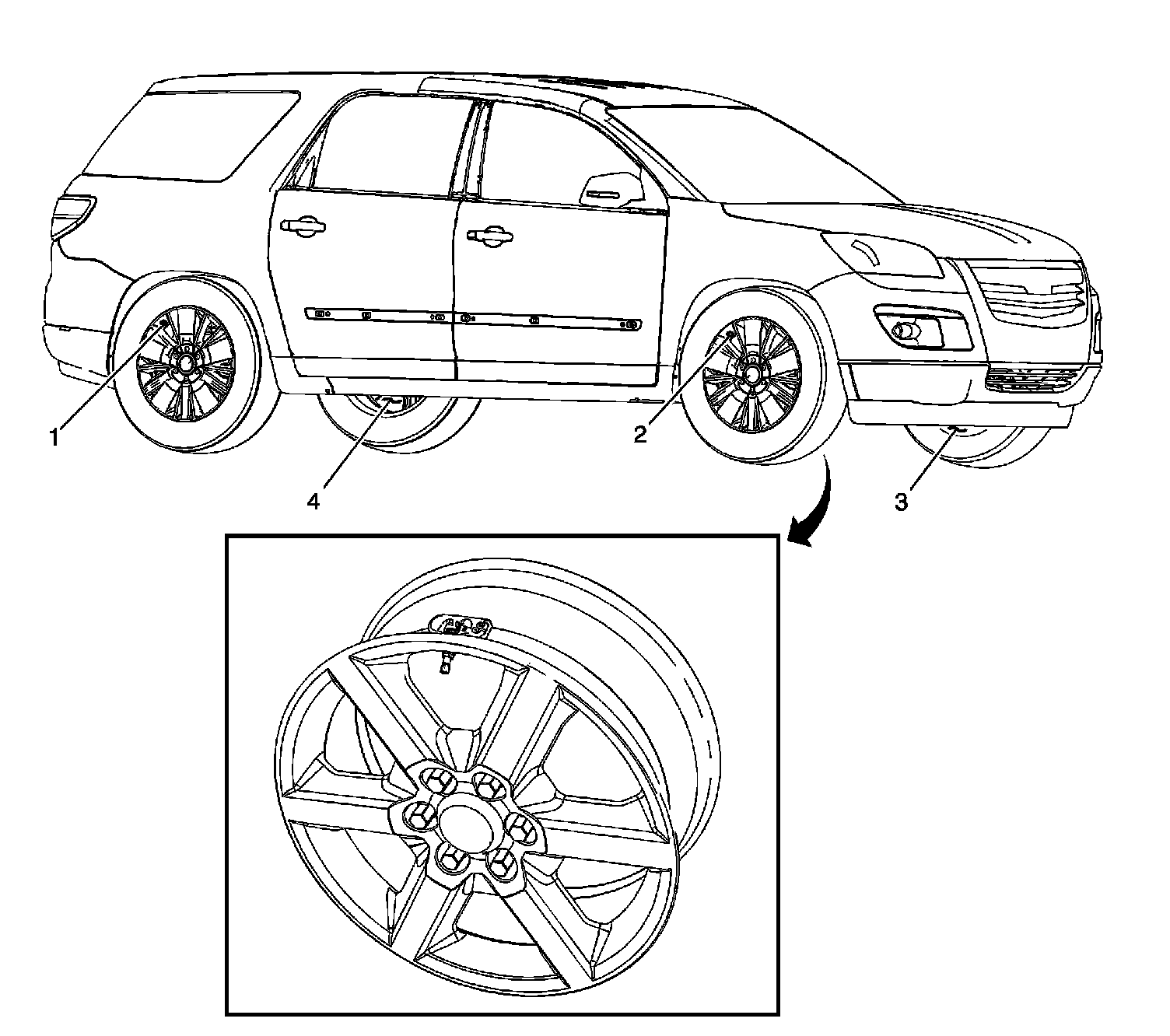

Tire Pressure Monitoring System Component Views

Tire Pressure Sensors




1 - Tire Pressure Monitor Sensor - RR
2 - Tire Pressure Monitor Sensor - RF
3 - Tire Pressure Monitor Sensor - LF
4 - Tire Pressure Monitor Sensor - LR
