Noise Diagnosis - Front Suspension

Noise Diagnosis - Front Suspension

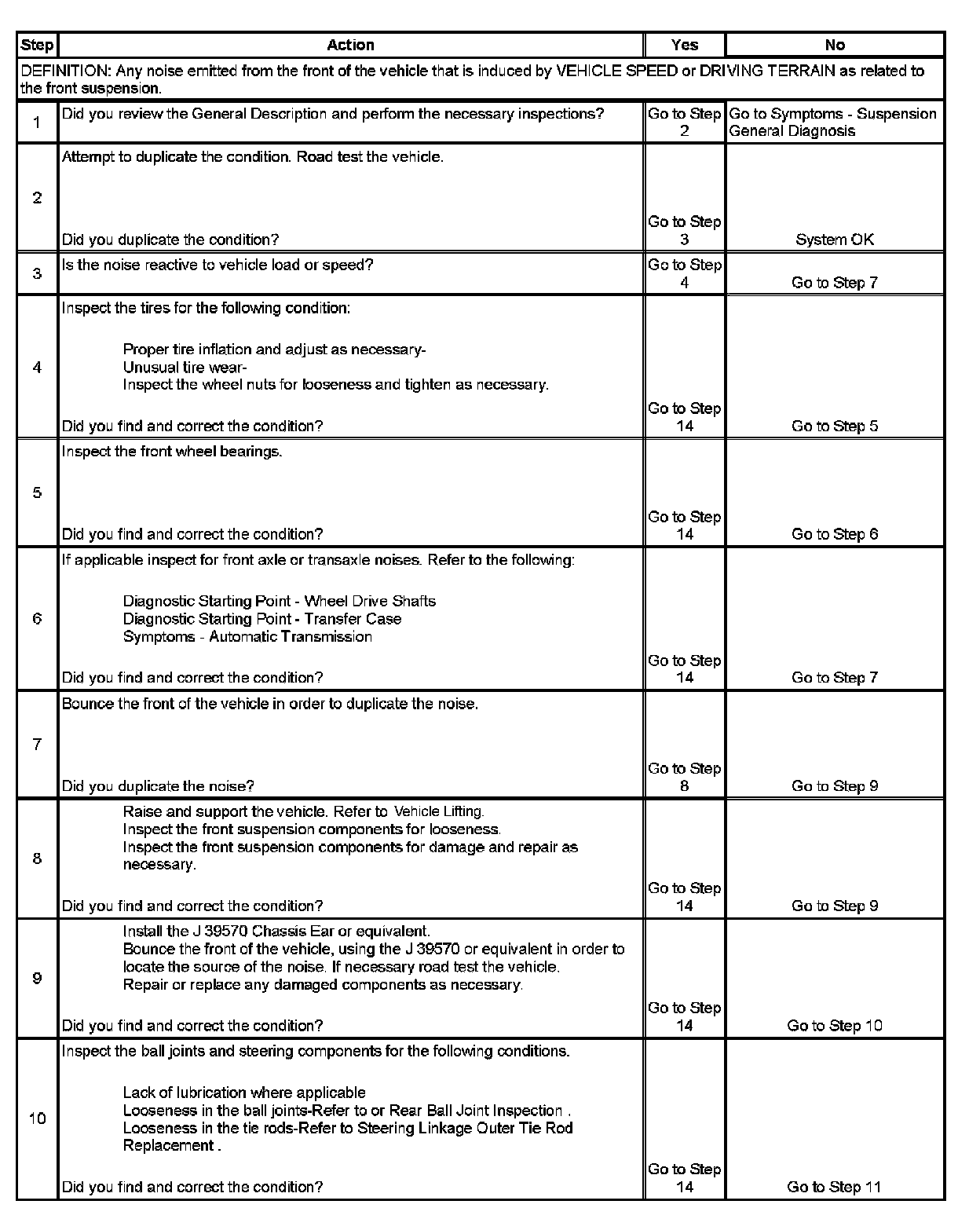

Step 1 - Step 10:

Step 11 - Step 14:
